1200 System board and base cover

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 68

v “1020 Ultrabay Slim device” on page 70

v “1030 Hard disk drive” on page 71

v “1040 DIMM (optional)” on page 73

v “1050 Keyboard” on page 75

v “1060 DIMM (standard)” on page 79

v “1070 Modem daughter card (MDC)” on page 80

v “1080 Bluetooth/Modem daughter card (BMDC)” on

page 82

v “1090 Palm rest” on page 84

v “1100 Mini PCI adapter” on page 86

v “1110 Fan assembly” on page 89

v “1120 Backup battery” on page 90

v “1130 Speaker assembly” on page 92

v “1140 PC Card slot assembly” on page 94

v “1150 Keyboard bezel” on page 96

v “1160 LCD assembly” on page 98

v “1170 CPU” on page 103

v “1180 Ultrabay Slim guide rail assembly” on page 104

v “1190 VGA and Ultrabay Slim device eject button cable”

on page 106

Important notice for handling the system board in

ThinkPad T40 series:

There are two types of system board FRU for the

ThinkPad T40 series, as follows:

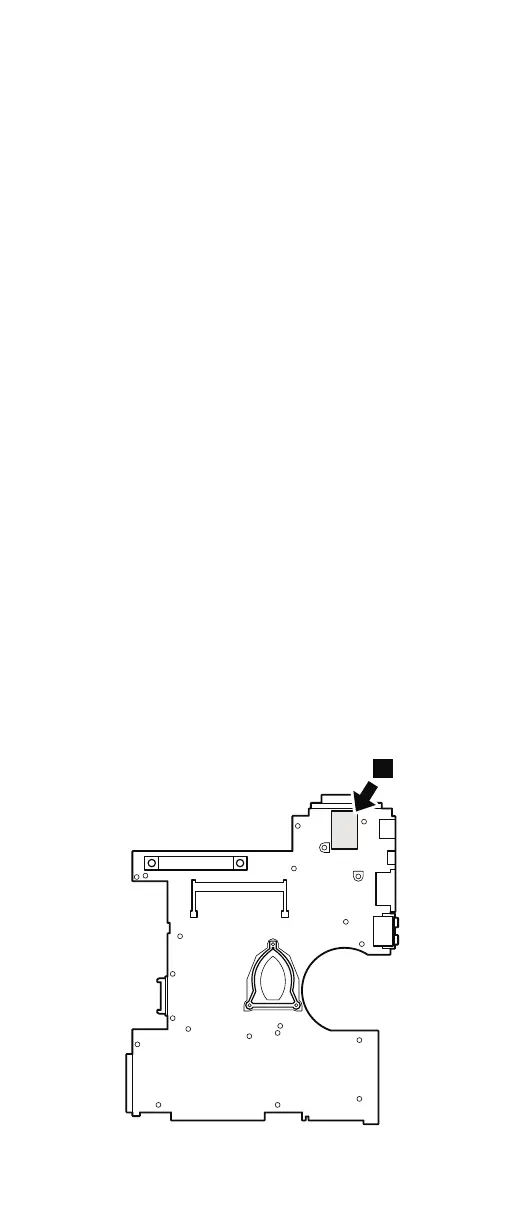

v System board with IBM security chip (bottom view)

Note: The security chip a is embedded on the

underside of the system board.

Removing and replacing a FRU

108 MT 2373/2374/2375/2376/2378/2379
