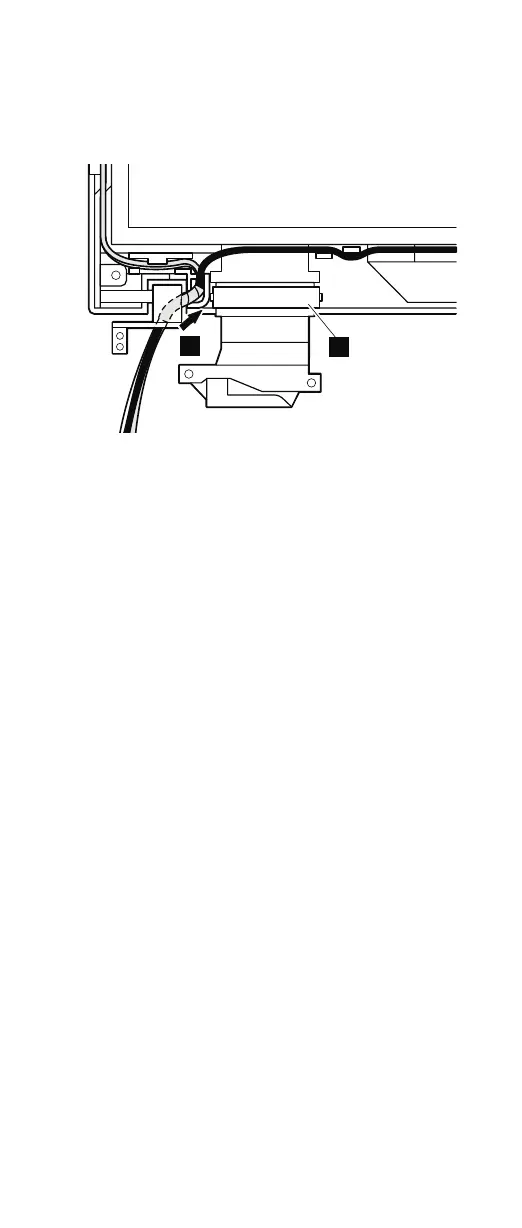

Move
the
spiral
tube
until
it
reaches
at
the
cable
guide
of
the
LCD
cover
as
in
this
figure.
Make
sure
that
the
antenna
cable
is
not
pinched
by
cable
clip
(
a
).
8
a
Removing
and
replacing
a
FRU
ThinkPad
T40,
T40p,
T41
Series
133
136
138
Table of Contents
