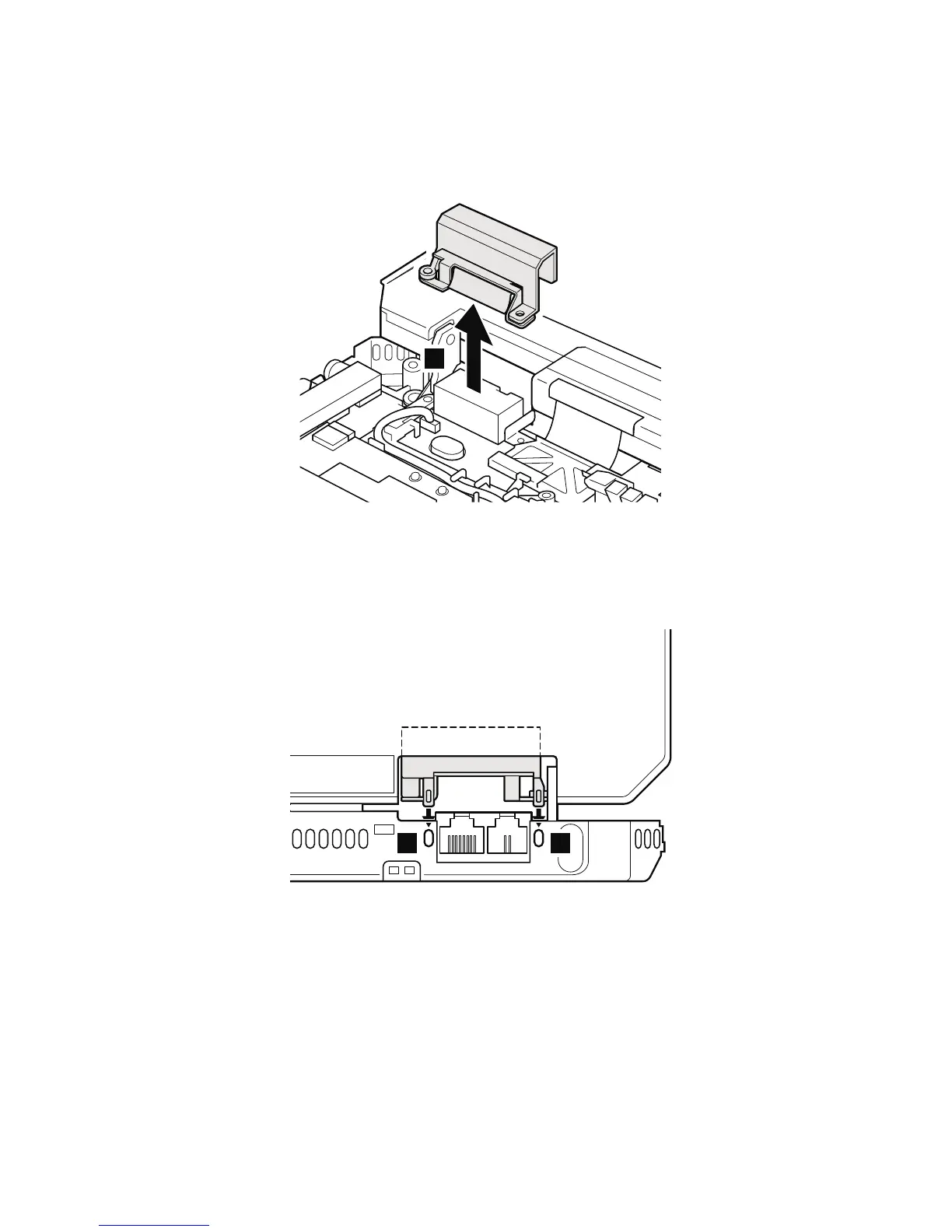

The Bluetooth antenna assembly is attached to the hinge
cover in some models. For those models, undo the
Bluetooth antenna cable from the cable guides. And then
remove the hinge cover and the Bluetooth antenna
assembly together in the direction of arrow 2.
2
When installing: Attach the hinge cover, aligning the two
projections on the rear side with the two
small square holes in the base cover.
(a)
a a
Removing and replacing a FRU
ThinkPad X30, X31 105
