1150 System board and base cover

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 71

v “1020 Hard-disk drive” on page 72

v “1030 DIMM cover” on page 74

v “1040 DIMM” on page 75

v “1050 Backup battery” on page 76

v “1060 Keyboard” on page 77

v “1070 Mini PCI adapter” on page 81

v “1080 Fan assembly” on page 89

v “1090 Communication daughter card (CDC)” on page 91

v “1100 Keyboard bezel” on page 98

v “1110 PC card slot” on page 101

v “1120 Hinge cover and LCD assembly” on page 104

v “1130 Sub card assembly” on page 108

v “1140 Speaker assembly” on page 109

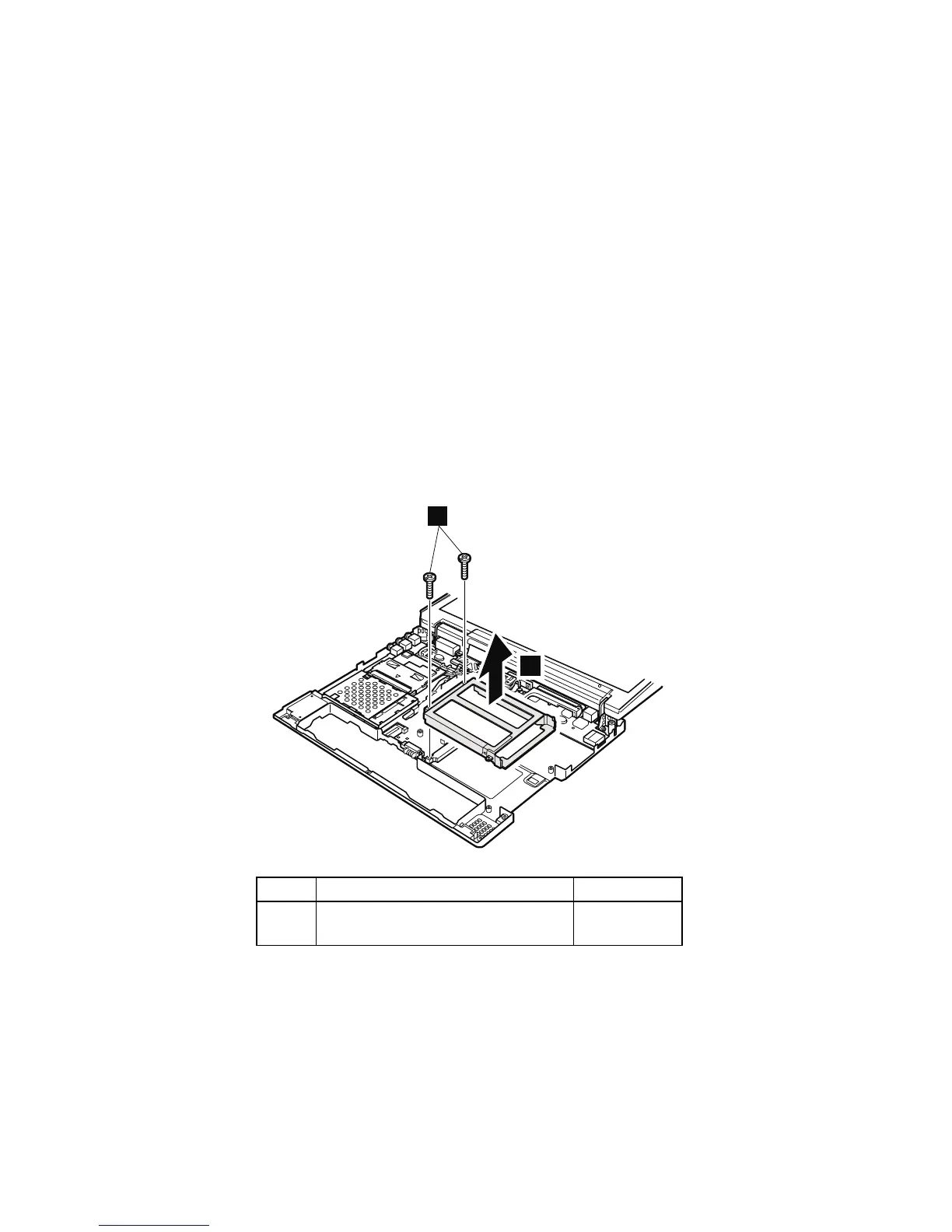

Before removing the system board, remove the hard-disk

drive holder (steps 1 and 2) and the cable guide (steps

3 to 5).

Step Screw (quantity) Torque

1 M2 × 9.5 mm, nylon-coated (2) 0.245 Nm

(2.5 kgfcm)

(continued)

Removing and replacing a FRU

112 ThinkPad X30, X31 (MT 2672/2673)
