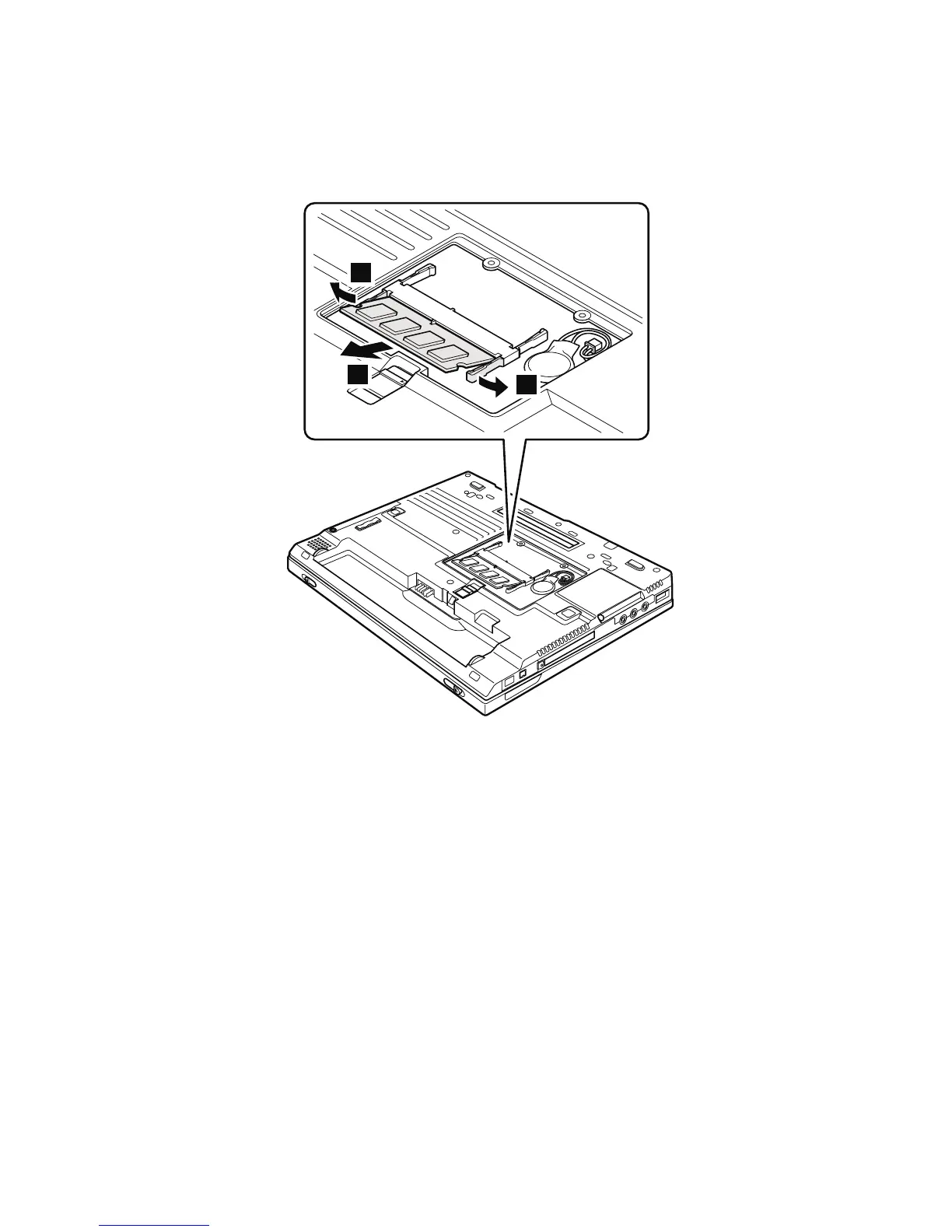

1040 DIMM
For access, remove following FRUs, in order:
v “1010 Battery pack” on page 71
v “1030 DIMM cover” on page 74
1
1
2
When installing: With the notched end of the DIMM
toward the socket, insert the DIMM into
the socket, and then press it firmly. Pivot
the DIMM until it snaps into place. Make
sure that the card is firmly fixed in the
slot and does not move easily.
Removing and replacing a FRU
ThinkPad X30, X31 75
