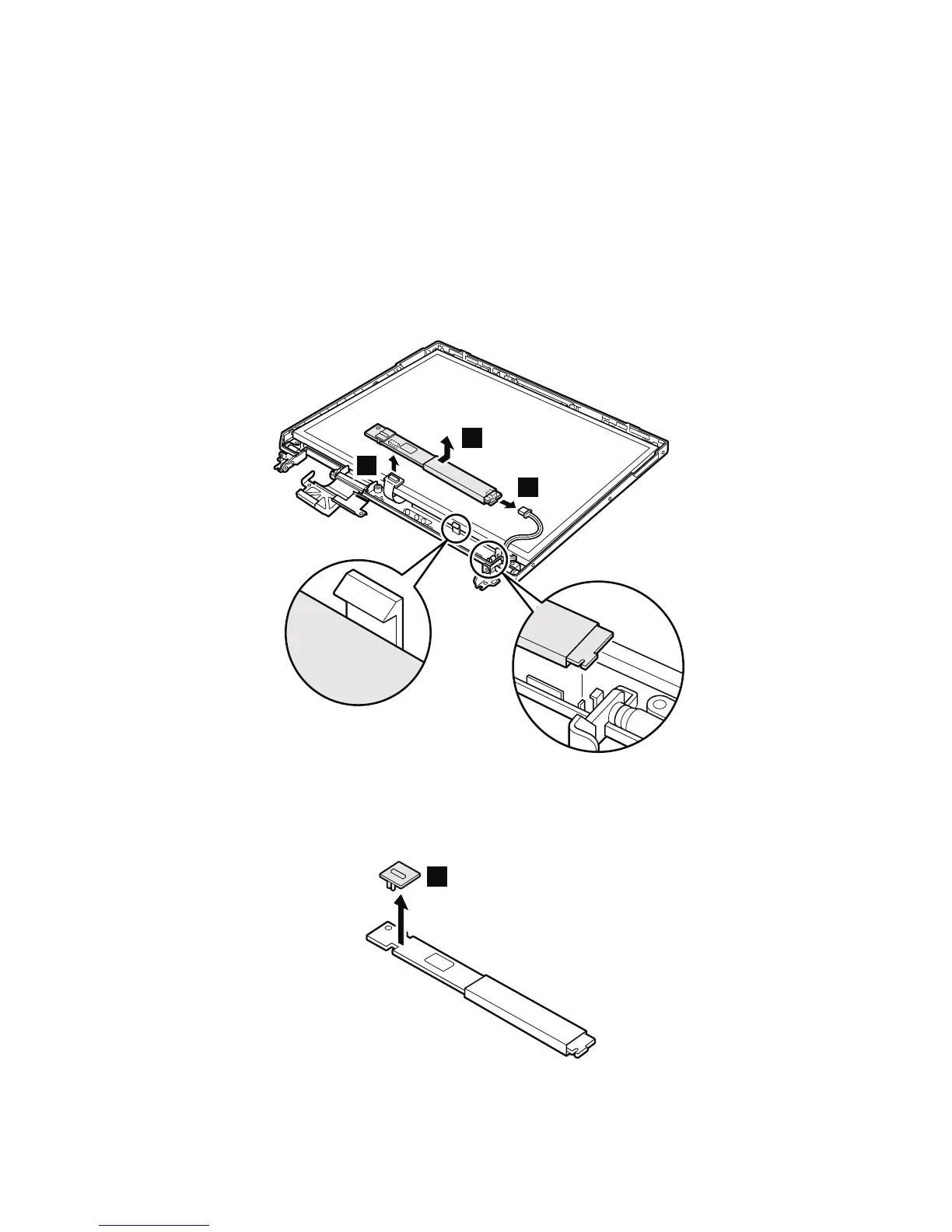

2020 Inverter card
For access, remove following FRUs, in order:
v “1010 Battery pack” on page 71
v “1020 Hard-disk drive” on page 72
v “1030 DIMM cover” on page 74
v “1040 DIMM” on page 75
v “1050 Backup battery” on page 76
v “1060 Keyboard” on page 77
v “1100 Keyboard bezel” on page 98
v “1120 Hinge cover and LCD assembly” on page 104
v “2010 LCD front bezel” on page 116
3
1
2
If the ThinkPad computer you are servicing has the
Bluetooth features, remove Bluetooth button cover 4
from the defective inverter card and keep the cover for
reuse.
4
Removing and replacing a FRU
ThinkPad X30, X31 117
