Cable routing for the 802.11b wireless LAN or
802.11a/b wireless LAN card

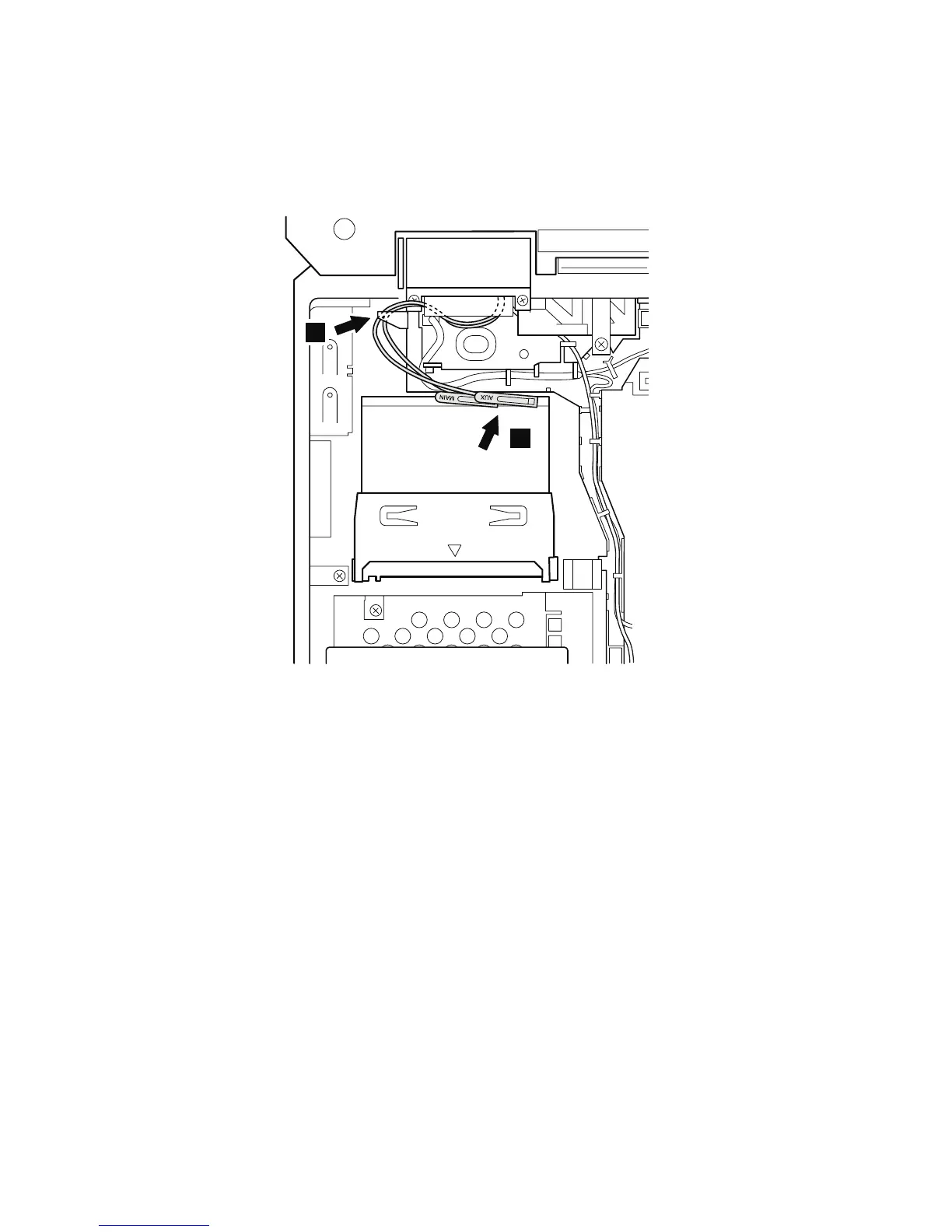

When attaching the Mini PCI adapter, route the antenna
cables to go under the cable guide as in a, and place
the tabs as indicated by arrow b in this figure.
a
b
Removing and replacing a FRU
88 ThinkPad X30, X31 (MT 2672/2673)
