IBM x3500 - System - 7977 - Installing a Memory Module

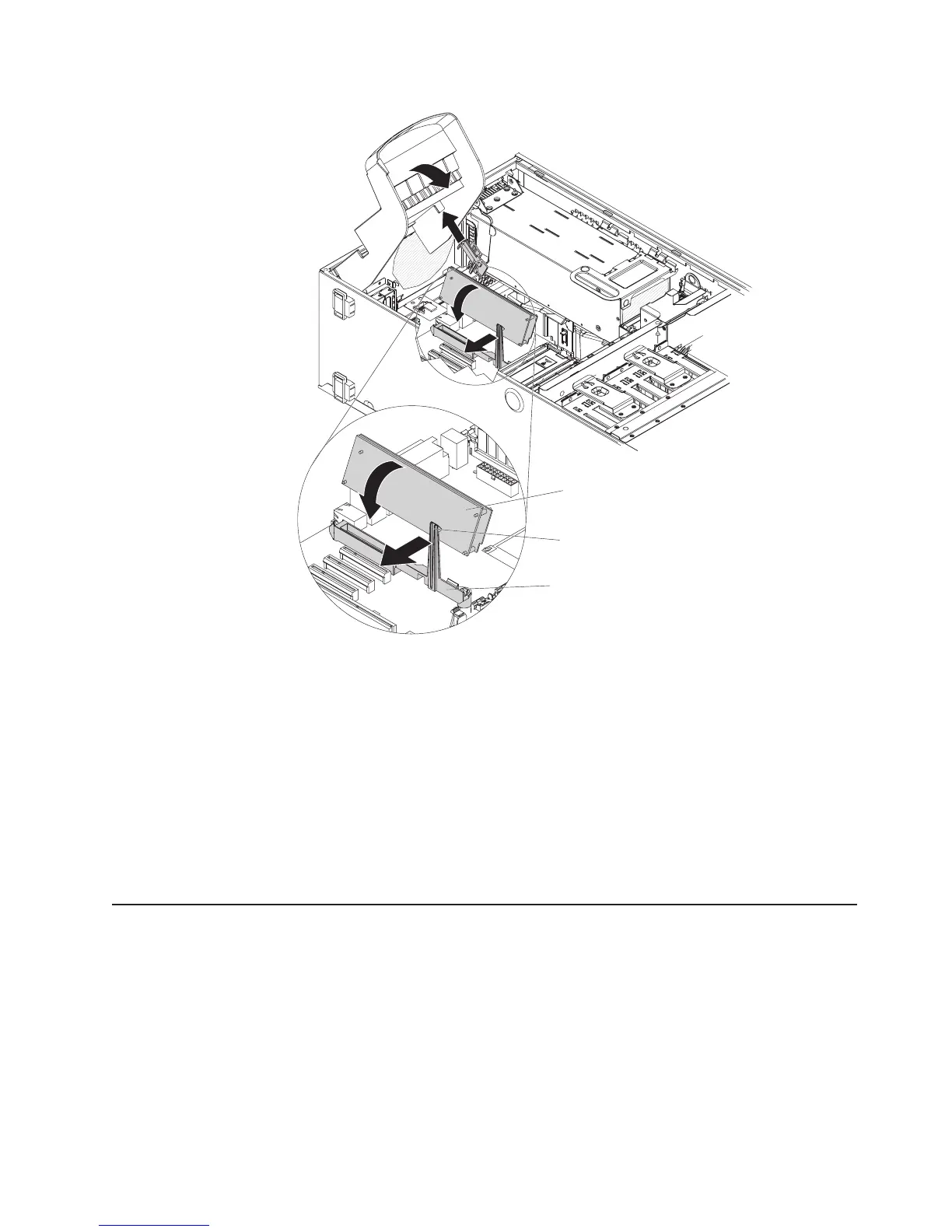

Remote Supervisor II
SlimLine adapter support bracket
Remote Supervisor II
SlimLine adapter retainer clip
Remote Supervisor II
SlimLine adapter
6. Carefully grasp the Remote Supervisor Adapter II SlimLine by its top edge or
upper corners, and align it with the Remote Supervisor Adapter II SlimLine
guide and the connector on the system board.
Attention: Incomplete insertion might cause damage to the system board or
the adapter.
7. Press the Remote Supervisor Adapter II SlimLine firmly into the connector and
under the retention clip on the Remote Supervisor Adapter II SlimLine support
bracket.
8. Close the rear adapter retention bracket.
If
you have other optional devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 46.
Installing a memory module
The following notes describe the types of dual inline memory modules (DIMMs) that
your server supports and other information that you must consider when you install
DIMMs:
v The server supports up to twelve 667 MHz, 1.8 V, 240-pin, PC2-5300
double-data-rate (DDR) II, fully buffered synchronous dynamic random-access
memory (SDRAM) with error correcting code (ECC) DIMMs. These DIMMs must
be compatible with the latest 5300 SDRAM Fully Buffered DIMM (FBD)
specification. For a list of supported optional devices for the server, see
http://www.ibm.com/servers/eserver/serverproven/compat/us/.
v At least one pair of DIMMs must be installed for the server to operate.
Chapter 2. Installing optional devices 33
