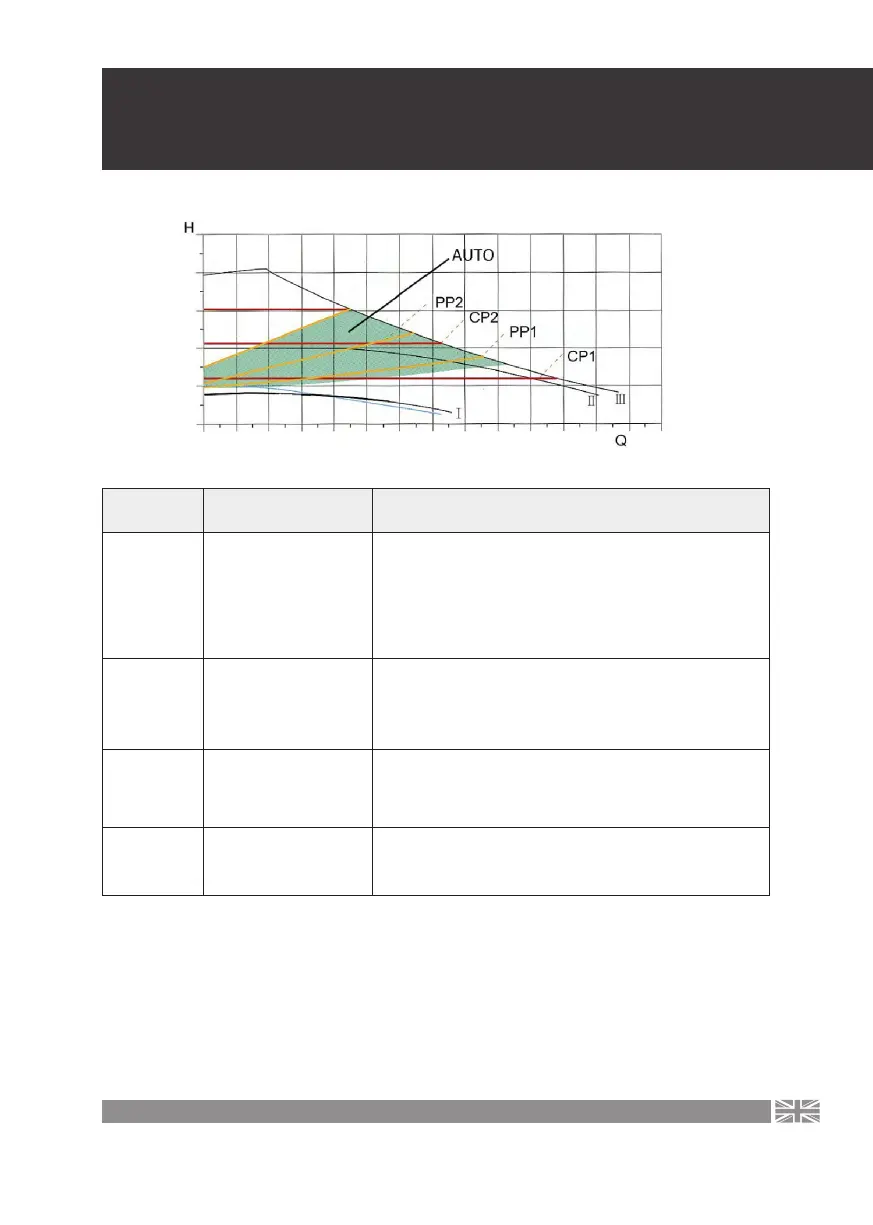

Dependency between pump settings
and its operating parameters
Setting
Pump operating
parameters curve
Function
AUTO
(factory settings)
From the highest to the
lowest curve of
proportionate pressure
characteristics
- The AUTO function controls the pump eciency automatically in
the specied range.
- It adjusts the pump eciency depending on the system size;
- It adjusts the pump eciency according to the load change for
a certain period of time;
- In the AUTO mode, the pump is set for the proportional pressure
control mode.
PP1 / PP2
Curves of proportionate
pressure
The operating point will move up and down along the
proportional pressure curve depending on the demand of the
system ow: when the ow demand decreases - the water pump
pressure drops; whereas when he energy demand increases - it
increases.
CP1 / CP2 Curves of constant pressure
The operating point of the pump moves forward and backward
o the constant pressure curve according to the system demand.
The water pump pressure remains constant, it has no relation to
the ow demand.
I / II / III
Curves of constant rotary
speed
HS (1-3), the pump is set for the maximum curve in all operating
conditions. If the pump is set in the HS3 mode, the pump will be
vented quickly.
