iC-Haus iC-TW29 - PACKAGE DIMENSIONS

preliminary preliminary
iC-TW29 26-BIT ENCODER PROCESSOR
WITH INTERPOLATION AND BiSS INTERFACE
Rev C1, Page 5/28

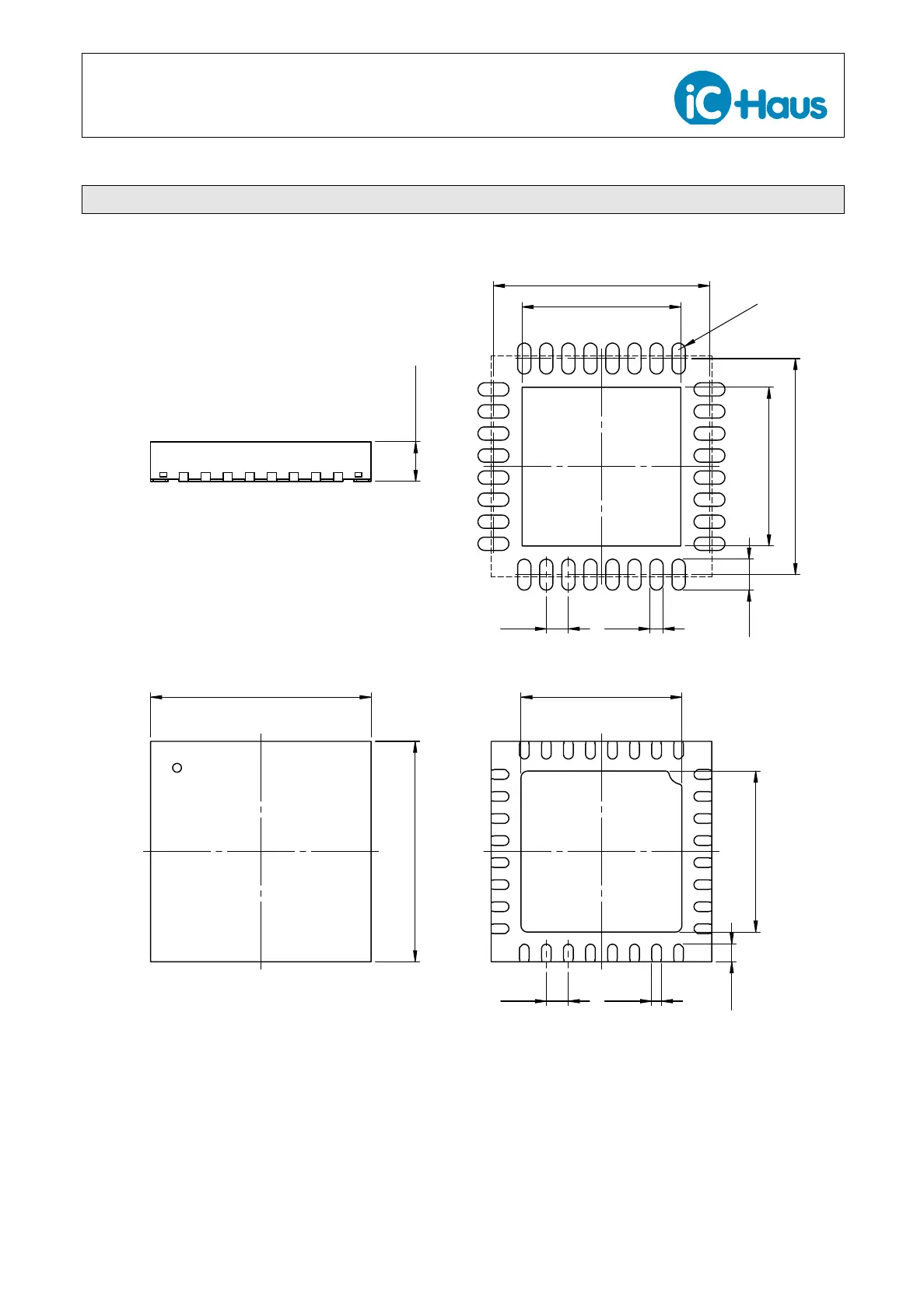

PACKAGE DIMENSIONS
5
5
TOP
0.40
3.65
3.65
0.22 0.50
BOTTOM
0.90
±0.10
SIDE
R
0.15
3.60
4.90
3.60
4.90
0.30 0.50
0.70
RECOMMENDED PCB-FOOTPRINT
drb_qfn32-5x5-6_pack_1, 10:1
All dimensions given in mm.
Tolerances of form and position according to JEDEC MO-220.
