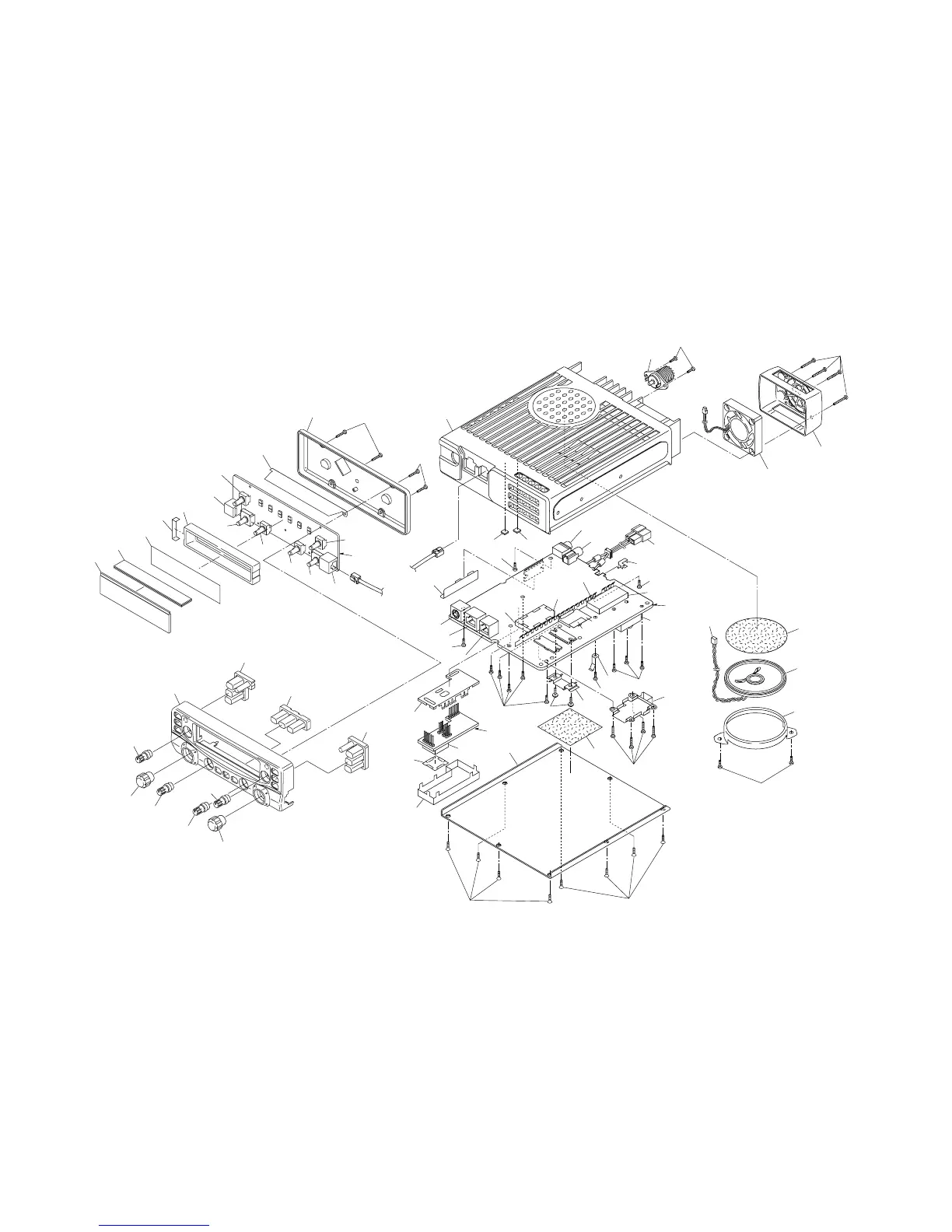

Icom IC-2720H - Page 34

6 - 2
MF1 (C)
J2004 (M)
J2005 (M)
MP4 (C)
MP11 (C)
MP9 (C)
J1 (C)
W2 (M)
MP5 (M)
MP12 (C)
MP13 (C)
MP1 (C)
MP11 (CT)
MP2 (CT)
MP11 (CT)
MP10 (CT)
R3 (CT)
R1 (CT)
J2 (CT)
S1 (CT)
R5 (CT)
R7 (CT)
S2 (CT)
J1 (CT)
MP3 (CT)
MP13 (CT)
MP9 (CT)
MP7 (CT)
MP6 (CT)
MP8 (CT)
EP15 (CT)
DS19 (CT)
CONTROL
UNIT
VCO UNIT
MAIN UNIT
MP1 (CT)
MP5 (CT)
MP4 (CT)
MP5 (CT)
MP5 (CT)
MP5 (CT)
MP4 (CT)
MP15 (C)
MP2 (C)
J2003 (M)
J2001 (M)
J2006 (M)
MP4 (V)
MP3 (V)
MP1 (V)
MP2 (V)
MP19 (C)
MP12 (M)
MP7 (C)
MP7 (C)
MP17 (C)
MP4 (M)
MP10 (C)
MP18 (C)
MP6 (M)
MP8 (M)
MP9 (M)
MP10 (M)
MP3 (M)
MP11 (M)
MP2 (M)
MP5 (C)
WS1 (C)
SP1 (C)
MP3 (C)
MP16 (C)
Unit abbreviations (C) : CHASSIS PARTS
(M) : MAIN UNIT
(CT) : CONTROL UNIT
(V) : VCO UNIT
MP8 (C)
MP8 (C)
MP8 (C)
MP8 (C)
MP8 (C)
MP8 (C)
