Icom IC-2720H - Mechanical Parts and Disassembly

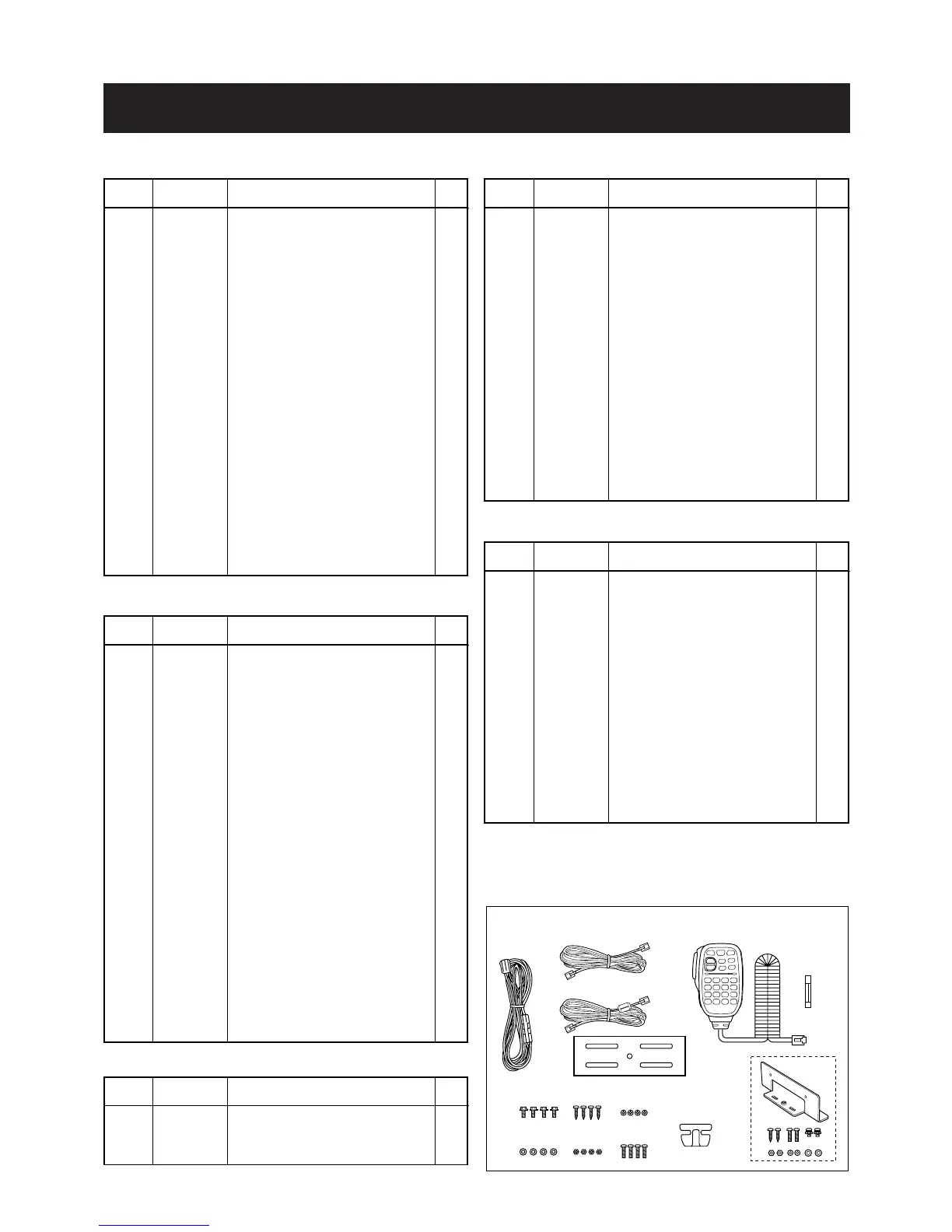

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY
6 - 1
J1 6510004880 Connector MR-DS-E 01 1
SP1 2510001160 Speaker 057P0802 1
MF1 2710000730 Fan AD0412HB-G70 (TS) 1
MP1 8010018850 2493 chassis 1
MP2 8110007720 2493 cover 1
MP3 8930057750 2493 SP holder 1
MP4 8110005750 1729 fan cover 1
MP5 8930044761 2055 SP net-1 1
MP7 8810009610 Screw FH M2.6 × 6 ZK 8
MP8 8810008660 Screw PH BT M3 × 8 NI-ZU 12
MP9 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP10 8810008490 Setscrew H M2.6 × 8 NI 2
MP11 8810009110 Screw PH M2.6 × 16 ZK 4
MP12 8930054560 Thermally sheet (T) 1
MP13 8930054560 Thermally sheet (T) 1
MP15 8930057800 2493 clip 1
MP16 8810008660 Screw BT M3 × 8 NI-ZU 2
MP17 8810009130 Screw BT M3 × 12 NI-ZU 4
MP18 8930058940 2493 spring 1
MP19 8930049780 Sponge (GG) 1
WS1 8600036880 SP cable 1
[CHASSIS PARTS]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
J1 6510023110 Connector 3008L-8P8C 1
J2 6510023170 Connector 3008L-6P6C 1
R1 7210002920 Variable resistor EVU-F2AF20B55 1
R3 7210002920 Variable resistor EVU-F2AF20B55 1
R5 7210002920 Variable resistor EVU-F2AF20B55 1
R7 7210002920 Variable resistor EVU-F2AF20B55 1
DS19 5030002210 LCD L1-0500TAM 1
S1 2250000460 Encoder EVQ-VENF0224B 1
S2 2250000460 Encoder EVQ-VENF0224B 1
EP15 8930057510 LCD contact SRCN-2493-SP-N-W 1
MP1 8210018540 2493 front panel 1
MP2 8210018550 2493 rear panel 1
MP3 8210018560 2493 reflector 1
MP4 8610011160 Knob N289 2
MP5 8610011170 Knob N290 4
MP6 8930056990 2493 3-key 1
MP7 8930057010 2493 L-key 1
MP8 8930057000 2493 R-key 1
MP9 8930057740 2493 LCD filter 1
MP10 8930057080 2493 LCD plate 1
MP11 8810009220 Screw B0 M2 × 8 ZK 4
MP13 8930059030 Copper sheet (O) 1
[CONTROL UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
J2001 6510023110 Connector 3008L-8P8C 1
J2003 6510023160 Connector DN-508B-6 1
J2004 6450002220 Connector PJ-0008P-5 1
J2005 6450001440 Connector HSJ1403-01-010 1
J2006 6510023170 Connector 3008L-6P6C 1
W2 8900010980 Cable OPC-1131 1
MP1 8410002380 2399 heatsink 1
MP2 8510014760 2493 PLL case 1
MP3 8510014750 2493 PLL cover 1
MP4 8510014490 2493 shield plate 1
MP5 8930058180 2493 ANT plate 1
MP6 8510015040 2493 V-LPF case assembly 1
MP8 8510014990 2493 U-LPF case 1
MP9 8510015030 2469 PA shield plate 1
MP10 8930059040 Insulate sheet HK 1
MP11 8510015000 2493 A-shield plate 1
MP12 8510015050 2493 TR cover assembly 1
MP14 8930058500 Insulate sheet HB 4
[MAIN UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
MP1 8510013740 2372 VCO case 1
MP2 8510013750 2372 VCO cover 1
MP3 8510014800 2493 VCO case 1
MP4 8510014810 2493 VCO cover 1
[VCO UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
F1 5210000080 Fuse FGB 20A (FGB0 125V) 1
MC1 0880000980 Microphone HM-133 1
W1 8900010990 Cable OPC-1132 1
W2 8900011290 Cable OPC-1155 [USA] 1
8900011280 Cable OPC-1154 except [USA] 1
MP1 8010016381 1542 mobil bracket (B)-1 1
MP3 8820000530 Flange bolt M4 × 8 NI 4
MP4 8810000950 Screw PH A M5 × 16 4
MP5 8850000390 Spring washer M5 4
MP6 8850000150 Flat washer M5 NI BS 4
MP7 8830000120 Nut M5 4
MP8 8810000470 Screw PH M5 × 12 (+
- )4
MP9 0880001210 Bracket MB-84 1
MP11 8930007300 Mic hanger 1
[ACCESSORIES]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
Screw abbreviations BT: Self-tapping PH: Pan head
ZK: Black FT: Flat head
NI: Nickel NI-ZU: Nickel-Zinc
W1
ACCESSORIES
MP1
MC1
F1
MP4
MP7
MP5
MP6
MP3
MP8
MP11
MP9
W2 [USA]
W2 except [USA]
