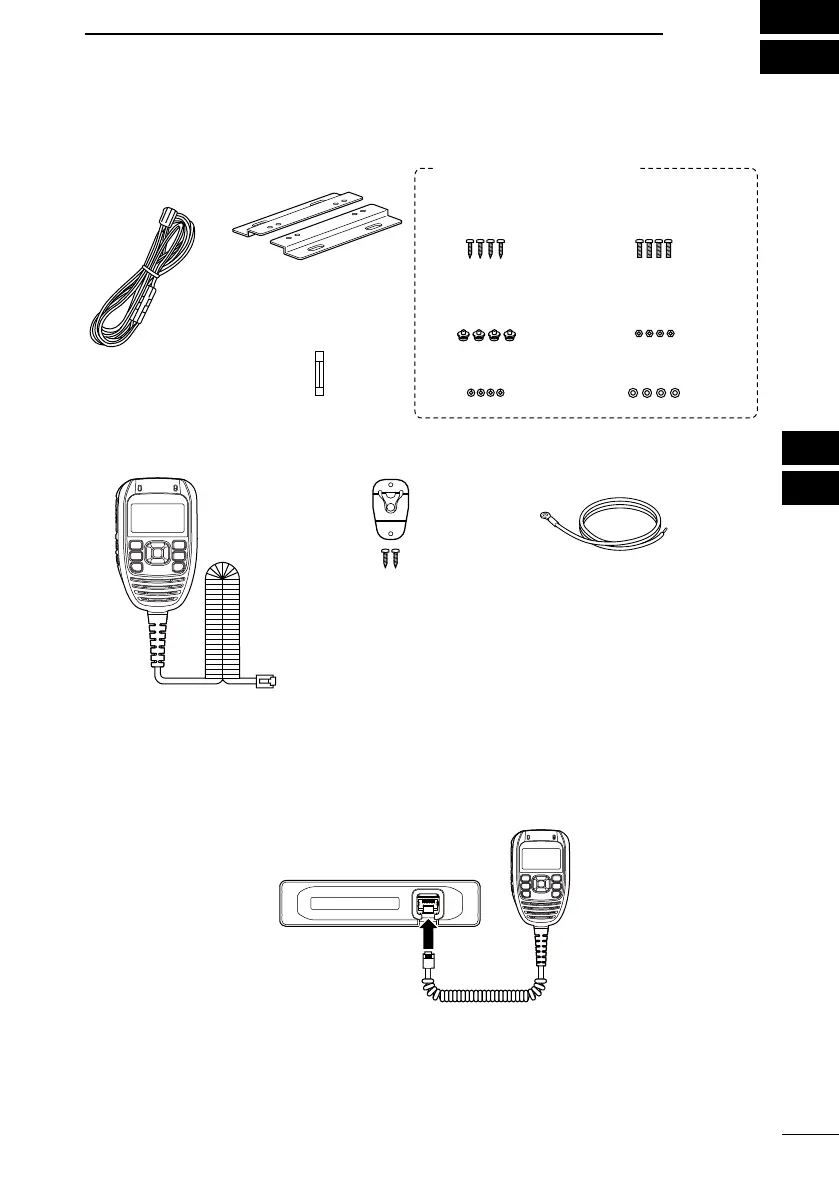

CONNECTIONS AND INSTALLATION
■ Supplied accessories
DC power cable
(approximately 3 m)
Microphone hanger cable
Mounting brackets
Screws
(5 × 12 mm)
Self-tapping screws
(5 × 20 mm)
Screws
(3 × 6 mm) Nuts (M5)
Spring washers (M5) Flat washers (M5)
For the mounting brackets
Microphone (HM-244) Microphone hanger set
Fuse (FGB 5 A)
■ Connecting the microphone
Connects to the supplied microphone as illustrated below.
L The optional extension cable is designed to not easily come out of the transceiver. Be
careful when you remove it. (p. 38)
To the microphone
connector
