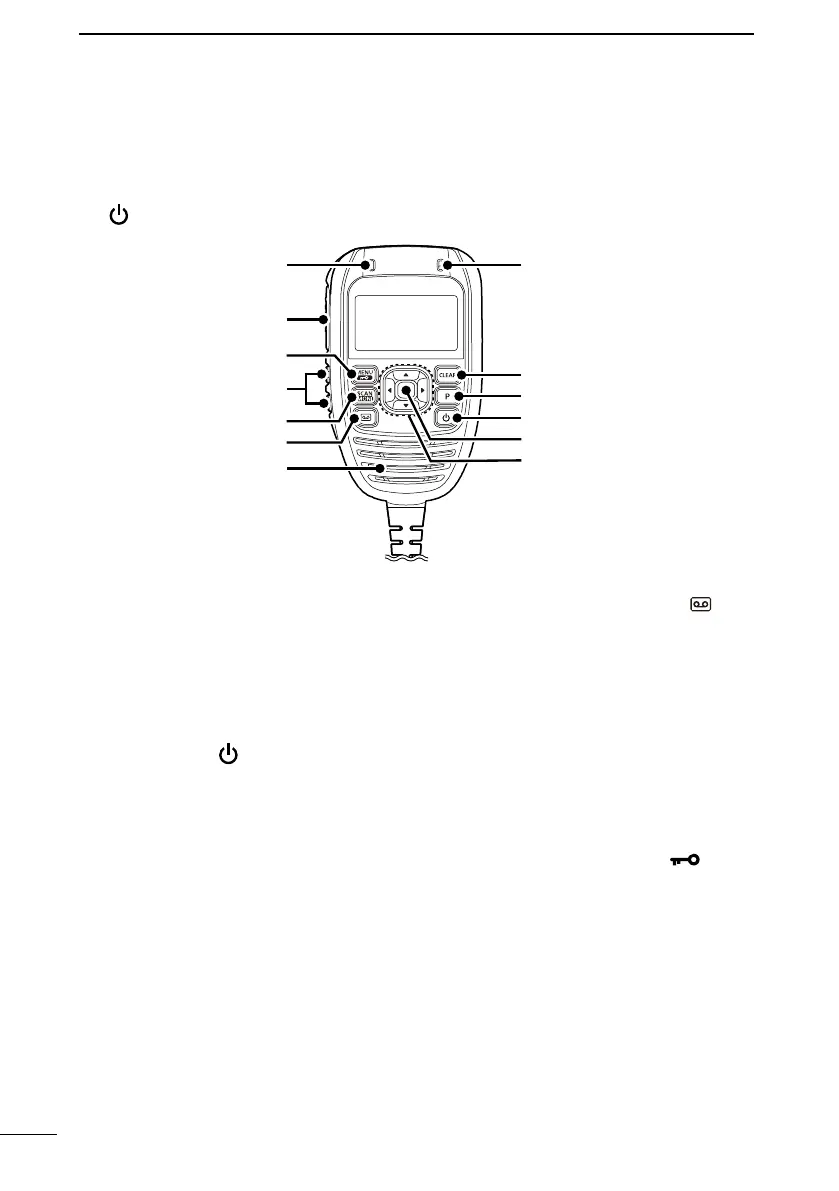

PANEL DESCRIPTION
■ Microphone
D Front panel
L Youcandisableorchangethefunctionassignedtoanykeyexcept[PTT],[+]/[–],and
[
]usingtheoptionalCS-455programmingsoftware.(p.25)


9
7
6
1
2
3
8
Microphone
Speaker
4
5
1CLEAR KEY [CLEAR]
 Pushtocancelasetting,ortoreturnto
the previous screen.
2PROGRAMMABLE KEY [P]
Push or hold down to activate the
function that is assigned using the
programming software.
3POWER KEY [
]
Hold down for 2 seconds to turn the
transceiverONorOFF.(p.4)
4ENTER KEY [ENT]
• Push to select an item or setting in the
menu.
• Push to select the Priority CH in the
standby mode.
• Hold down for 2 seconds to set or
clear the selected channel as a
Prioritychannel.(p.7)
5UP/DOWN/LEFT/RIGHT KEYS
[▲]/[▼]/[◄]/[►]
• Push[▲]/[▼]toselectanoperating
channel,menusetting,andsoon.
• Push[◄]/[►]toselectanitemor
setting,ortoreturntotheprevious
screen in the menu.
6REC DATA/REC PAUSE KEY [
]
(p. 8)
• Push to display the “Rec Data” menu.
• Hold down for 2 seconds to start or
stop recording.
7SCAN/MONI KEY [SCAN]/[MONI]
• Push to start or stop the scan.
(p.10)
• Hold down for 2 seconds to turn the
MonitorfunctionONorOFF.(p.8)
8VOLUME CONTROL KEYS [+]/[–]
Push to adjust the audio volume level.
9MENU LOCK KEY [MENU]/[
]
• Push to display the menu screen.
• Hold down for 2 seconds to turn the
LockfunctionONorOFF.(p.8)
PTT SWITCH [PTT]
 Holddowntotransmit,releaseto
receive.
TX/RX INDICATOR
 Lightsorblinks,dependingonyour
operating state.
Green:
Receiving(Thesquelchisopen.)
Red: Transmitting
