Screw abbreviations BT, B0: Self-tapping
FH: Flat head PH: Pan head
ZK: Black BS: Brass
NI: Nickel NI-ZU: Nickel-Zinc
F2
W2
W1
EP1
P1
F1
MP1
EP2
MC1
P2
6 - 2

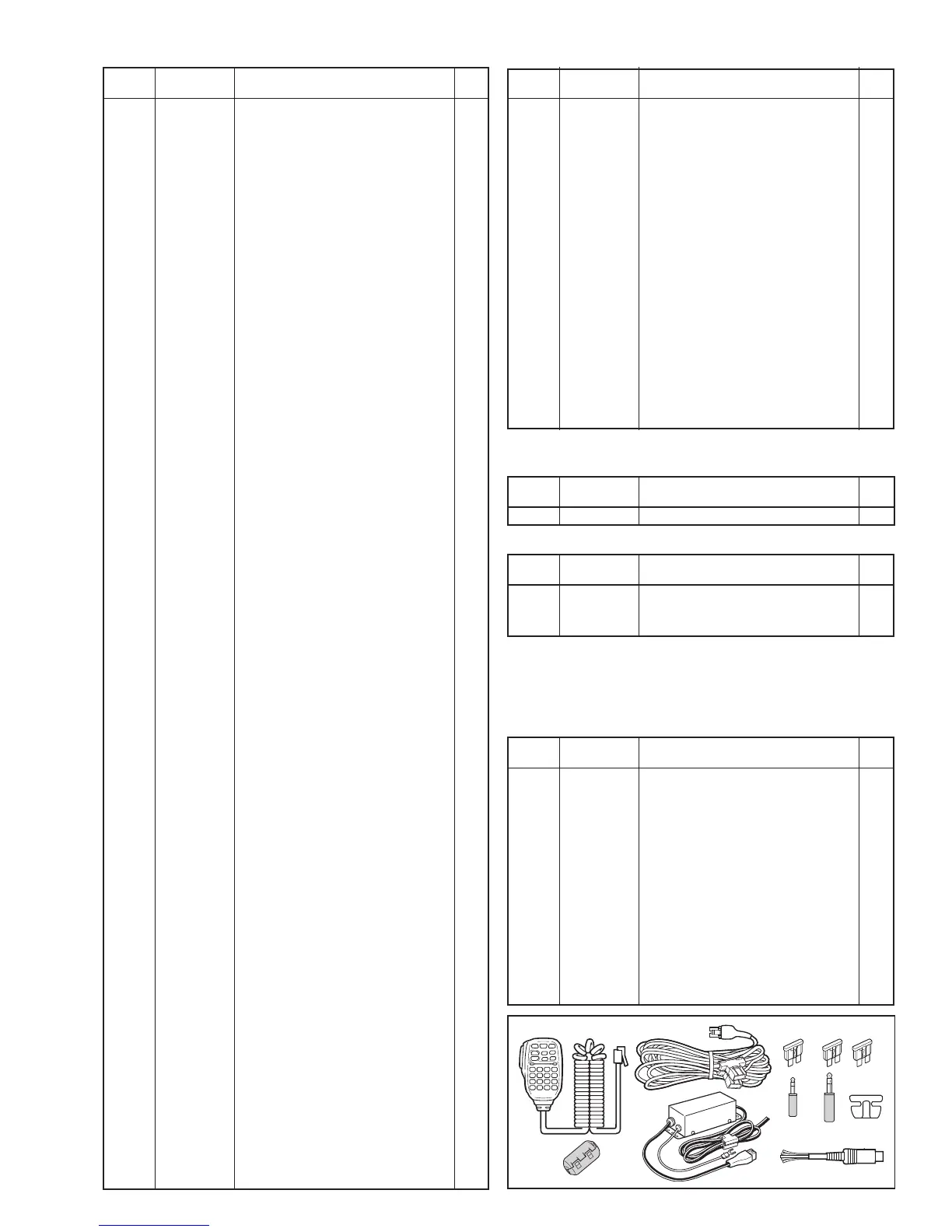

[ACCESSORIES]
P1 5610000050 Plug AP330 1
P2 5610000170 Plug AP370B 1
F1 5210000840 Fuse ATC-30 2
F2 5210000940 Fuse 1205 1
W1 8900013980 Cable OPC-1457 [USA], [EXP] only 1
W2 8900006110 Cable OPC-596 1
EP1 0880001680 Cable OPC-1457R except [USA], [EXP] 1
EP2 6910011940 Bead ZCAT2436 except [USA], [EXP] 1
MC1
Optional product
Microphone HM-151 1
MP1 8930007300 Mic hanger 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[CHASSIS PARTS]
J1 6510000370 Connector MR-DS 1
J2 6510000370 Connector MR-DS 1
W1 8600037110 SP cable 1
W3 8900015210 Cable OPC-1448A (N=28, L=60) 1
W4 8900015210 Cable OPC-1448A (N=28, L=60) 1
W5 8900015220 Cable OPC-1461A (N=30, L=40) 1
W6 8900015220 Cable OPC-1461A (N=30, L=40) 1
W7 8900013970 Cable OPC-1450 (N=10, L=53) 1
W11 8600037122 Cable SX2427 P02 × J03CH-2 M500 1
W15 8970024620 Wire 1.5D 95MM C31/C31 1
W17 8970024630 Wire 1.5D170MM C31/C31 1
SP1 2510000991 Speaker VS-C66Y0811A 1
MF1 2710000790 Fan AFB0512HB-4L50 1
EP2 9010001410 Tube 1
MP1 8010019970 2427 chassis 1
MP2 8110008491 2427 U-cover assembly -1 1
(incl: U-cover, SP net, A net, B net, etc)
MP3 8110008341 2427 L-cover-1 1
MP4 8860001370 2427 ANT lug 2
MP5 8930065990 2427 ANT plate 2
MP6 8210021781 2427 chassis panel-1 1
MP11 8930042440 1897 SP holder 1
MP13 8930002910 Rubber foot (B) 2
MP14 8810008660 Screw PH BT M3 × 8 NI-ZU 17
MP15 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP16 8810010590 Screw PH BT M3 × 20 NI-ZU 4
MP17 8810009560 Screw PH BT M2 × 6 ZK 1
MP18 8810004280 Screw PH M3 × 5 ZK 7
MP19 8810004430 Screw PH M3 × 6 ZK 4
MP20 8810009040 Setscrew H M2.6 × 10 NI 8
MP21 8810008020 Setscrew C M2.6 × 12 ZK 2
MP22 8810009610 Screw FH M2.6 × 6 ZK 16
MP23 8810009610 Screw FH M2.6 × 6 ZK 4
MP24 8810009070 Screw PH M2.6 × 8 ZK 2
MP25 8930048550 2177 clip 1
MP31 8930005790 Foot (A) 1
MP32 8930005800 Foot (B) 1
MP33 8930065980 2427 stand 1
MP35 8930065920 2427 fan holder 1
MP36 8930065930 2427 fan rubber 1
MP37 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP38 8930065910 2427 earth spring 1
MP40 8930065630 2427 fuse sheet 1
MP41 8930065910 2427 earth spring 1
MP42 8310064590 2427 plate 1
MP43 8820000530 Bolt M4 × 8 NI 1
MP44 8850000140 Flat washer M4 NI BS 1
MP45 8850001560 Washer M4 1
MP46 8930066720 2427 USB sheet 1
MP47 8930067490 2427 fan spring 1
MP48 8930067540 2427 shield tape 4
MP49 8930067740 2427 magnetic shield 1
MP50 8930067980 Shield sponge (AS) 1
MP51 8930068000 Shield sponge (AT) 1
MP52 8930068000 Shield sponge (AT) 1
MP53 8930063970 Shield sponge (AM) 1
MP54 8930063970 Shield sponge (AM) 1
MP55 8930027730 Sponge (DC) 1
MP56 8930063430 CU sheet (S) 1
MP57 8930068260 Thermally sheet (AV) 2
MP58 8930067980 Shield sponge (AS) 1
MP59 8930068390 2427 D-earth spring 1
MP60 8930068420 Sponge (IS) 1
MP61 8930068380 Sponge (IR) 1
MP62 8930032100 Sponge (DP) 2
MP63 8930069070 Shield sponge (AU) 1
MP64 8930043800 Double coated tape (S) 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[DRIVER UNIT]
MP1 8410002480 2429 PA heatsink 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[CONNECT UNIT]
W1 8900014810 Cable OPC-1579 1
MP1 8950006470 2427 A-contact base 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[PA UNIT]
F1 5220000340 Holder FHA010-03 1
F2 5210000940 Fuse 1205 1
W701 8900013900 Cable OPC-1455 1
MP201* 8930068250 2427 PA plate 1
MP251* 8930014140 Earth spring (D) 1
MP301 8860001130 2177 PA shield plate 1
MP302 8860001130 2177 PA shield plate 1
MP401 8860001360 2427 PA shield plate 1
MP402 8930014140 Earth spring (D) 1
MP403* 8930014140 Earth spring (D) 1
MP404* 8930014140 Earth spring (D) 1
MP405 8930067570 2427 A-PA spring 1
MP410 8930067290 Shield sponge (AR) 1
MP501 8510016950 2427 PA cover 1
MP502* 8930014140 Earth spring (D) 1
MP531 8930068400 2427 E-earth spring 1
MP551* 8510012150 2177 PA S-plate 1
MP871* 8930014140 Earth spring (D) 1
MP901* 8930014140 Earth spring (D) 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
*: Refer to SEC 8 BOARD LAYOUTS.
