PANEL DESCRIPTION
1-13
Controller — Rear and bottom panels
q HEADPHONE/SPEAKER JACK [PHONES/SP]
Plug in standard stereo headphones (impedance: 8
to 16 ø).
 •Outputpower:Morethan5mWwithan8ø load.
 •Whenheadphonesareconnected,theinternalspeaker,
and any external speaker, are disabled.
 •Whenthe[PHONES/SP]switch(y) on the bottom panel
is set to the SPEAKER position, an external speaker can
be used instead of headphones. This is convenient for
mobile or outdoor operation.
w ELECTRONIC KEYER JACK [ELEC-KEY]
Plug in a bug or paddle type key to use the internal
electronic keyer for CW operation. (FM sec. 4)
 •SetthekeyertypetoELEC-KEY,BUG-KEYorStraight
key in the “Keyer Type” item of the “KEYER SET” mode.
 •Whenastraightkeyisconnected,“Straightkey”mustbe
selected in the “Keyer Type” item of the “KEYER SET”
mode. (FM sec. 4)
 •Astraightkeyjackislocatedontherearpanel.See[KEY]
on pages 1-15 and 2-5.
 •Youcanreversethekeyerpaddlepolarity(dotanddash)
in
the “Paddle Polarity” item of the “KEYER SET” mode.
(
FM sec. 4)
 •Fourkeyermemorychannelsareavailableforyourcon-
venience. (FM sec. 4)
(dot)
(com)
(dash)
A standard 3.5(d) mm/
1
⁄8 inch plug
e MICROPHONE CONNECTOR [MIC]
Plug in the supplied or an optional microphone.
 •SeeFMsec.21forappropriatemicrophones.
 •Seep.1-17formicrophoneconnectorinformation.
 •TheoptionalOPC-589cablecanbeusedtoconnectan
8-pin microphone such as the SM-30 or SM-50.
 •AmicrophoneconnectorisalsoavailableontheMain
unit.
DO NOT simultaneously connect two microphones.
r MAIN UNIT CONNECTOR [MAIN UNIT]
Connects to the Main unit using with the supplied
OPC-2253 Control cable.
 •The OPC-2253 Control cableis 3.5 meter (11.5feet)
long.
DO NOT use any third party’s Ethernet cables.
t STAND
The length of the stand can be adjusted in two
steps.
 •Adjusttothelengthnot to incline back when you operate
the Front panel.
y PHONES/SPEAKER SWITCH [PHONE/SP]
Selects the [PHONES/SP] jack to connect a Head-
phones or external speaker.
u SCREW HOLE FOR STAND
Accepts the screw of a tripod stand. (Third party
product.)

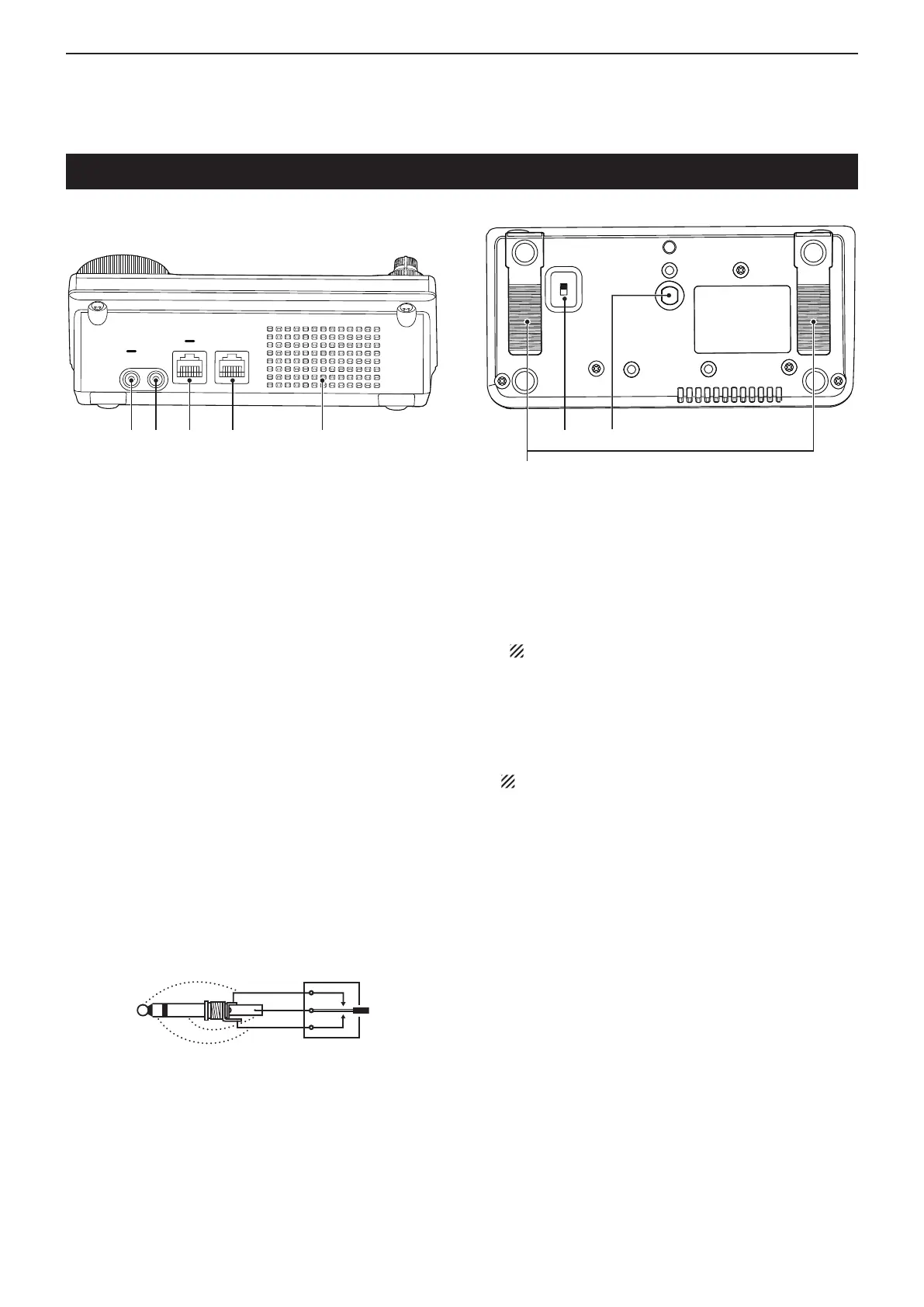

Bottom panel
Rear panel
q w e r
Speaker
t
uy
