Icom IC-7100

3
BASIC OPERATION
3-2
PBTRIT
TX / RX
PWR
AF RF/SQL
CLR
M-CH BANK
RIT
TUNER/CALL
MENU
MIC/RF PWR
NB
SPEED/PITCH
SET
QUICK
NOTCH
DR
AUTO TUNE RX
�
CS
XFC
SPEECH
MPAD
NR
P.AMP ATT
i7100
NOTE: When turning OFF the power, the transceiver
memorizes the settings. Thus the transceiver restarts
with the settings before you turned OFF the power.

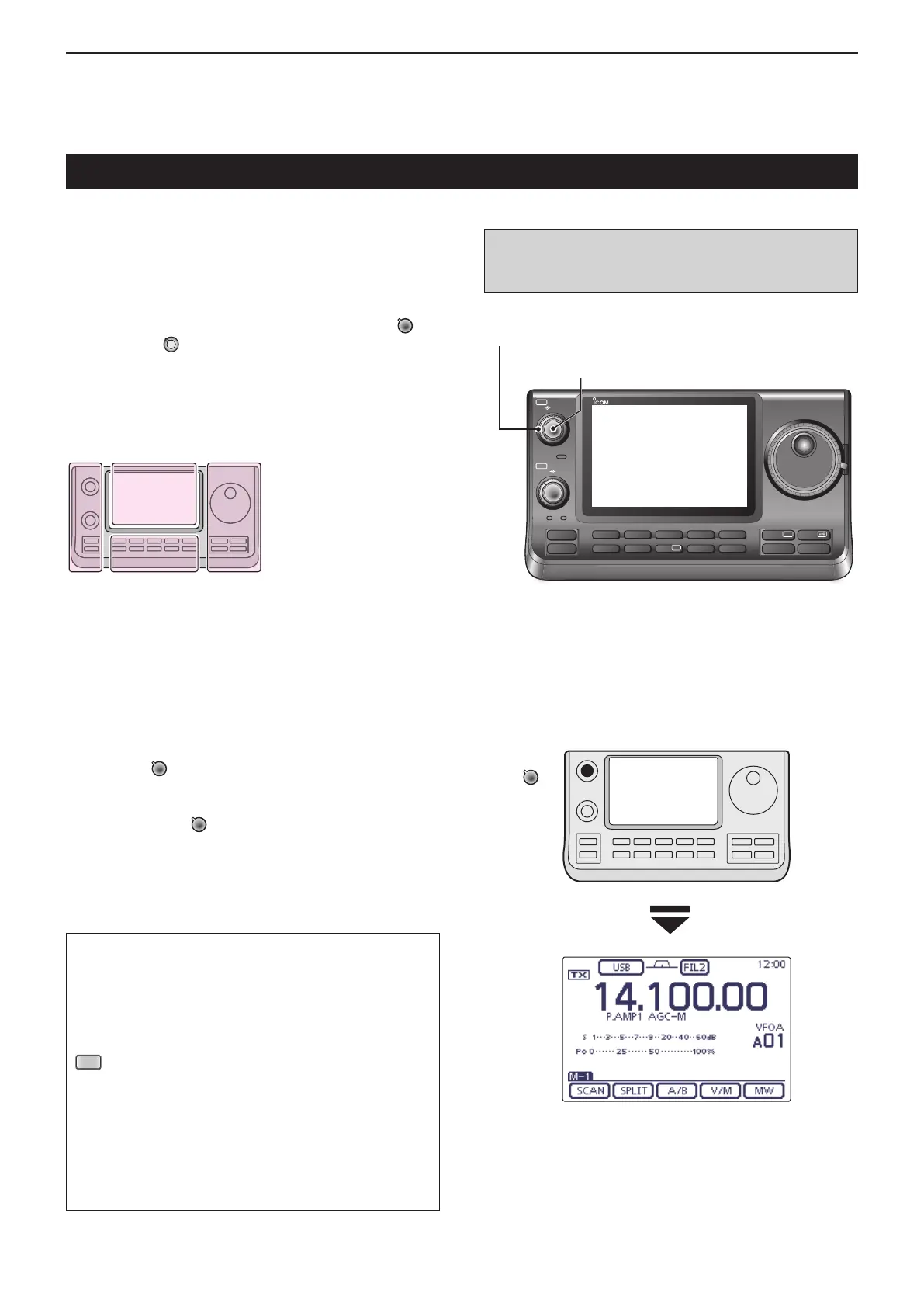

Power ON
Before rst applying power D
Before turning ON your transceiver for the first time,
make sure all connections required for your system are
complete by reviewing them in Section 2 of this man-
ual.
After all connections have been made, set the [AF]
(L)
and[RF/SQL] (L) controls as shown in the illustra-
tion to the right.
Partial Resetting
A partial resetting CLEARS the operating param-
eters and returns them to their default values (VFO
frequency, VFO settings, menu group’s contents)
without clearing certain data.
SET
(C) > Others > Reset > Partial Reset
•Duringstart-up,thetransceiverdisplays“PARTIALRE-
SET,” then its initial VFO frequencies when resetting is
complete.
See the PDF type Full Manual’s Section 19 for reset-
ting details.
Tuning ON the power D
Normal Power ON:
Push [PWR] (L) to turn ON the transceiver.
Power OFF:
Hold down [PWR] (L) for 1 second to turn OFF the
transceiver.
The L, R, C or D in the in-
structions indicate the part
of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
L
eft
R
ight
C
enter
D
isplay
[RF/SQL]control:12o'clock
[AF] control: Max counterclockwise
Initial VFO display
[PWR]
