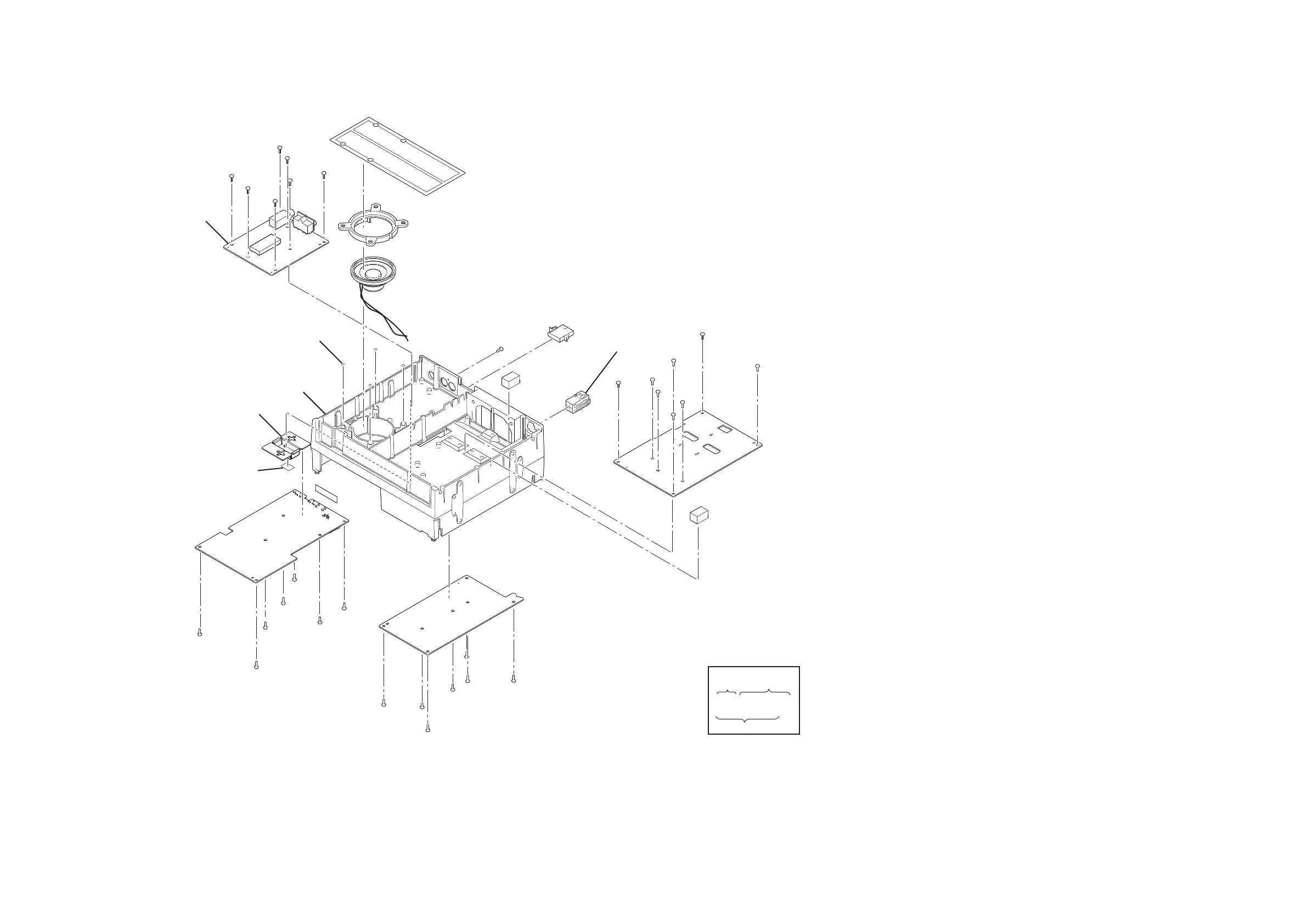

6-6
MP35(CHASSIS)
(8810008661)
MP63(CHASSIS)
(8930084330)
RF UNIT
PA UNIT
TUNER UNIT
MAIN UNIT
MP1 (CHASSIS)
(1234567890)
Ref. No.
Legend:
Unit Name
Parts No.
W16(CHASSIS)
(8600037380)
SP1(CHASSIS)
(2510002000)
W15(CHASSIS)
(8920001580)
MP4(CHASSIS)
(8930093300)
MP5(CHASSIS)
(8930093310)
MP25(CHASSIS)×7
(8810008661)
MP26(CHASSIS)×8
(8810008661)
MP63(CHASSIS)
(8930084330)
MP1(CHASSIS)
(8010023570)
MP51(CHASSIS)
(8410002951)
MP52(CHASSIS)
(8930090910)
MP24(CHASSIS)×7
(8810008661)
MP27(CHASSIS)×7
(8810008661)
MP58(CHASSIS)×4
(8850003650)
W1(PA)
(Refer to the parts list)
• CHASSIS
