Icom IC-735 - Adjustment Locations; Main Unit Side

Minimum Maximum

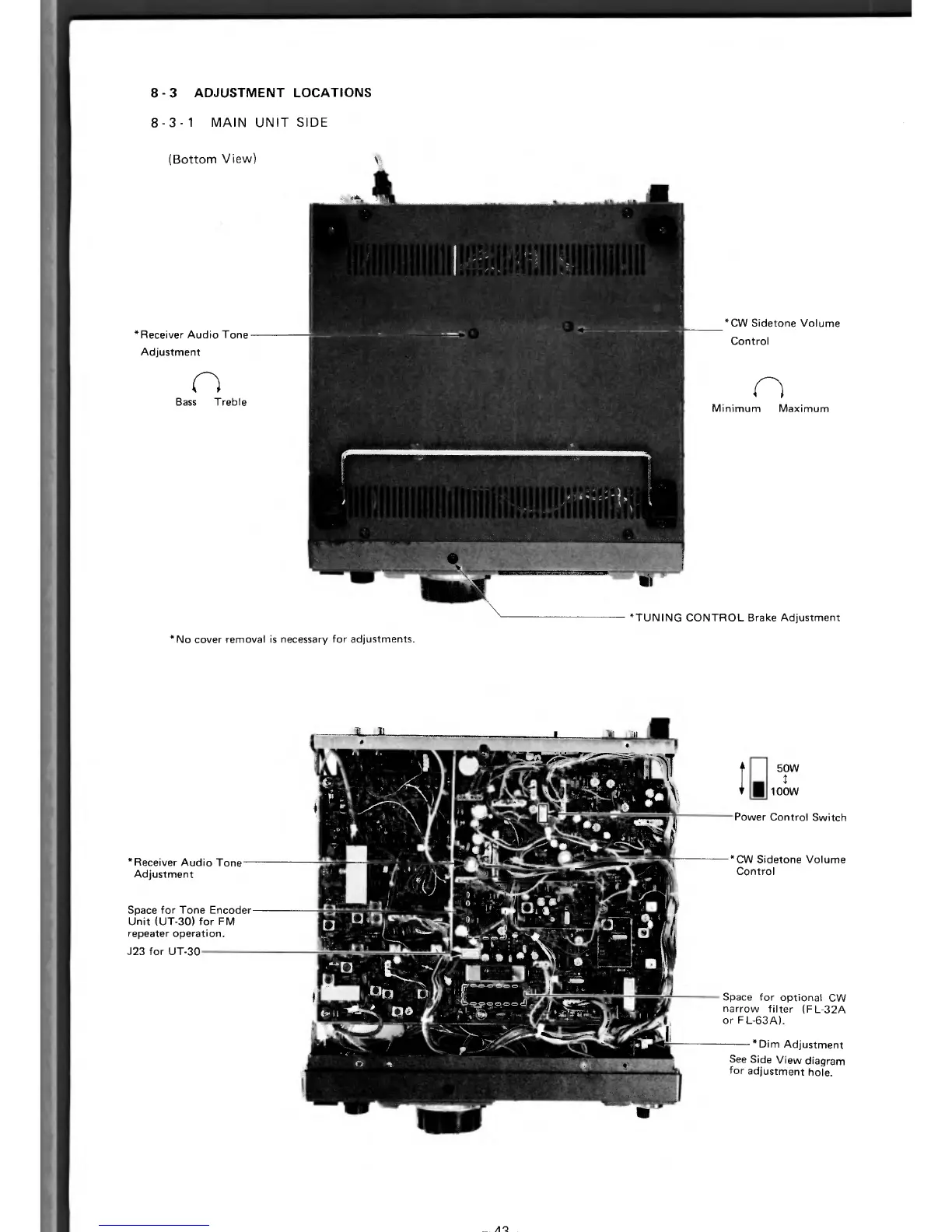

8 - 3 - 1 MAIN UNIT SIDE
(Bottom View)
1ii
*TUNING CONTROL Brake Adjustment
*CW Sidetone Volume
Control
n
*Receiver Audio Tone
Adjustment
n
Bass  Treble
*CW Sidetone Volume
Control
*Receiver Audio Tone
Adjustment
Space for Tone Encoder
Unit (UT-30) for FM
repeater operation.
J23 for UT-30
I
50W
100W
Power Control Switch
Space for optional CW
narrow
filter (FL-32A
or
FL-63A).

*Dim Adjustment
See Side View diagram
for adjustment hole.
8 - 3 ADJUSTMENT LOCATIONS
No cover removal is necessary for adjustments.
