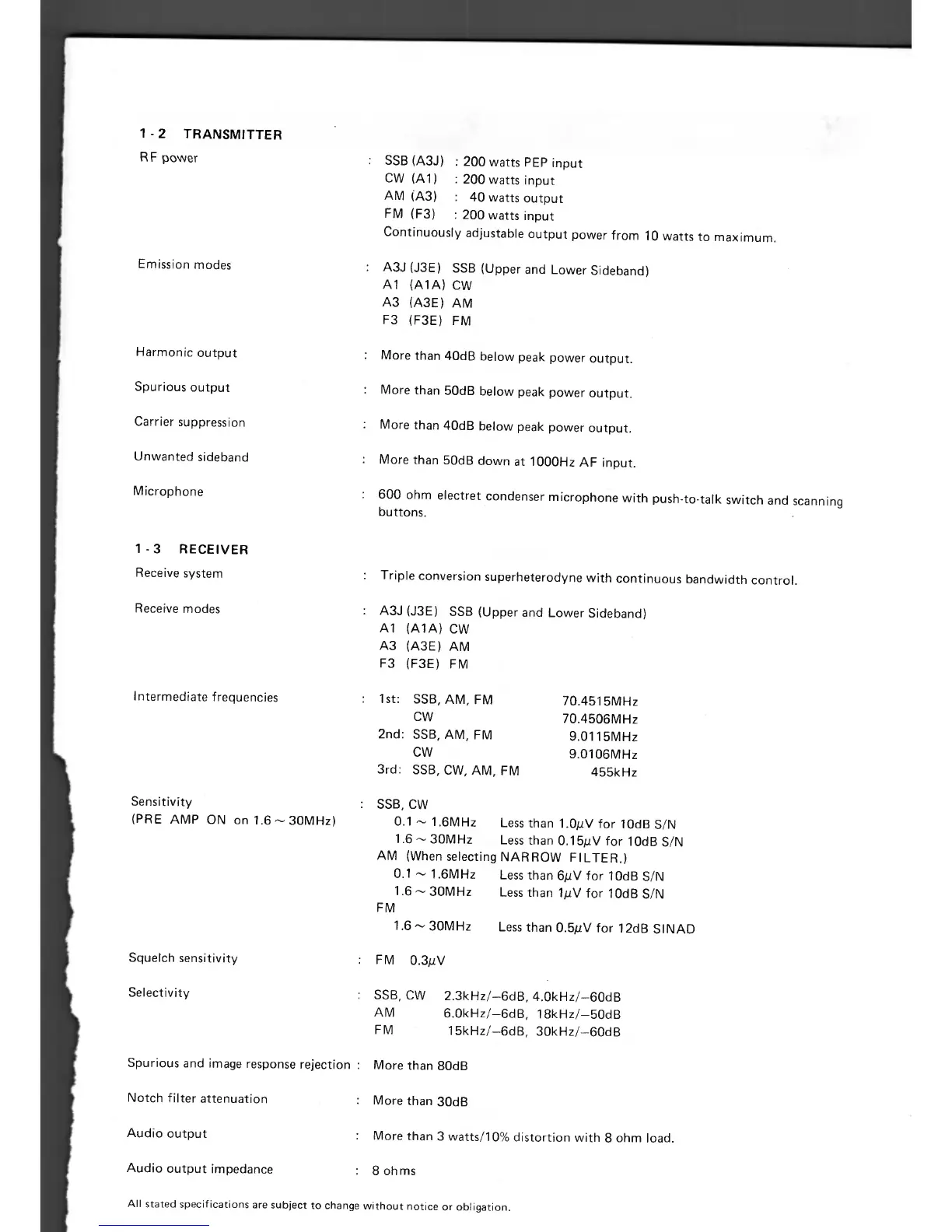

1 - 2 TRANSMITTER
RF power
Emission modes
: SSB (A3J) : 200 watts PEP input
CW (A1) : 200 watts input
AM (A3) : 40 watts output
FM (F3)
: 200 watts input
Continuously adjustable output power from 10 watts to maximum.
: A3J (J3E) SSB (Upper and Lower Sideband)
Al (A1A) CW
A3 (A3E) AM
F3 (F3E) FM
Harmonic output
: More than 40dB below peak power output.
Spurious output
: More than 50dB below peak power output.
Carrier suppression
: More than 40dB below peak power output.
Unwanted sideband
: More than 50dB down at 1000Hz AF input.
Microphone
: 600 ohm electret condenser microphone with push-to-talk switch and scanning
buttons.
1 - 3 RECEIVER
Receive system
: Triple conversion superheterodyne with continuous bandwidth control.
Receive modes
: A3J (J3E) SSB (Upper and Lower Sideband)
Al (A1A) CW
A3 (A3E) AM
F3 (F3E) FM
Intermediate frequencies
1st: SSB, AM, FM
70.4515MHz
CW
70.4506MHz
2nd: SSB, AM, FM
9.0115MHz
CW
9.0106MHz
3rd: SSB, CW, AM, FM
455kHz
Sensitivity
: SSB, CW
(PRE AMP ON on 1.6 30MHz)
0.1 — 1.6MHz
Less than 1.0pV for 10dB S/N
1.6'- 30MHz
Less than 0.15pV for 10dB S/N
AM (When selecting NARROW FILTER.)
0.1 — 1.6MHz
Less than 6pV for 10dB S/N
1.6 — 30MHz
Less than 1,uV for 10dB S/N
FM
1.6 30MHz
Less than 0.5pV for 12dB SINAD
Squelch sensitivity
: FM 0.3pV
Selectivity
: SSB, CW 2.3kHz/-6dB, 4.0kHz/-60dB
AM
6.OkHz/-6dB, 18kHz/-50dB
FM
15kHz/-6dB, 30kHz/-60dB
Spurious and image response rejection : More than 80dB
Notch filter attenuation
: More than 30dB
Audio output
More than 3 watts/10% distortion with 8 ohm load.
Audio output impedance
8 ohms
All stated specifications are subject to change without notice or obligation.
