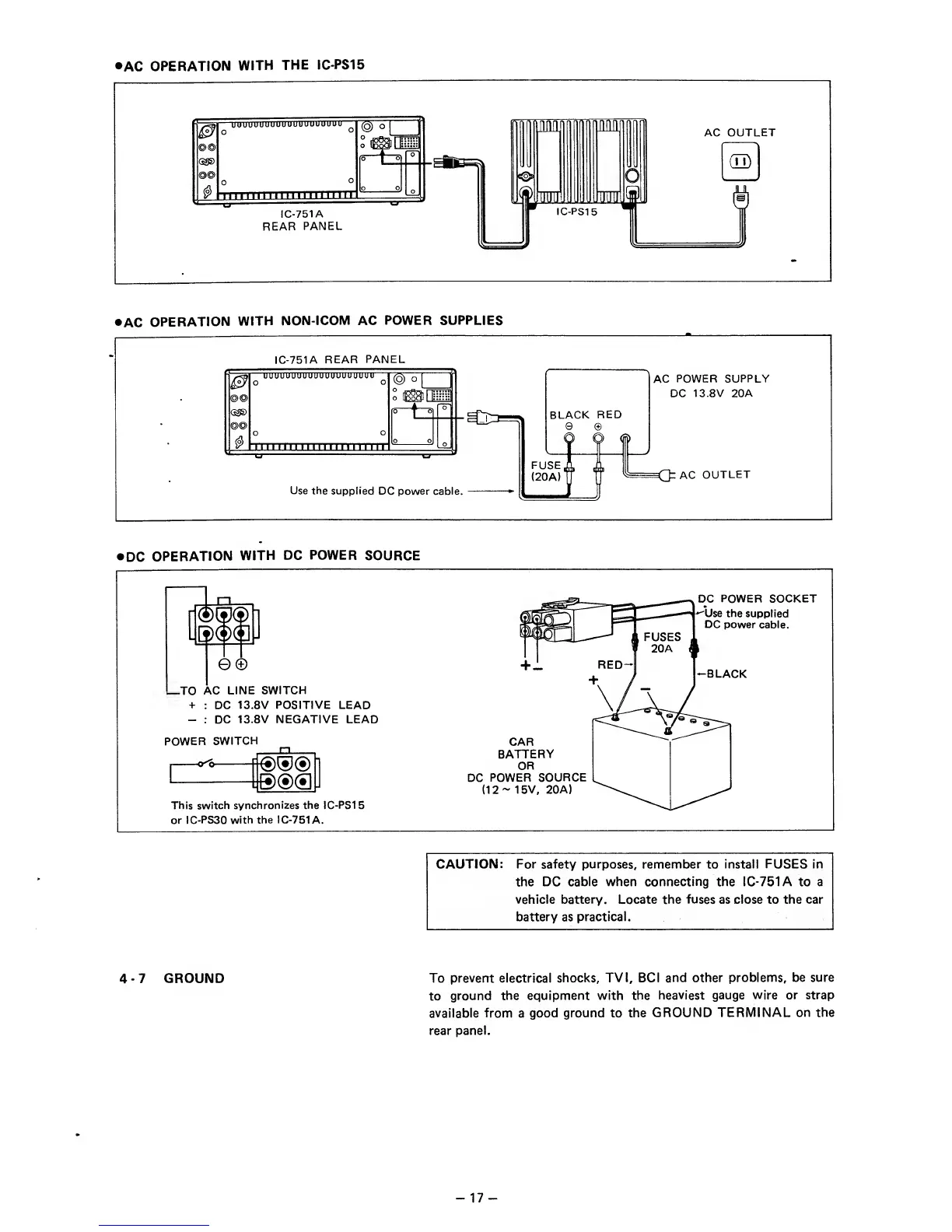

•AC
OPERATION
WITH
THE
IC-PS15
•AC
OPERATION
WITH
NON-ICOM AC
POWER SUPPLIES
IC-751A
REAR
PANEL
DC
OPERATION
WITH
DC POWER
SOURCE
+
: DC
13.8V
POSITIVE
LEAD
-
: DC
13.8V NEGATIVE LEAD
POWER
SWITCH
JZL
This
switch synchronizes
the IC-PS15
or
IC-PS30 with
the IC-751A.
CAUTION: For
safety
purposes, remember
to
install FUSES in
the
DC
cable
when connecting the IC-751A
to
a
vehicle battery. Locate the fuses as close to the car
battery
as
practical.
4-7
GROUND
To
prevent electrical
shocks,
TVI,
BCI
and other problems,
be sure
to
ground the
equipment with the
heaviest gauge
wire or strap
available from a
good ground to the
GROUND
TERMINAL on the
rear
panel.
-
