Icom IC-F211 User Manual

Optional cable
(OPC-617)
Antenna
+
red:
black:
12V
Battery
e
r
t
w
To the antenna
connector
q
Solder
Crimp
NOTE: Use the terminals
as shown below for the
cable connections.
R WARNING! NEVER re-
move the fuse-holder from
the DC power cable.
R WARNING! NEVER con-
nect to a 24 V battery.
Optional speaker
(SP-22)

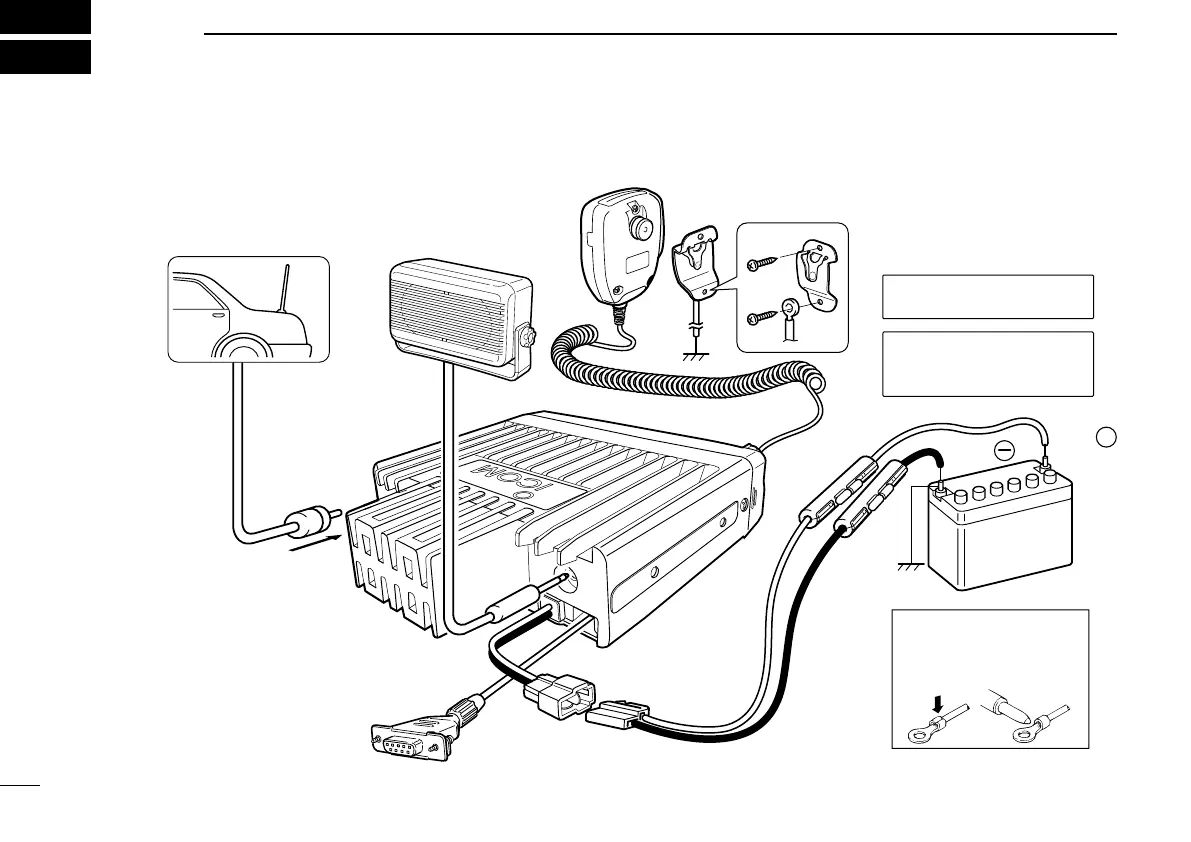

■ Rear panel and connection
11
3
CONNECTION AND MAINTENANCE

Icom IC-F211 Specifications

General

Brand	Icom
Model	IC-F211
Category	Transceiver
Language	English
