t DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer.
y MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
D MICROPHONE
The supplied or optional microphone has a PTT switch and
a hanger hook.
• The following functions are available when the microphone is on or
off hook:
- Automatic scan start when on hook.
- Automatic priority channel selection when off hook.
- Sets to ‘Inaudible’ condition (mute condition) when on hook.
- Sets to ‘Audible’ condition (unmute condition) when off hook.

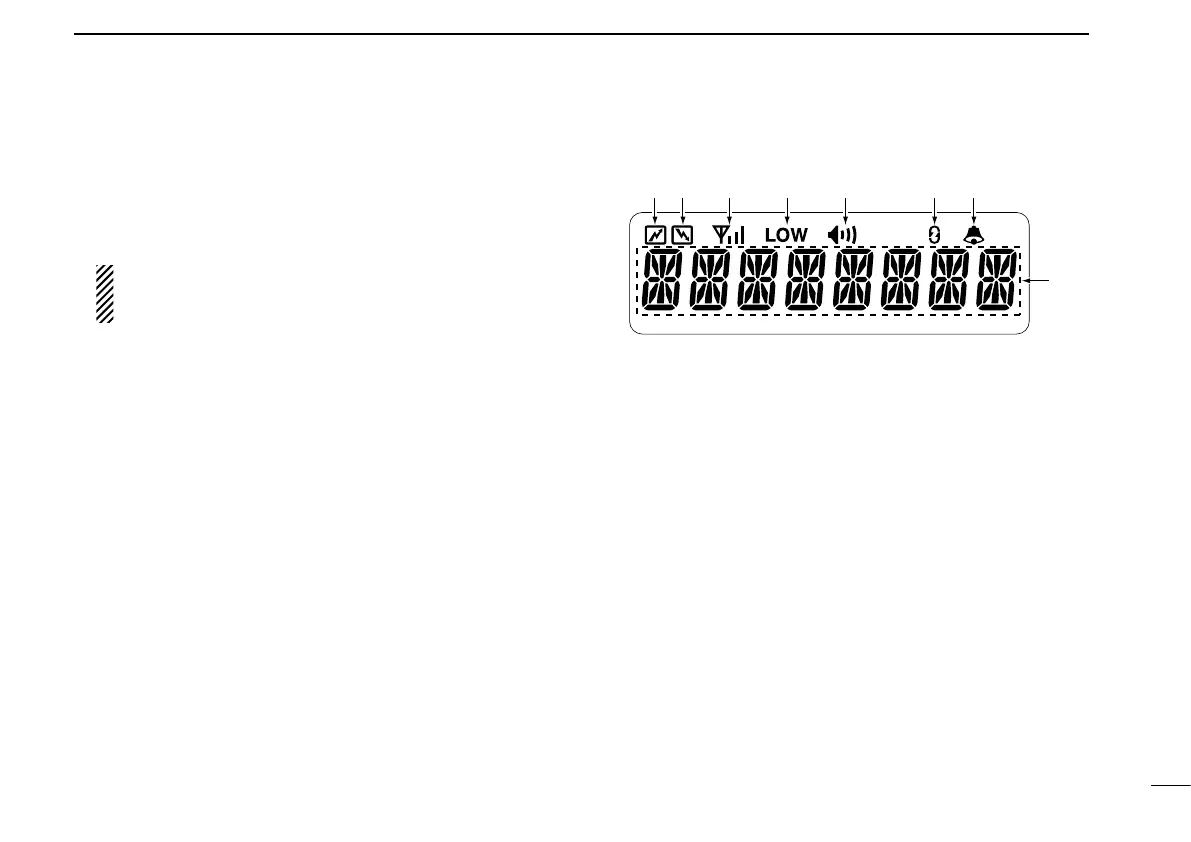

■ Function display
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH METER
Indicates relative receive signal strength level.
r LOW POWER INDICATOR
Appears when low output power is selected.
t AUDIBLE INDICATOR
Appears when the channel is in the ‘Audible’ condition (un-
mute condition).
y SCRAMBLER INDICATOR
Appears when the scrambler function is activated. (Op-
tional UT-109 (#02)/UT-110 (#02) SCRAMBLER UNIT is
required.)
2
1
PANEL DESCRIPTION
To Next Page
