■ Mounting the transceiver

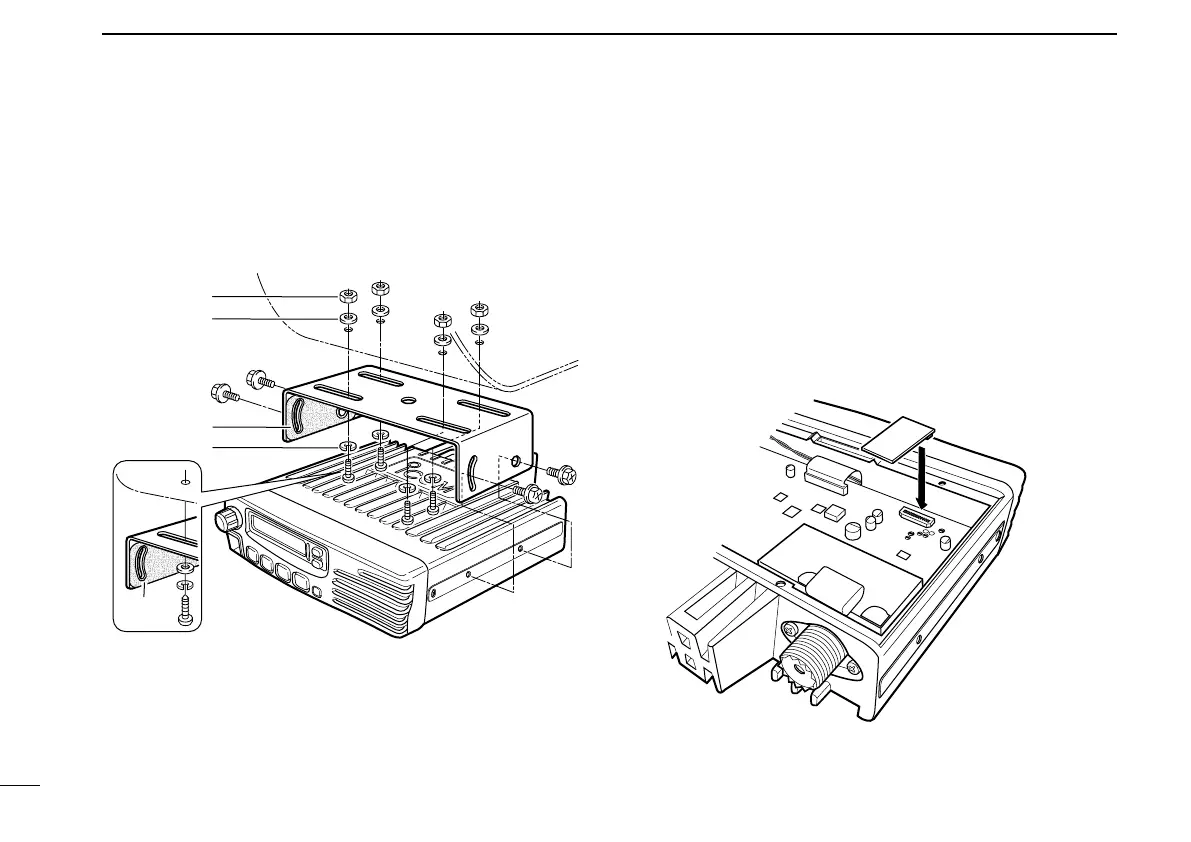

The universal mounting bracket supplied with your transceiver
allows overhead mounting.
• Mount the transceiver securely with the 4 supplied screws to a thick
surface which can support more than 1.5 kg.
Spring washer
Flat washer
Nut
*Felts reduce the vibration effects.
Felt*
Felt*
When using
self-tapping screws
■ Optional UT-108 installation
Install the optional UT-108 unit as follows:
q
Turn the power OFF, then disconnect the DC power
cable.
w Unscrew the 4 cover screws, then remove the bot-
tom cover.
e Install the unit as shown in the diagram below.
r Replace the bottom cover and screws, then re-con-
nect the DC power cable.
13
3
CONNECTION AND MAINTENANCE
