2 - 1

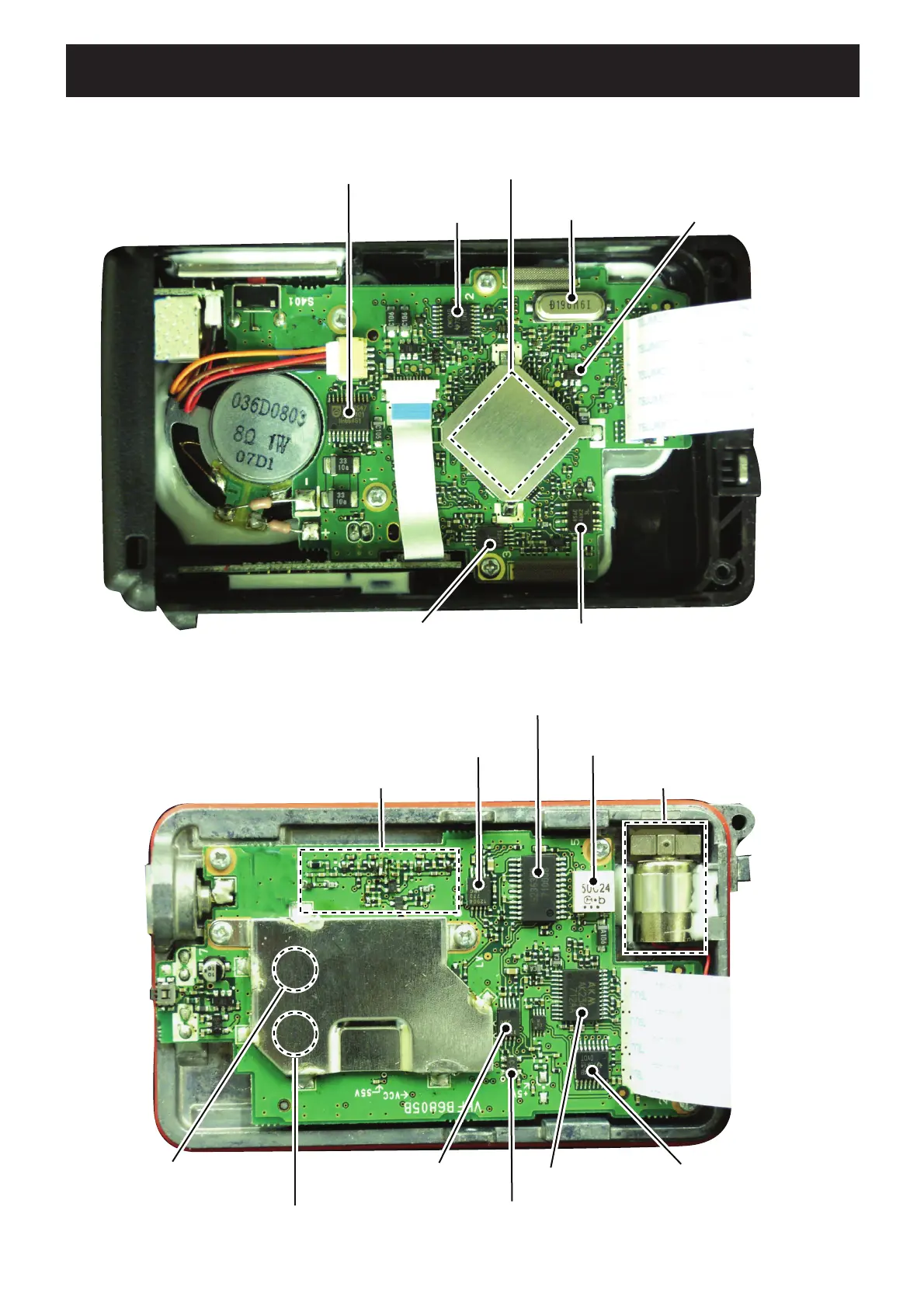

SECTION 2
INSIDE
VIEWS
CPU CLOCK
(X401:
CR-764)
RESET IC
(IC408:
BD5242G)
CPU
(IC401:
HD64F2268TFV)
AF PO
WER AMP
(IC405:
TD
A8547TS)
EXP
ANDER
(IC410:
CD4094BPWR)
EXP
ANDER
(IC12:
CD4094BPWR)
MIC AMP
(IC407:
NJM12904V)
AF BUFFER,
AF MIXER
(IC5:
NJM12904V)
AF BUFFER
(IC6:
NJM12904V)
TX PO
WER AMP
(Q7:
RD07MVS2-T112)
DRIVE AMP
(Q8:
RD01MUS1-T113)
LOCK V
OL
T
A
GE
SWITCH
(IC17:
TC4S66F)
BASE B
AND IC
(IC10:
AK2346)
RF CIRCUITS
• FRONT UNIT
• MAIN UNIT
EEPROM
(IC409:
HN58X24256FPIE)
DISCRIMINA
T
OR
(X1:
CDBKB450KCA
Y24)
DAC
(IC6:
M62363FP-650C)
VIBRA
TION MO
T
OR
(MF1:
QX10A(R5.5X3))
4
6
Table of Contents
Default Chapter
3
Table of Contents
3
Specifications
4
Inside Views
5
Receiver Circuits
7
Transmitter Circuits
9
Frequency Synthesizer Circuits
12
Other Circuits
13
Voltage Block Diagram
13
Cpu (F: Ic401) Port Allocations
14
Adjustment Procedures
15
Preparation
15
Frequency Adjustment
18
Transmit Adjustment
20
Receive Adjustment
24
Parts List
27
Connect Unit
28
Mechanical Parts
33
Board Layouts
35
FRONT UNIT (Incl. CONNECT and VR UNITS)
35
MAIN UNIT (Left Side)
35
MAIN UNIT (Right Side)
36
