MENU SCREEN
2001 NEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

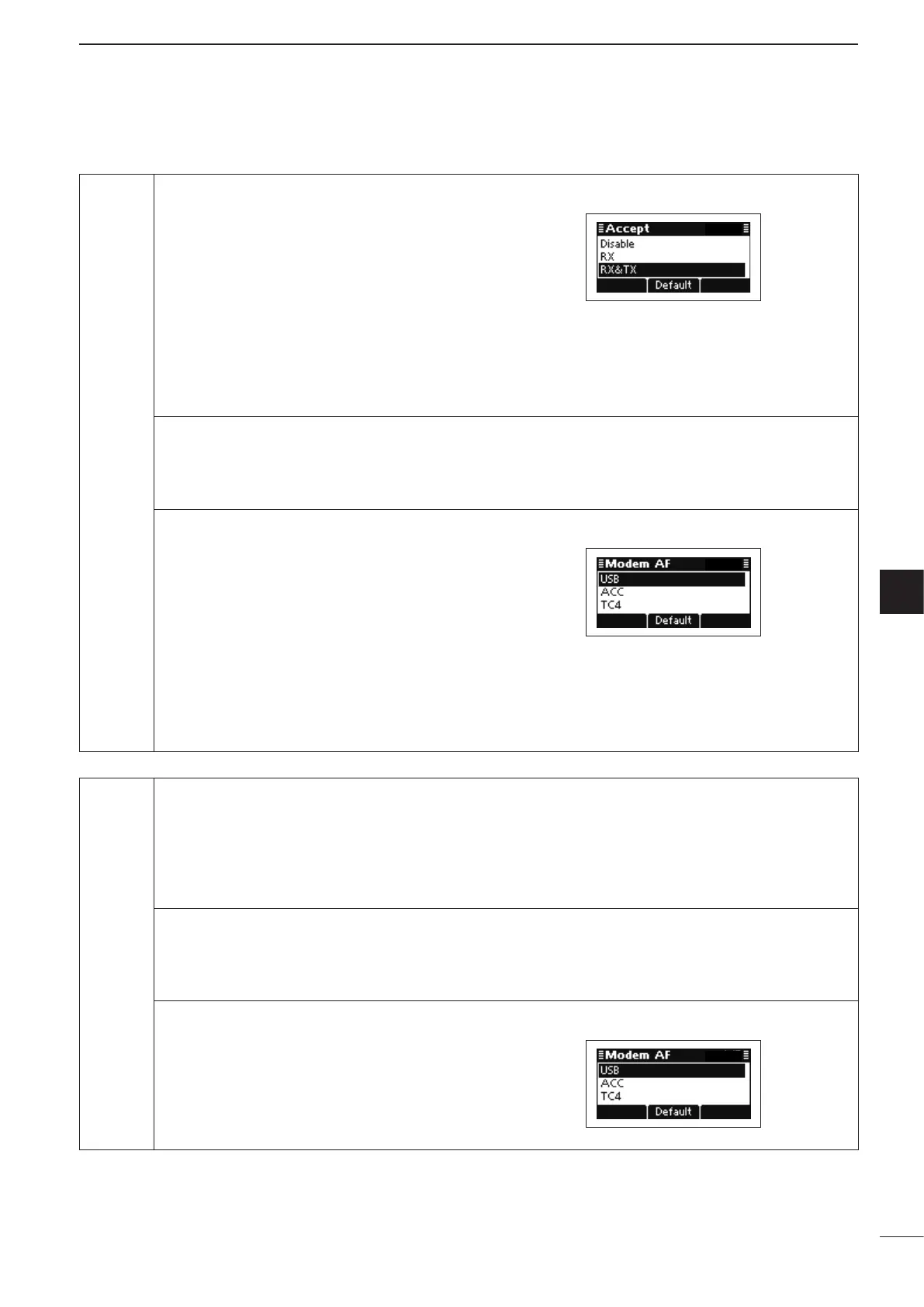

Quick Reference
 Mode Set mode
LSB Accept
(Default: Disable for AUS, RX & TX for others)
Set the LSB mode to “Disable,” “RX” or
“RX & TX.”
Disable: Disables the transceiver from
both receiving and transmit-
ting calls.
RX: Allows the transceiver to re-
ceive calls, but disables it from
transmitting them.
RX & TX: Allows the transceiver to both
receive and transmit calls.
Band Width
Displays the IF filter passband width.
The width is permanently set to “3000Hz.”
Modem AF
(Default: USB)
Set the connector for data modulation
input when an external unit’s [PTT] is
pushed.
USB: Inputs the modulation signals
through a USB port.
ACC: Inputs the modulation signals
through the ACC connector.
TC4: Inputs the modulation signals
through a RapidM TC4 HF
Data Modem Module.
USB Accept
Displays the USB mode permission set-
ting.
This setting is permanently set to “RX &
TX.”
Band Width
Displays the IF filter passband width.
The width is permanently set to “3000Hz.”
Modem AF
(Default: USB)
Set the connector for data modulation
input when an external unit’s [PTT] is
pushed.
See the “Modem AF” item in “LSB” for de-
tails.
