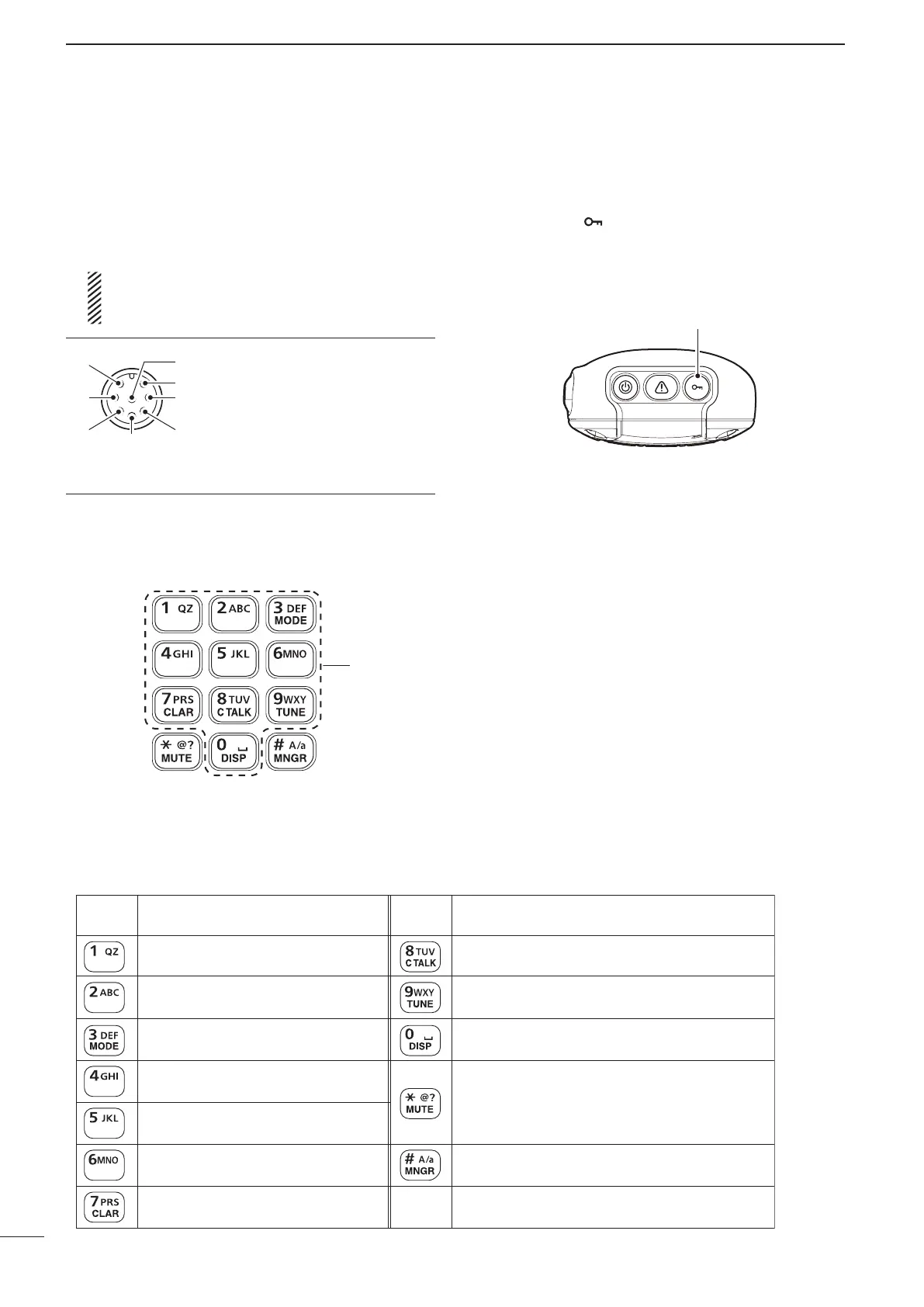

PANEL DESCRIPTION
2001 NEW 2001 NEW
!0 MICROPHONE CONNECTOR [MIC]
Connects to only the microphone supplied with the
transceiver.
NOTE: NEVER connect the HM-192 or any other
microphone here. This could damage the trans-
ceiver and/or the microphone.
y
u
t
r
q
w
e
i
Front view
q MIC (microphone input)
w MIC SW1
e AF
r OPTION MIC DET
t PTT
y GND
u GND (microphone ground)
i +8 V DC output (Max. 1 A)
!1 LOCK KEY [
]
Hold down for 1 second to set the Key lock function
to ALL, NUMERIC KEY or OFF.
D Keypad
➥ Inputs numbers, characters or letters.
10-key
• Front panel • HM-192
• Selectable characters
KEY INPUT INPUTKEY
(space)
Upper/Lower case letters/Numbers
1 Q Z q z
2 A B C a b c
3 D E F d e f
4 G H I g h i
5 J K L j k l
6 M N O m n o
7 P R S p r s
8 T U V t u v
9 W X Y w x y
0
, . ; ? : ” ` ’ / ! @ # $ % ^ &
* ( ) _ – + = | \
~
< > { } [ ]
■ Controller (Front panel or HM-192) (Continued)
!1
