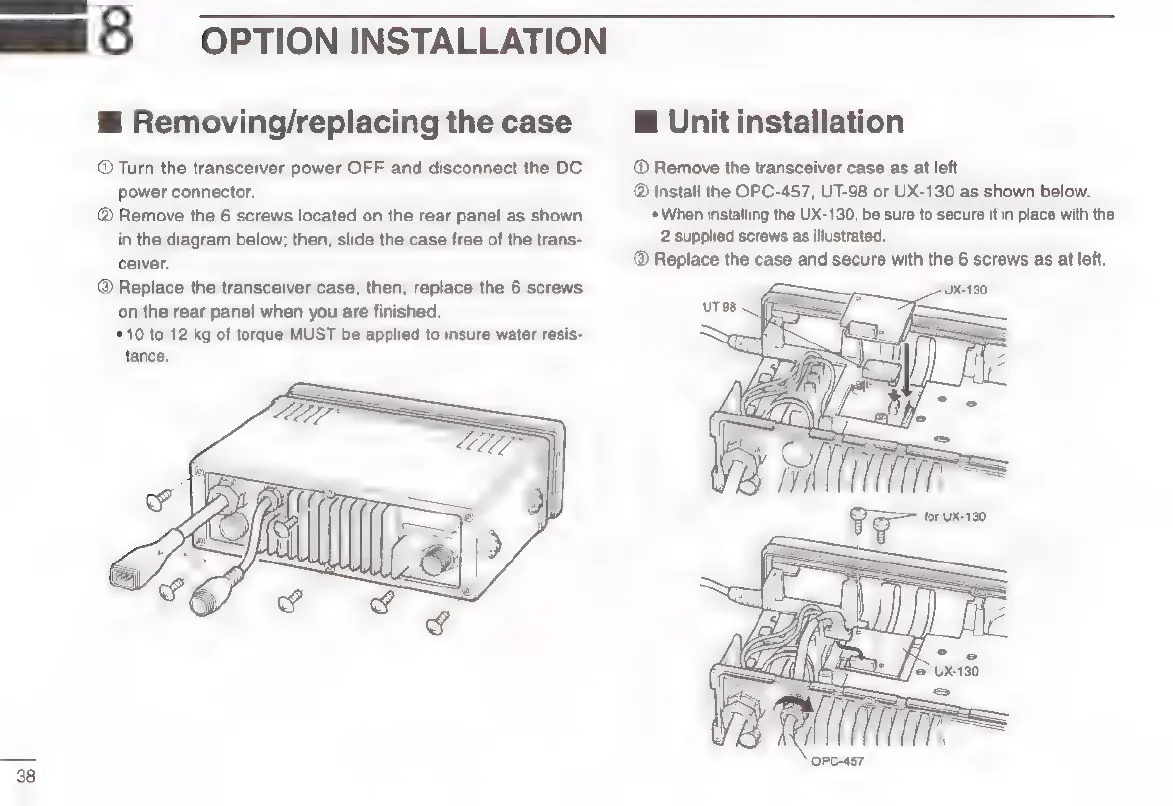

@ Removing/replacing the case
@ Turn the transceiver power OFF and disconnect the DC
power connector.
@ Remove the 6 screws located on the rear panel as shown
in the diagram below; then, slide the case free of the trans-
ceiver.
@ Replace the transceiver case; then, replace the 6 screws
on the rear panel when you are finished.
*10 to 12 kg of torque MUST be applied to insure water resis-
tance.
OPTION INSTALLATION
Bf Unit installation
@ Remove the transceiver case as at left.
@ Install the OPC-457, UT-98 or UX-130 as shown below.
* When installing the UX-130, be sure to secure it in place with the
2 supplied screws as illustrated.
@ Replace the case and secure with the 6 screws as at left.
