Icom IC-M1V Service Manual

7 - 1

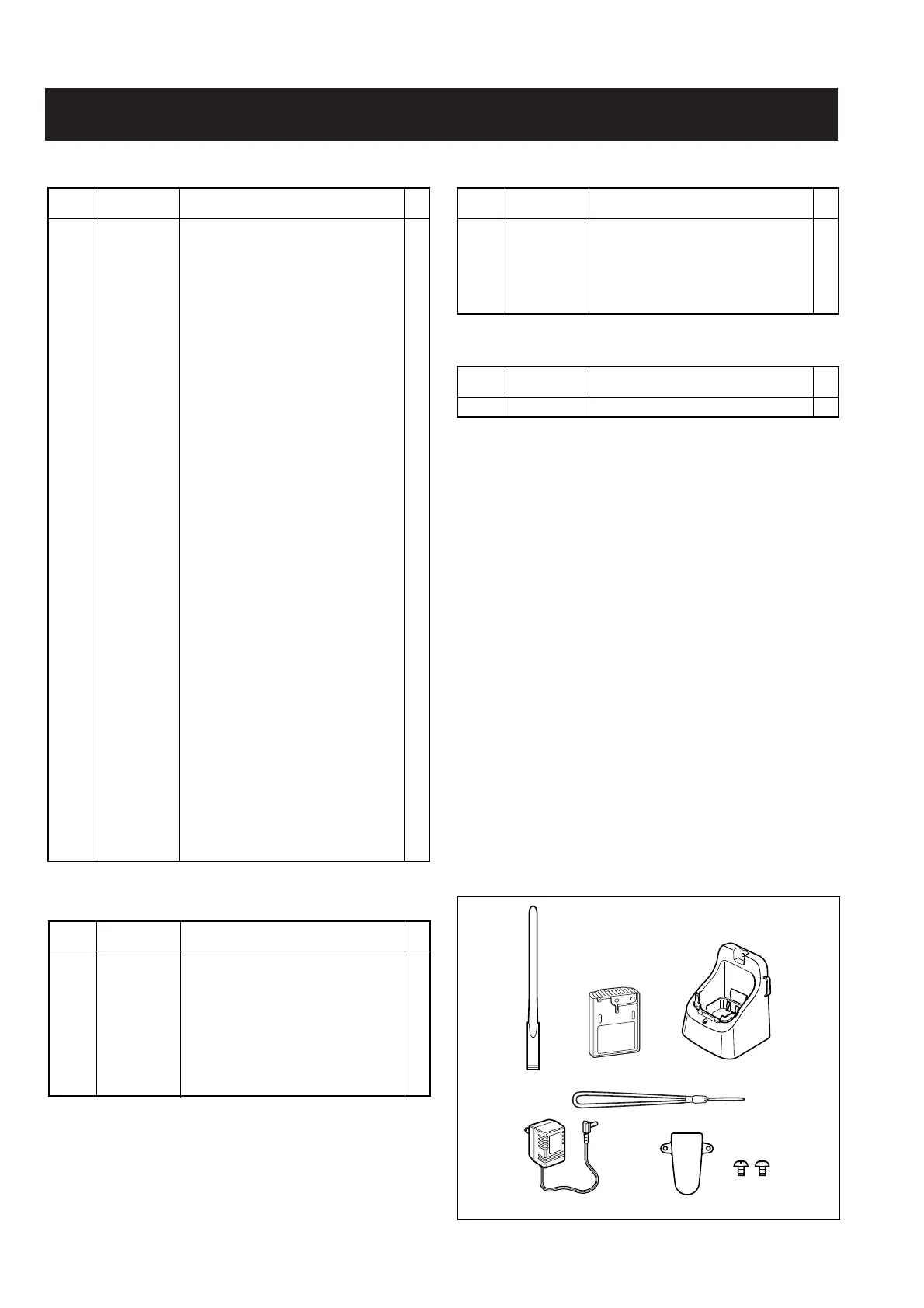

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
J1 6510019610 SMA-R209 1
J2 6510021940 246S-550-4P 1
J3 6510021930 2320 Contact 1
SP1 2510000930 SU-36W08040C 1
WS1 8600036580 FX2320 P01CH 1
MP1 8210016481 2320 Front panel-1 [IC-M1V] 1
8210016681 2320 Front panel (A) -1 [ITA], [UK] 1
8210016691 2320 Front panel (B) -1 [EUR], [FRG] 1
MP3 8930050730 2320 Key board [IC-M1V] 1
8930051080 2320 Key board [IC-M1EURO V] 1
MP5 8930039000 1757 Sheet 1
MP6 8930050680 2320 Main seal 1
MP7 8210016492 2320 Rear panel-2 1
MP8 8110007021 2320 Release cover-1 1
MP9 8930050700 2320 Release button 1
MP10 8930051490 Push spring (AF) 2
MP11 8810009290 Screw PH No.0 M2 × 3 SUS ZK 2
MP12 8930050690
2320 PTT rubber 1
MP13 8310047210
2320 PTT plate 1
MP14 8810009290 Screw PH No.0 M2 × 3 SUS ZK 2
MP15 8930050711
2320 Rubber-1 1
MP16 8930050671
2320 C rubber-1 1
MP17 8810009290 Screw PH No.0 M2 × 3 SUS ZK 2
MP18 8610010760
Knob N274 1
MP19 8610010770
Knob N275 1
MP20 8930051500
O ring (AB) 1
MP21 8830001470
VR nut (N) 1
MP22 8930039840 1757 Ant seal 1
MP23 8830001160
VR nut (K) 1
MP24 8930039850 Sealing washer (J) 1
MP25 8810009340 Screw PH M2 × 5 SUS ZK 1
MP26 8830001480
VR nut (O) 1
MP27 8930050660 2320 Connector cap 1
MP28 8810008970 Screw FH BT No.0 M2 × 3.5 NI-ZU 3
MP29 8810009560 Screw PH BT M2 × 6 ZK 2
MP30 8810008970 Screw FH BT M2 × 3.5 NI-ZU 7
MP31 8810009170 Screw PH B0 M2 × 5 SUS ZK 4
MP32 8810009160 Screw PH B0 M2 × 20 SUS ZK 2
REF ORDER
DESCRIPTION
NO. NO.
[CHASSIS PARTS]
Screw abbreviations
B0, BT: Self-tapping PH: Pan head FH: Flat head
NI-ZU: Nickel-Zinc SUS: Stainless ZK: Black
QTY.
DS1 5030001810 A0081A 1
EP2 8930051120 SRCN-2320-SP-N-W 2
MP4 8930050490 2320 LCD holder 1
MP5 8210016430 2320 Reflector 1
REF ORDER
DESCRIPTION
NO. NO.
QTY.
[MAIN UNIT]
MP2 8510012710 2320 VCO cover 1
REF ORDER
DESCRIPTION
NO. NO.
QTY.
[RF UNIT]
EP1 Optional product Antenna FA-S57V-1 1
EP2
Optional product Charger BC-122A [USA] 1
Charger BC-122E [SEA], [ITA], [EUR], [FRG] 1
EP3
Optional product Battery BP-215 ACC 1
EP4
Optional product Adapter EX-2329 (AD-95 ACC) 1
MP1 8010018080 Strap belt HK-009 1
MP2 8930039290 1757 Belt clip 1
MP3 8810009270 Screw M3 × 4 SUS ZK
REF ORDER
DESCRIPTION
NO. NO.
QTY.
[ACCESSORIES]
MP2
EP3
MP3
EP4
EP2
MP1
EP1
