TM 10-7360-226-13&P
CONTAINERIZED KITCHEN (CK) 0020 00
UNIT MAINTENANCE PROCEDURES
0020 00-2
Three people are required to lift one side of the Dual Oven Assembly for
caster replacement .
Place a wooden block under the frame near the faulty caster and check for free rotation.
Replace the caster using the replacement procedure in the following section.
Fan Assembly: If the fan motor shaft is not rotating, check that the oven fan switch on the
Appliance Control Box is ON and the power cable connected properly. Check the circuit
breaker at the Appliance Control Box and the Power Distribution Panel. Remove the access
cover at the fan assembly and check for 115 VAC. If voltage is not present recheck the cable
assembly and connections. Replace the cable assembly if required. If voltage is present,
replace the fan assembly. Refer to the following repair procedures.
REPLACE
Caster:
Three people are required to lift one side of the Dual Oven Assembly for
caster replacement
Place a wooden block under the Dual Oven Assembly in the vicinity of the caster as a support
while the caster is being replaced (see Figure 1). Remove the four caster mounting screws and
replace the caster. Replace all hardware.
Fuel Line: If the fuel line is inoperable because of a damaged connector or a cut or hole in the
hose, replace the entire section of fuel line assembly by disconnecting the hose assembly and
installing a replacement (see Figure 2).

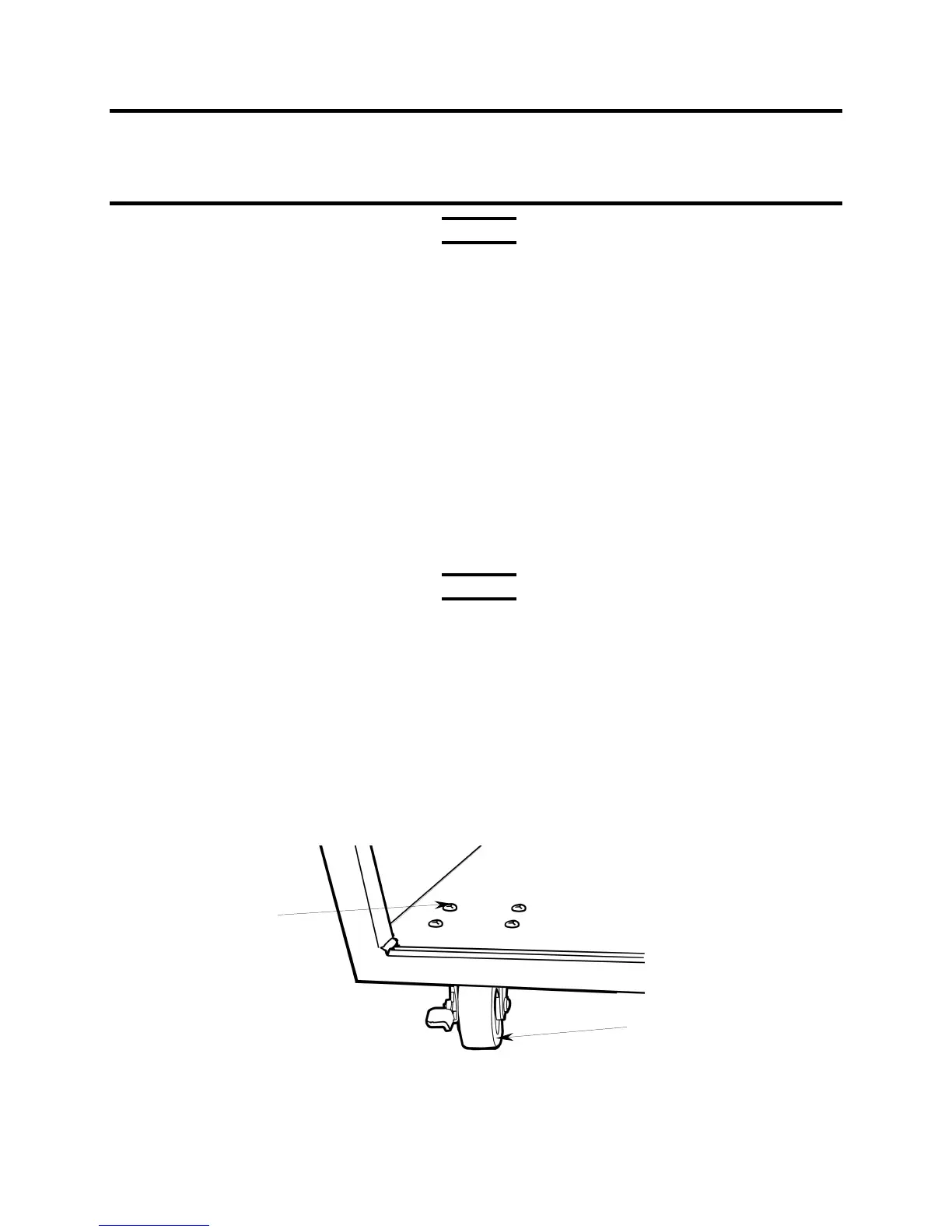

Figure 1. Swivel Caster Replacement.
MOUNTING
HARDWARE
CASTER WHEEL
WARNING
WARNING
