TM 10-7360-226-13&P
CONTAINERIZED KITCHEN (CK) 0030 00
DIRECT SUPPORT MAINTENANCE PROCEDURES
0030 00-2
Assemble the blower wheel to the shaft of the replacement blower motor. Tighten the set screw
on the flat of the shaft. Assemble the motor mount onto the assembly cover. Tighten nuts.
Ensure the blower wheel rotates freely without interference. Attach the ground wire between
screw head and washer. Install the blower motor assembly into the air conditioner using the
retained hardware. Reconnect the blower motor wiring in the wire box. Ensure the cable
assembly is secure and will not contact any moving parts. Reinstall the top cover.

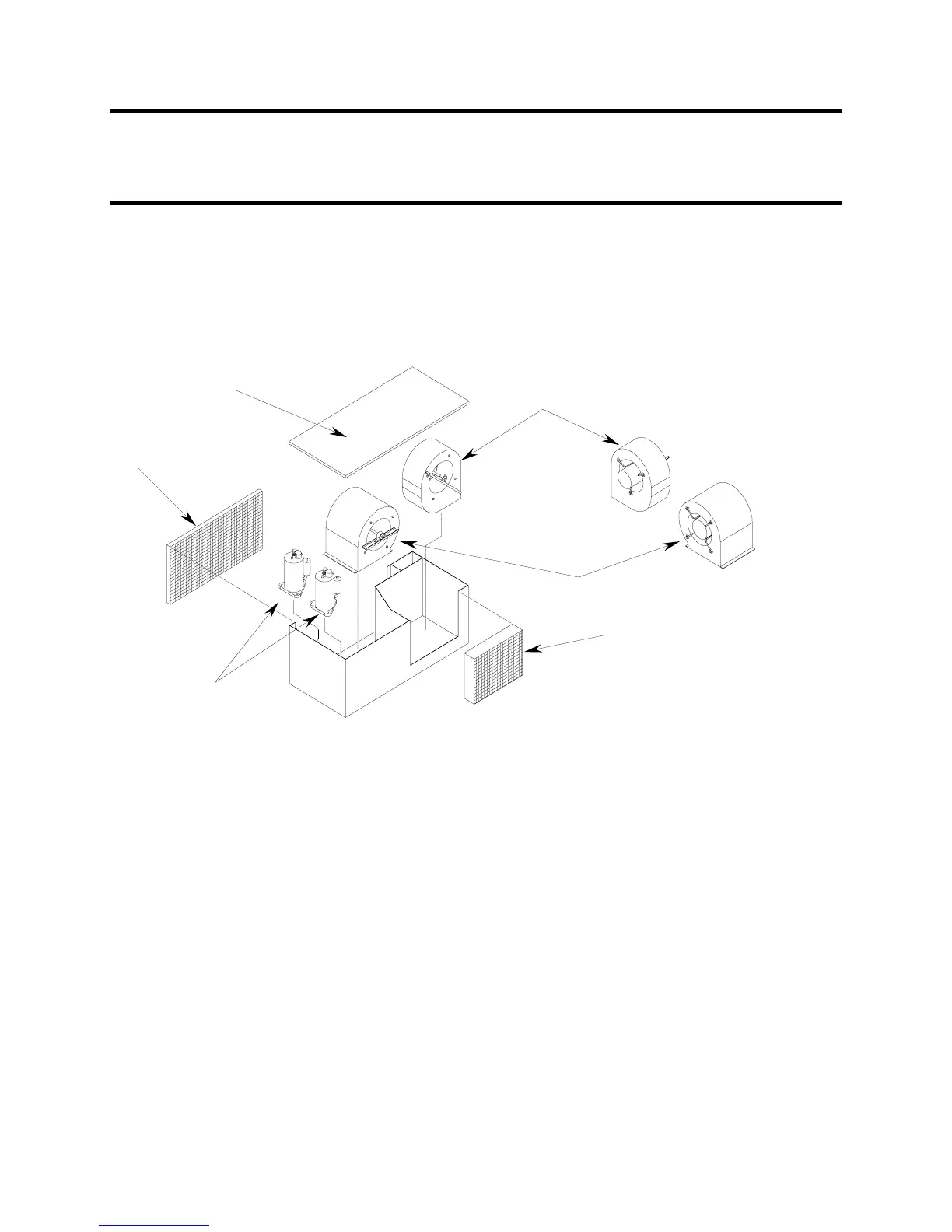

Figure 1. Air Conditioner Repair.
Remove and Replace Condenser Blower Motor: Remove the air conditioner top cover (see
Figure 1). Remove the six nuts that attach the blower motor assembly to the side panel. Label
and disconnect the condenser blower motor wiring. Remove the blower motor assembly from
the air conditioner.
Remove the four screws from the assembly cover and the three screws from the motor
mounting bracket. Remove the blower motor from the assembly cover. Remove the blower
wheel from the motor shaft.
Assemble the blower wheel to the shaft of the replacement blower motor. Tighten the set screw
on the flat of the shaft. Assemble the motor mount onto the assembly cover. Tighten nuts.
Ensure the blower wheel rotates freely without interference. Attach the ground wire between
screw head and washer. Install the blower motor assembly into the air conditioner using the
retained hardware. Reconnect the blower motor wiring. Ensure the cable assembly is secure
and will not contact any moving parts. Reinstall the top cover.
END OF WORK PACKAGE
CONDENSER COIL
EVAPORATOR COIL
COMPRESSOR
EVAPORATOR
BLOWER ASSEMBLY
TOP COVER
CONDENSER
BLOWER ASSEMBLY
