TM 10-7360-226-13&P
CONTAINERIZED KITCHEN (CK) 0005 00
DESCRIPTION OF OPERATOR CONTROLS AND INDICATORS
0005 00-2
Power Distribution Panel
The Power Distribution Panel (PDP), Figure 2, is located on the mechanical room wall in the
serving area. The panel houses the circuit breakers that control the distribution of electrical
power within the kitchen. The circuit breakers are normally closed (ON) and are only opened
(turned OFF) to isolate circuits for maintenance or troubleshooting. If an electrical malfunction
occurs, the breaker in the affected circuit trips (opens) to isolate the affected circuit.
INPUT POWER
REFRIGERATOR 1
REFRIGERATOR 2
MBU CONVERTER
ENVIRONMENTAL
CONTROL
UNIT
LIGHTS
INTAKE AND
EXHAUST
FANS
HEATER
CONVENIENCE
OUTLETS
MECHANICAL
ROOM
OUTLET
WARMING
CABINET
ECU CONTROL BOX
APPLIANCE
CONTROL
BOX

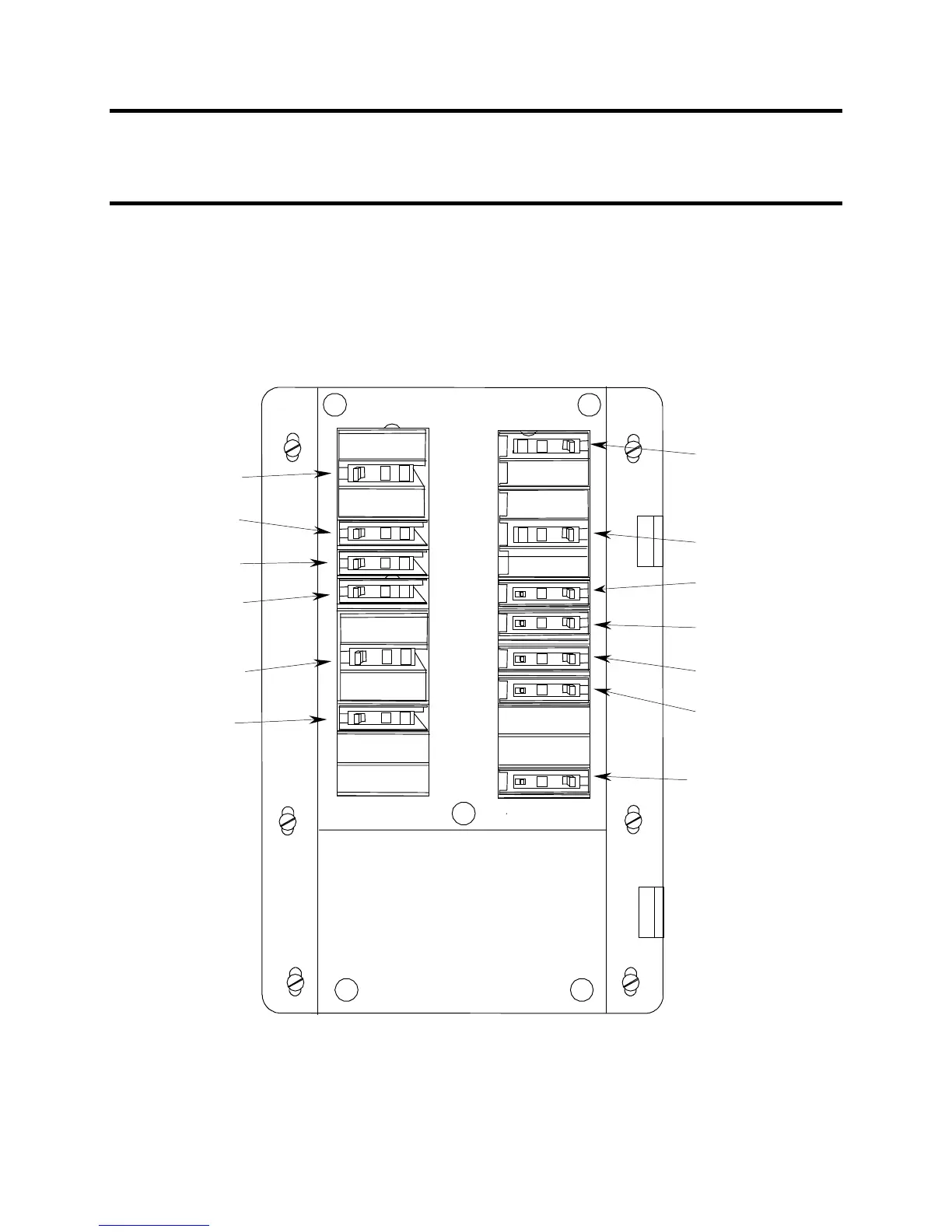

Figure 2. Power Distribution Panel.
