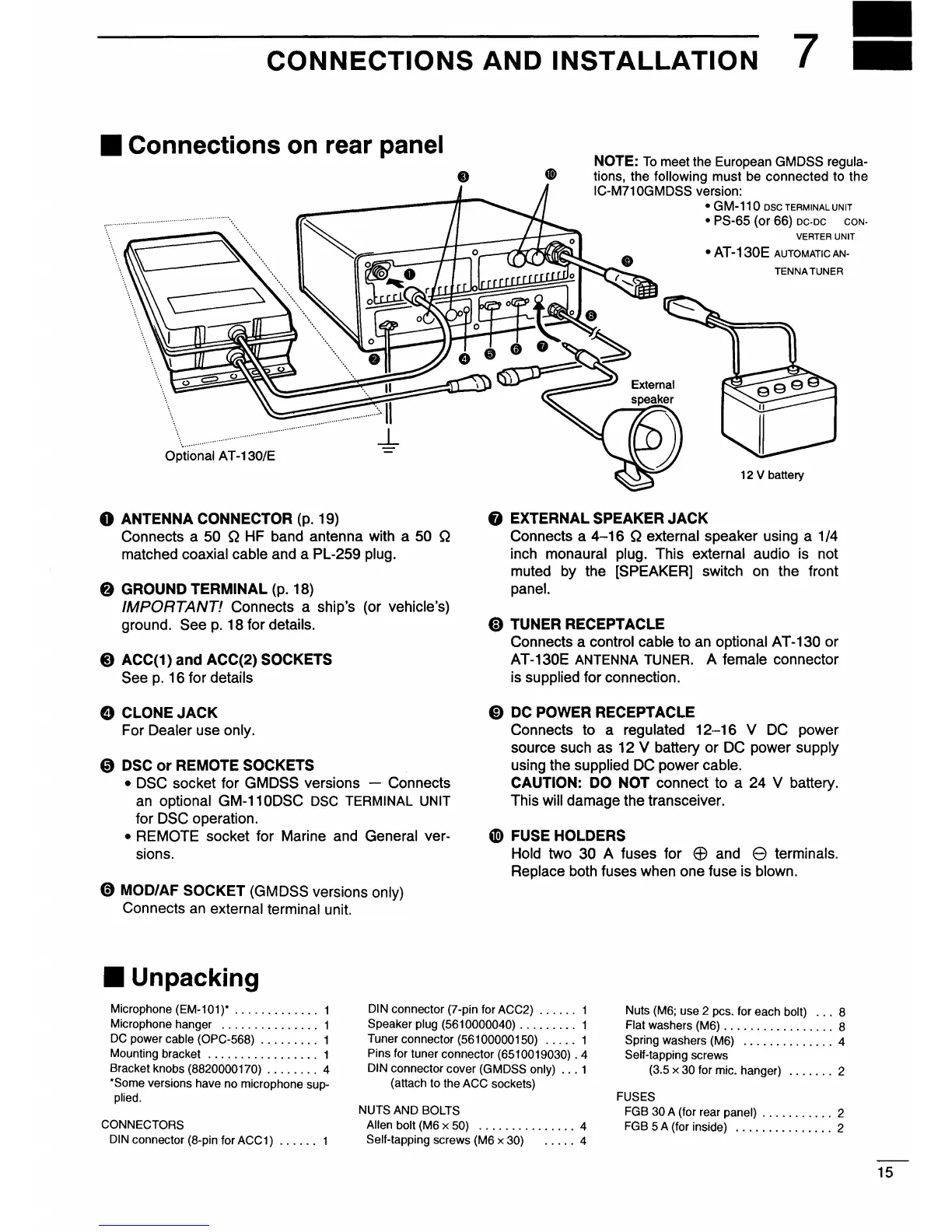

CONNECTIONS AND INSTALLATION 7
• Connections on rear panel
0 ANTENNA CONNECTOR (p. 19)
Connects a
50 Q HF band antenna with a 50 Q
matched
coaxial cable and a PL-259 plug.
8 GROUND TERMINAL (p. 18)
IMPORTANT! Connects a ship's (or vehicle's)
ground. See p. 18 for details.
8 ACC(1) and ACC(2) SOCKETS
See
p. 16 for details
8 CLONEJACK
For Dealer use only.
0 DSC or REMOTE SOCKETS
• DSC
socket for GMDSS versions - Connects
an optional GM-110DSC DSC TERMINAL UNIT
for DSC operation.
• REMOTE socket for Marine and General ver-
sions.
0 MOD/AF SOCKET (GMDSS versions only)
Connects an external terminal unit
• Unpacking
NOTE: To meet the European GMDSS regula-
tions, the following must be connected to the
IC-M710GMDSS version:
• GM-110 DSCTERMINALUNIT
• PS-65 (or 66) DC-DC coN-
VERTER UNIT
• AT-130E AUTOMATIC AN-
TENNA TUNER
12 V battery
6 EXTERNALSPEAKERJACK
Connects a 4-16 Q external speaker using a 1/4
inch
monaural plug. This external audio is not
muted by the [SPEAKER] switch
on the front
panel.
C) TUNER RECEPTACLE
Connects a control cable to an optional AT-130 or
AT-130E ANTENNA TUNER. A female connector
is supplied for connection.
@) DC POWER RECEPTACLE
Connects to a
regulated 12-16 V DC power
source such as 12
V battery or DC power supply
using the supplied DC power cable.
CAUTION: DO NOT
connect to a 24 V battery.
This
will damage the transceiver.
«!) FUSE HOLDERS
Hold
two 30 A fuses for E6 and 8 terminals.
Replace
both fuses when one fuse is blown.
Microphone (EM-101)* ............. 1
DIN connector (7-pin for ACC2) ...... 1
Nuts (M6; use 2 pes. for each
bolt) . . . 8
Flat washers (M6) . . . . . . . . . . . . . . . . . 8
Microphone hanger . . . . . . . . . . . . . . . 1
DC power cable (OPC-568) ......... 1
Mounting bracket . . . . . . . . . . . . . . . . . 1
Bracket knobs
(8820000170) .. _ ..... 4
*Some versions have no microphone sup-
plied.
CONNECTORS
DIN connector (8-pin for ACC1) ...... 1
Speaker plug (5610000040) ......... 1
Tuner connector
(56100000150) ..... 1
Pins for tuner connector
(6510019030). 4
DIN connector cover (GMDSS only) ... 1
(attach to the
ACC sockets)
NUTS AND BOLTS
Allen bolt
(M6 x 50) . . . . . . . . . . . . . . . 4
Self-tapping screws (M6 x 30) . . . . . 4
Spring washers (M6) .............. 4
Self-tapping screws
(3.5 x
30 for mic. hanger) ....... 2
FUSES
FGB 30 A (for rear panel) . . . . . . . . . . . 2
FGB 5 A (for inside)
............... 2
