Icom IC-M710 - Antenna; Non-Lcom Tuner

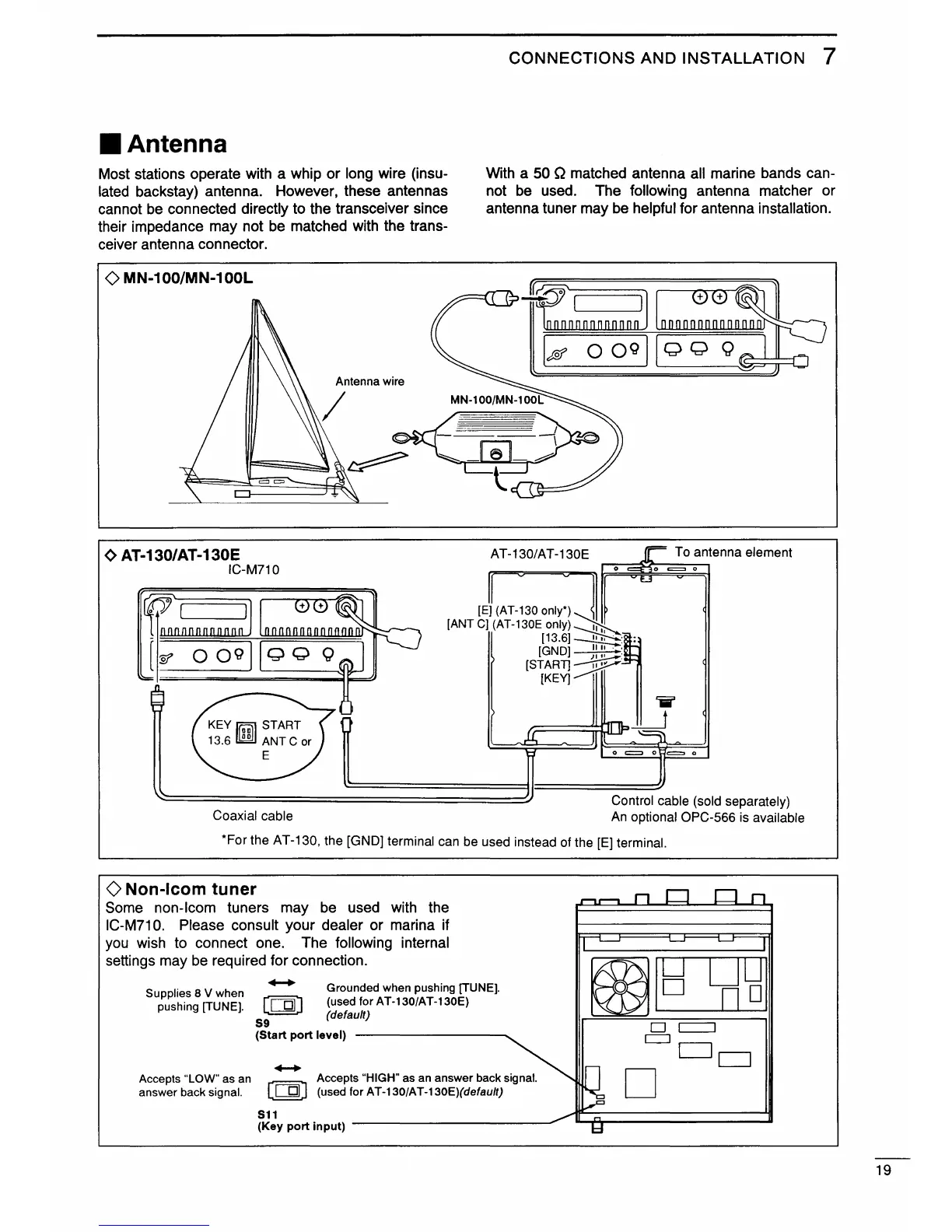

•Antenna
Most stations operate with a whip or long wire (insu-
lated backstay) antenna. However, these antennas
cannot
be connected directly to the transceiver since
their impedance may not
be matched with the trans-
ceiver antenna connector.
0 MN-100/MN-100L
0 AT-130/AT-130E
IC-M710
Antenna wire
CONNECTIONS AND INSTALLATION 7
With a 50 Q matched antenna all marine bands can-
not be used. The following antenna matcher or
antenna tuner may
be helpful for antenna installation.
t! ]I
~I I
nnnnnnnnnn
AT-130/AT-130E
~r IJ
oooonnnnnn
[E) (AT-130 only*)
[ANTC] (AT-130E
only)~
[13.6)- o;-;;--;::
[GND)~:
[START)~
[KEY] _.-till
Coaxial cable
Control cable (sold separately)
An optional OPC-566 is available
*For the AT-130, the [GND] terminal can be used instead of the [E] terminal.
0 Non-lcom tuner
Some non-lcom tuners may be used with the
IC-M71 0. Please consult your dealer or marina if
you wish to connect one. The following internal
settings may be required for connection.
Supplies 8 V when
pushing [TUNE].
59
Grounded when pushing (TUNE].
(used for
AT·130/AT-130E)
(default)
(Start port level) -------- ........
.....
Accepts "LOW'' as an Accepts "HIGH" as an answer back signal.
answer back signal.
[I DIJ (used for AT-130/AT-130E)(defau/t)
511
(Key
port input) -----------
19
