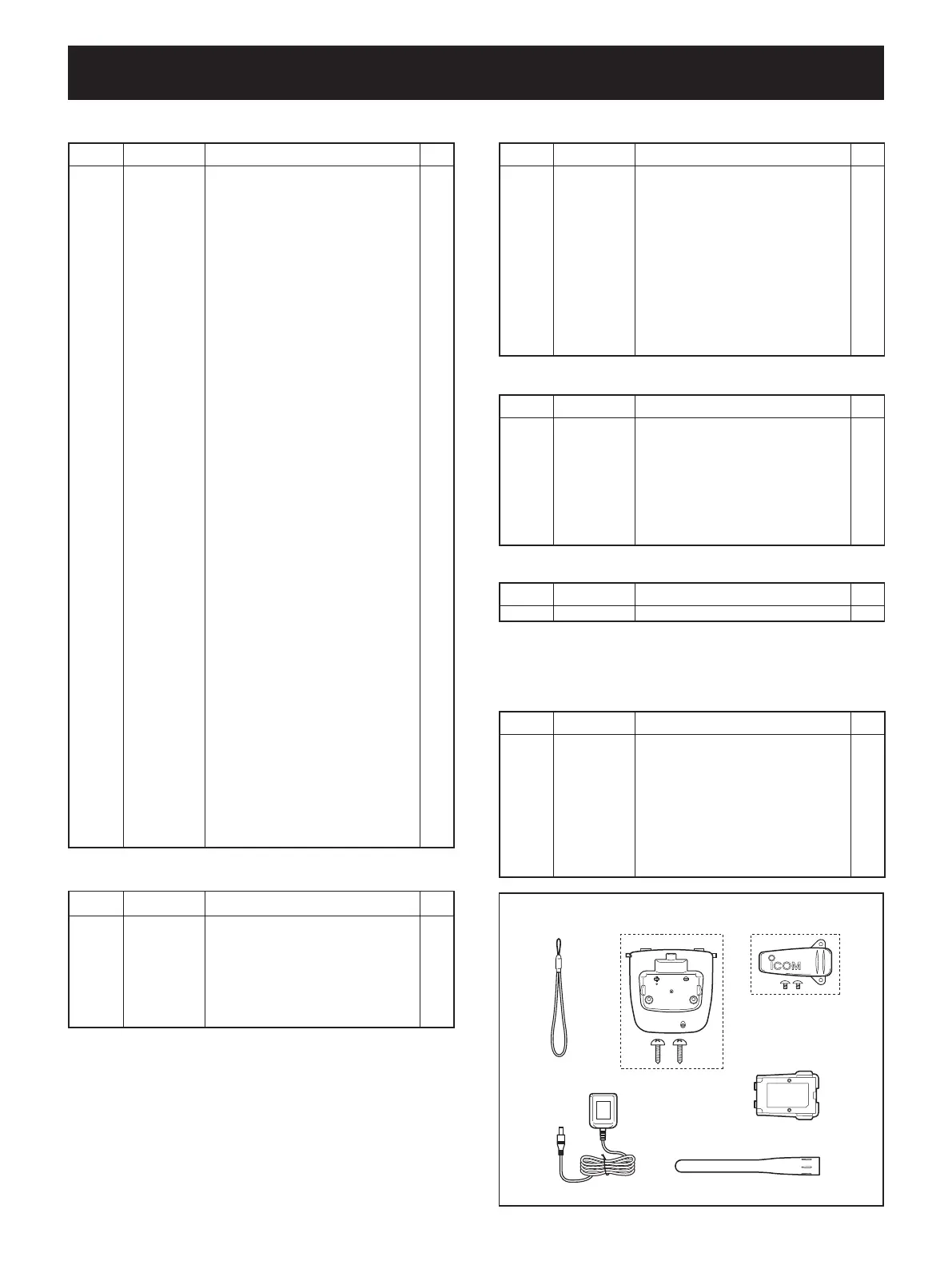

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
Screw abbreviations
B0, BT: Self-tapping PH: Pan head
NI-ZU: Nickel-Zinc ZK: Black
[RF UNIT]
[MAIN UNIT]
[VR BOARD]
REF. NO. ORDER NO. DESCRIPTION QTY.
EP1 Optional product Flexible antenna FA-S64V 1
EP2 Optional product AC adapter BC147A: [USA] [USA-1] 1
BC147E: [SEA] [SEA-1]
BM-95V: [AUS] [AUS-1]
EP3 Optional product Li-Ion battery pack BP-245 1
EP4 Optional product Battery charger BC-166 (Including two screws) 1
MP1 8010018080 Handstrap HK-009 1
MP2 Optional product Belt clip MB-103 (Including two screws) 1
[ACCESSORIES]






* Design is depended on versions.
[CHASSIS PARTS]
REF. NO. ORDER NO. DESCRIPTION QTY.
J1 6910017840 2905 ANT connector 1
J3 6510025340 2905 contact spring <AI> 1
W3 8900010960 OPC-1129 1
MP1 8210022470 2905 front panel (Including MP3, MP4, SP1) 1
MP2 8310065540 2905 window plate 1
MP3 8930068440 2905 keyboard 1
MP4 8930011900 SP Net (A) (FX-573) 1
MP5 8930068980 2905 vent sheet 2
MP6 8930069940 2905 A-MAIN seal 1
MP7 8010020320 2905 rear panel 1
MP8 8310065560 2905 T-plate 1
MP9 8930068500 2905 T-rubber 1
MP10 8930069910 2905 T-sheet 1
MP11 8810010450 Screw M2 × 3 SUS SSBC 2
MP12 8930068470 2905 PTT button 1
MP13 8210022480 2905 PTT panel 1
MP14 8810010630 Screw M2 × 3 SUS SSBC 1
MP15 8310065550 2905 lock plate 1
MP16 8930068970 2905 window sheet 1
MP17 8930069350 2905 MIC seal 1
MP18 8930051390 2304 shaft 1
MP19 8610012900 Knob N-344 1
MP20 8930057690 O Ring (AQ) 1
MP21 8830002770 VR nut (W) 1
MP22 8930053590 O Ring (AG) 1
MP23 8830001160 VR nut (K) 1
MP24 8850002770 Plain washer (AM) 1
MP26 8830002780 VR nut (X) 1
MP27 8930050660 2320 connector cap 1
MP28 8810009180 Screw B0 2 × 5 NI-ZU (BT) 2
MP29 8810010480 Screw B0 2 × 6 SUS SSBC 4
MP30 8810008970 Screw B0 2 × 3.5 NI-ZU (BT) 9
MP32 8810009161 Screw B0 2 × 20 SUS SSBC* 2
MP36 8610009240 Knob spring NO.7800P 1
MP37 8930055920 Insulated plate (GQ)
1
MP39 8930069620 2905 ant plate 1
MP40 8810006570 Screw M2 × 2 1
MP41 8310063400 Cution seal [USA] [USA-1] onry
1
MP42 8930065120 Sponge (IE) 1
SP1 2510001330 Speaker 036D0803 <FG> 1
REF. NO. ORDER NO. DESCRIPTION QTY.
MC250 7700002690 AM-627P-462C33 1
EP360 8930069010 SRCN-2905-SP-N-W 2
MP360 8210022490 2905 Reflector 1
MP361 8930068430 2905 LCD holder 1
MP362 8950004430 Double coated tape (O) 2
REF. NO. ORDER NO. DESCRIPTION QTY.
W470 8900014800 OPC-1573 1
J416 6510021941 246S-550-4P-68
EP451 6910012350 MMZ1608Y102BT 1
EP452 6910012350 MMZ1608Y102BT 1
EP454 6910012350 MMZ1608Y102BT 1
EP458 6910012350 MMZ1608Y102BT 1
REF. NO. ORDER NO. DESCRIPTION QTY.
S250 2260002800 SW-167 (SKQT) 1
S328 2260002800 SW-167 (SKQT) 1
EP2 6910014690 MPZ1608S221A 1
EP3 6910014690 MPZ1608S221A 1
MP20 8510016470 2775 VCO case 1
MP21 8510017520 2905 VCO cover 1
MP50 8410002620 2905 PA heatsink 1
MP51 8510017590 2905 Shield plate 1
MP52 8860001400 2905 Earth plate 1
MP53 8930069820 Insulation sheet (LN) 1
REF. NO. ORDER NO. DESCRIPTION QTY.
R801 7210003130 TP76N97N-13F-10KA-2497 1
[MIC BOARD]
