Icom IC-R2 - Operation Flow Charts: Set Mode; Set Mode and Expanded Set Mode Flows

33
12

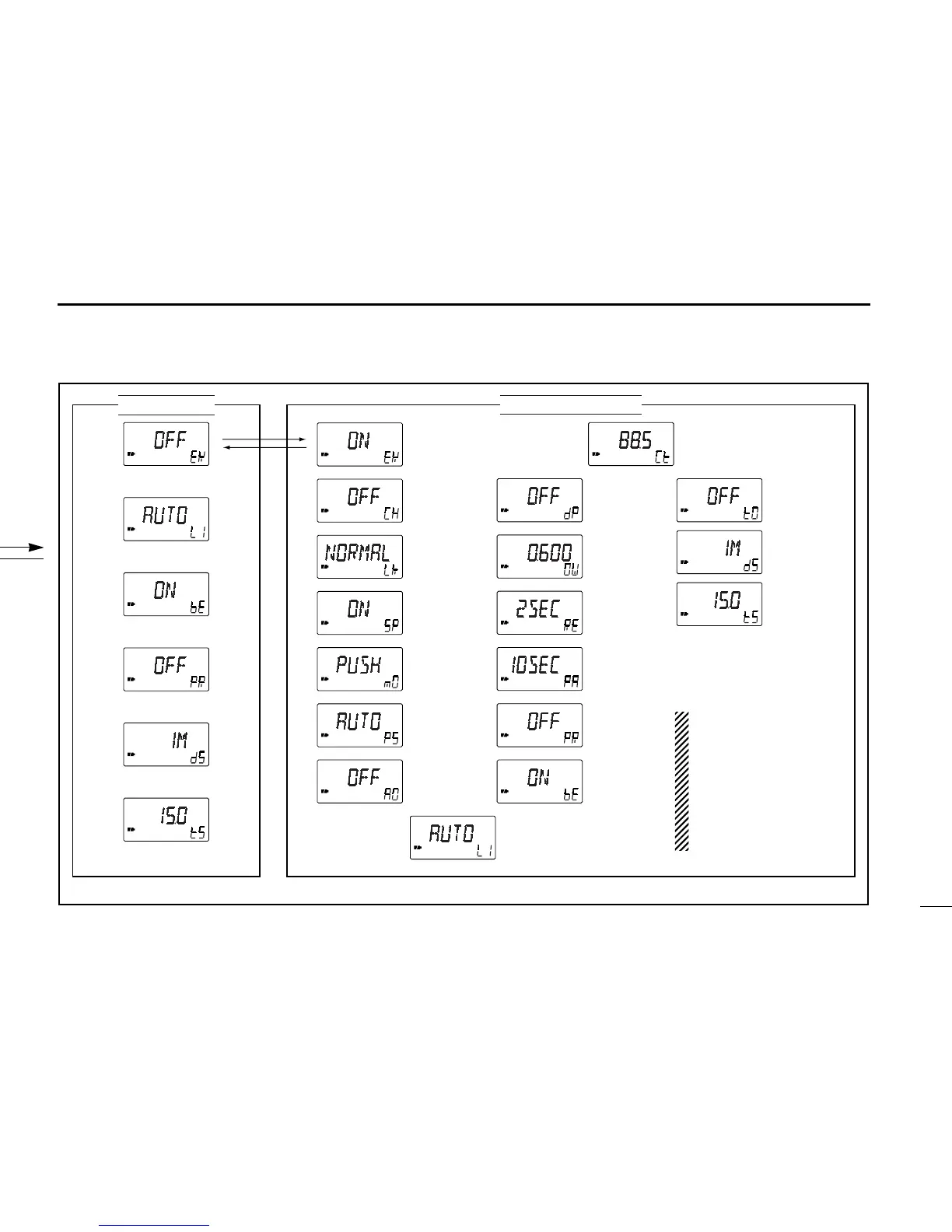

OPERATION FLOW CHART
TSQL
Backlighting
(p. 11)
Set mode
Expanded set mode
B Tuning step
(p. 7)
B Tuning step (p. 7)
B Dial select
step (p. 26)
B Dial select step (p. 26)
Tone squelch
(p. 22)
Tone squelch
tone (p. 22)
B Duplex
direction (p. 24)
B Offset
frequency
(p. 24)
Scan resume
time (p. 18)
Scan pause
time (p. 18)
Priority watch
(p. 21)
Priority watch (p. 21)
Confirmation
beep (p. 26)
Confirmation beep (p. 26)
Backlighting (p. 11)
Auto power
OFF (p. 27)
Power save
(p. 26)
Monitor switch
action (p. 27)
Dial speed
(p. 28)
Lock function
effect (p. 28)
Channel
indication mode
(p. 29)
Expanded set
mode (p. 25)
Expanded set mode (p. 25)
B: Does not appear within the broadcast band (0.495 – 1.620 MHz).
Displays for set and ex-
panded set modes show
the default settings (ex-
cept the expanded set
mode setting).
Rotate [DIAL] while push-
ing [FUNC] to change the
set mode condition.
