Icom IC-R5 Service Manual

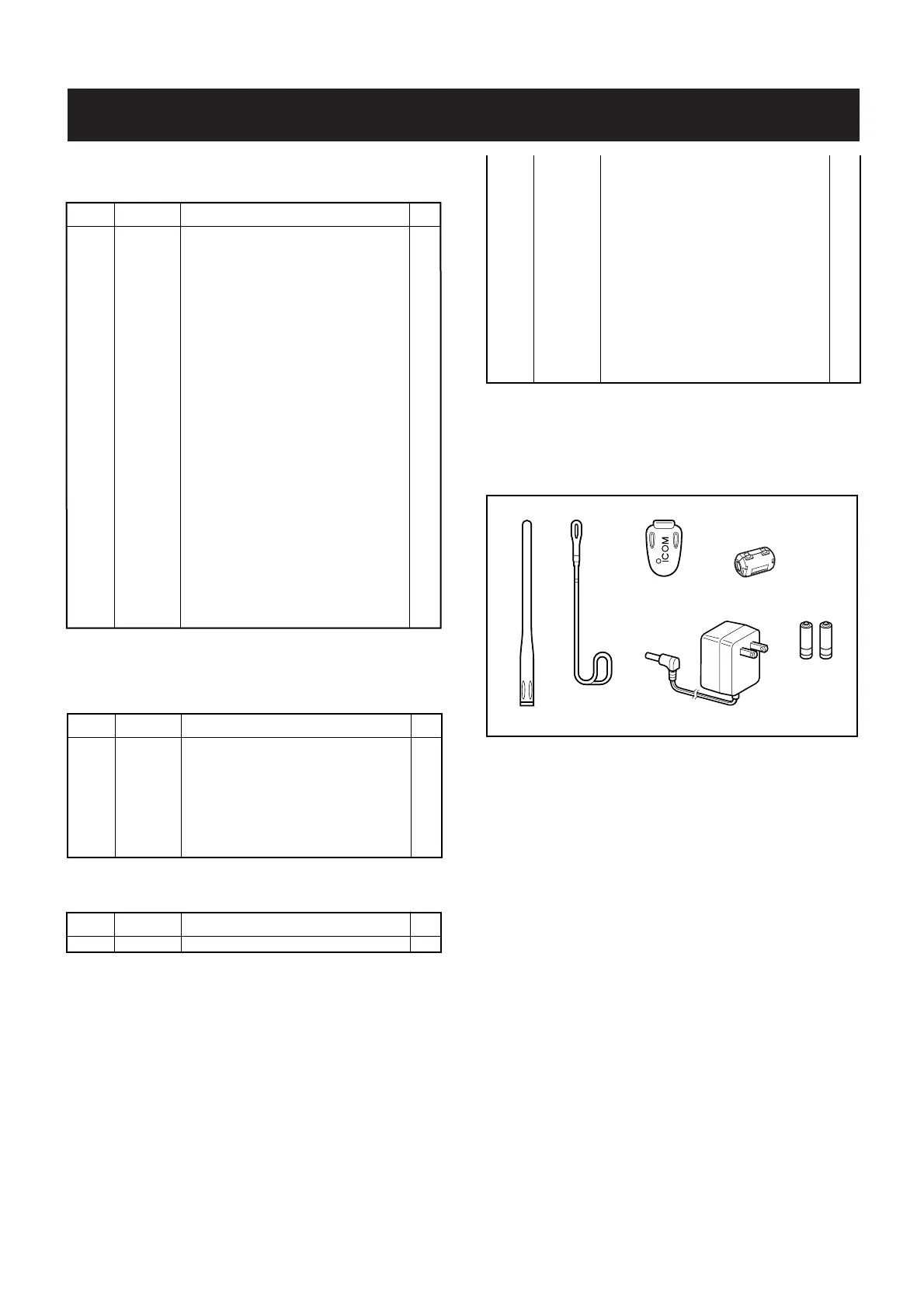

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
Screw abbreviations A, B0, BT: Self-tapping
PH: Pan head
FH: Flat head
ZK: Black
NI-ZU: Nickel-Zinc
REF. NO. ORDER NO. DESCRIPTION QTY.
J1 6510020951 Connector SMA-R226-1 1
SP1 2510000960 Speaker K036NA500-26A27 1
MP1 8210019070 2605 Front panel 1
MP2 8210019152 1995 Rear panel (A)-2 1
MP3 8110007841 1995 BATT cover (A)-1 1
MP4 8930058320 2605 7-key 1
MP5 8930058410 2605 PTT rubber 1
MP6 8930047610 2127 Jack cap 1
MP7 8310054250 2605 Window plate 1
MP8 8010019090 2605 Chassis 1
MP9 8930011900 Sheet SP net (A) 1
MP10 8830000570 Screw (A) 1
MP11 8830001090 Screw (D) 1
MP13 8110007851 1995 Lock cover (A)-1 1
MP14 8610010990 Knob N-284 1
MP15 8930044250 1995 BATT seal 1
MP17 8930044260 1995 A-terminal 1
MP18 8930044270 1995 B-terminal 1
MP19 8930044280 1995 C-terminal 1
MP20 8860001101 1995 ANT rug-1 1
MP22 8810008640 Screw FH B0 2X4 NI-ZU (BT) 3
MP23 8810009560 Screw PH B0 2X6 ZK (BT) 2
MP24 8930019791 891 T-rubber-1 2
MP26 8930058980 Sponge (GY) 1
MP28 8930058310 2605 DC cap 1
7-1 CABINET PARTS
[CHASSIS PARTS]
REF. NO. ODER NO. DESCRIPTION QTY.
DS1 5030001990 LCD TTR5169 1
EP3 6910014600 E.Other CV1071 1
EP4 8930058920 LCD contact 1
MP3 8930058400 2605 LCD holder 1
MP4 8810008640 Screw FH B0 2X4 NI-ZU (BT) 2
MP5 8510014970 2605 Logic shield 1
[LOGIC UNIT]
REF. NO. ODER NO. DESCRIPTION QTY.
J1 6510020120 S.Connector AXK6S40545P 1
[RF UNIT]
BT1 O tional roducts Nicd cel P-3GPT/BA2 2
Optional products Nicd cel P-3GPT/BA2 2
Optional products Nicd cel P-3GPA/BA2 2
Optional products Nicd cel P-3GPA/BA2 2
Optional products Nicd cel KRO.7AAUR SAFT 2
Optional products Nicd cel KRO.7AAUR SAFT 2
EP1
Optional products Antenna FA-270C 1
EP2
Optional products Charger BC-149A 1
Optional products Charger BC-149D 1
Optional products Charger BC-136A 1
Optional products Charger BC-136D 1
EP3
Optional products Bead ZCAT2436-1330A-BK-M 1
MP1 8930044191 Clip 1995 BELT CLIP-1 1
MP2 8010011960 Handle Strap belt HK-005 1
[
EXP
] only
[
USA
]
,
[
CAN
]
[
FRA
]
,
[
ESP
]
[
USA
]
,
[
CAN
]
only
[
EUR
]
,
[
FRA
]
,
[
ESP
]
only
[
EXP-01
]
only
[
EXP-02
]
only
EP1 MP2 MP1
*The design is depened on versions.
EP3
BT1EP2*
