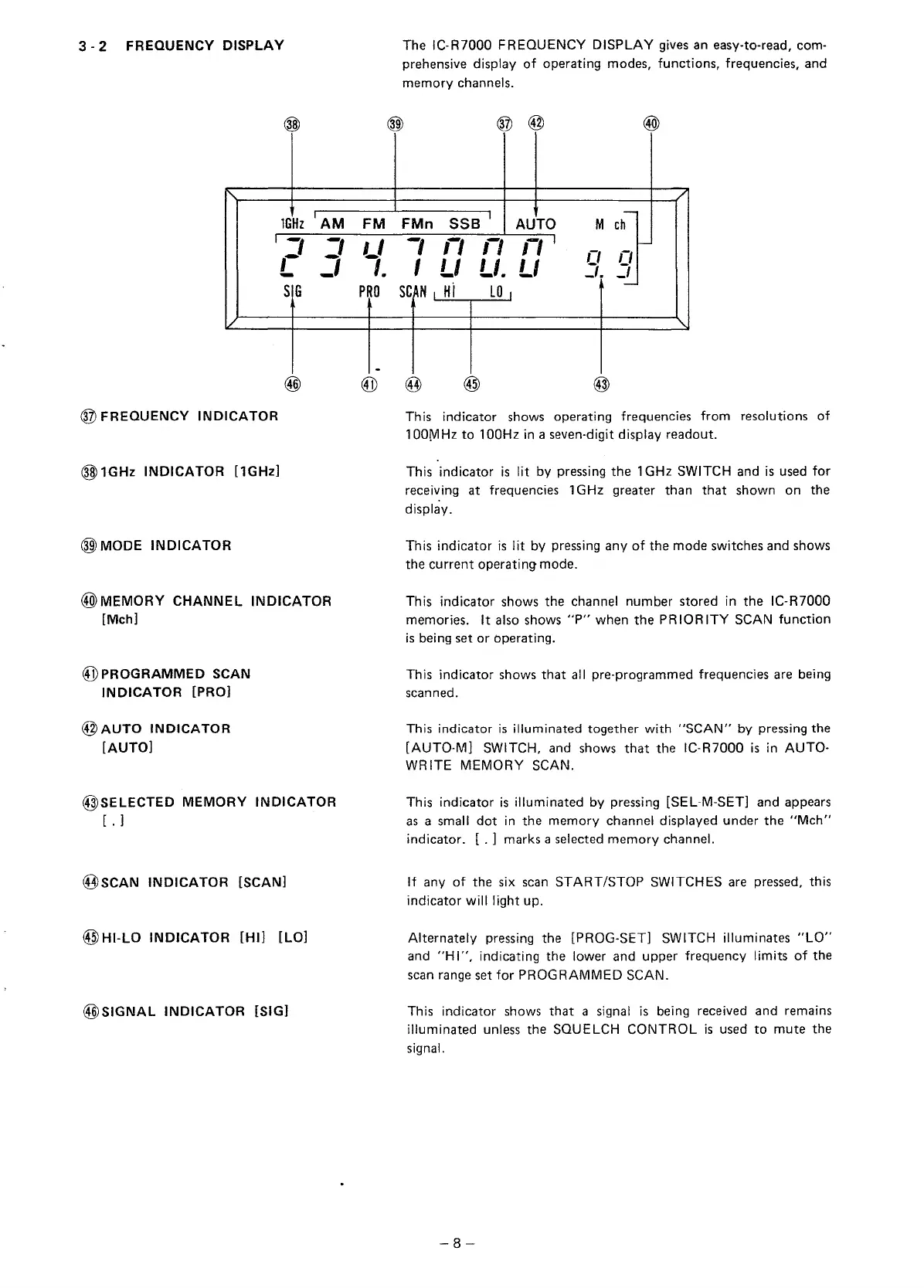

Icom IC-R7000 Instruction Manual

3 - 2 FREQUENCY DISPLAY
lGHz AM
I-,
c
-,
J
S G
/
@FREQUENCY INDICATOR
@1GHz INDICATOR [1GHz]
@MODE INDICATOR
@MEMORY CHANNEL INDICATOR
[Mch]
@PROGRAMMED SCAN
INDICATOR [PRO]
@AUTO INDICATOR
[AUTO]
@SELECTED MEMORY INDICATOR
[ .]
@SCAN INDICATOR [SCAN]
@HI-LO INDICATOR [HI] [LO]
@SIGNAL INDICATOR [SIG]
FM
Ll
I.
PRO
-
The IC-R7000 FREQUENCY DISPLAY gives an easy-to-read, com-
prehensive display of operating modes, functions, frequencies, and
memory channels.
/
-
FMn
SSB I
AUTO
M ch
-,
,-,
,-1
,-,I
f-
[I
[I
I
Ll
Ll.
Ll
-'·
_,
SCAN I Hi
L0
1
-
"
This indicator shows operating frequencies from resolutions of
100[V1Hz to 100Hz in a seven-digit display readout.
This indicator is lit by pressing the 1 GHz SWITCH and is used for
receiving at frequencies 1 GHz greater than that shown on the
display.
This
indicator is lit by pressing any of the mode switches and shows
the current operating mode.
This indicator shows the channel number stored in the IC-R7000
memories. It also shows "P" when the PR lOR ITY SCAN function
is being set or operating.
This indicator shows that all pre-programmed frequencies are being
scanned.
This indicator is illuminated together with "SCAN" by pressing the
[AUTO-M] SWITCH, and shows that the IC-R7000 is in AUTO-
WRITE MEMORY SCAN.
This indicator is illuminated by pressing [SEL-M-SET] and appears
as a small dot in the memory channel displayed under the "Mch"
indicator. [ . ] marks a selected memory channel.
If any of the six scan START/STOP SWITCHES are pressed, this
indicator will light up.
Alternately pressing the [PROG-SET] SWITCH illuminates "LO"
and "HI", indicating the lower and upper frequency limits of the
scan range set for PROGRAMMED SCAN.
This indicator shows that a signal is being received and remains
illuminated unless the SQUELCH CONTROL is used to mute the
signal.
-8-
