3-

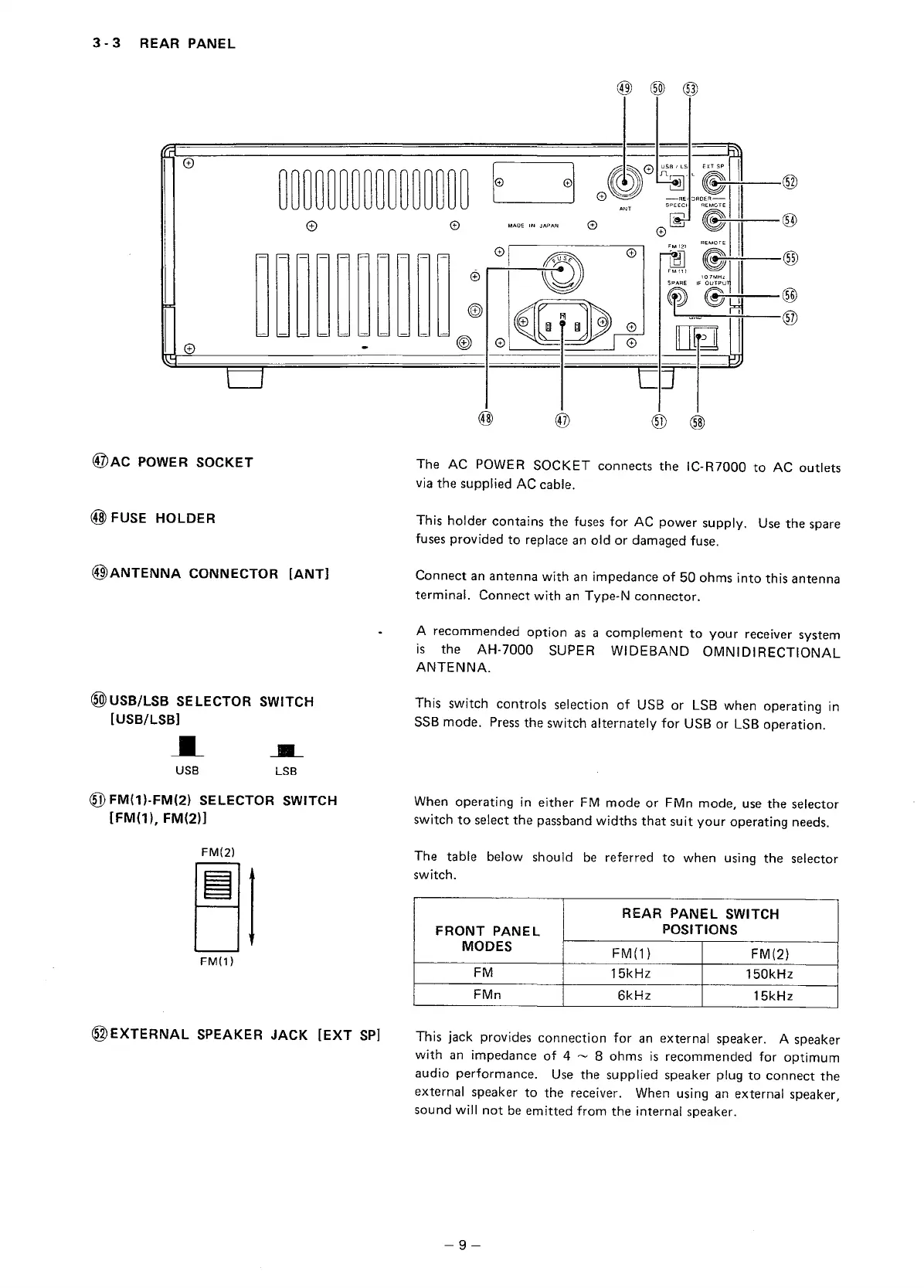

3 REAR PANEL
Fl
e
@AC
POWER SOCKET
@FUSE
HOLDER
@ANTENNA
CONNECTOR
[ANT]
(@)
USB/LSB SELECTOR SWITCH
[USB/LSB]
_._
---
USB
LSB
@FM(1)-FM(2)
SELECTOR SWITCH
[FM(1),
FM(2)]
FM(2)
~~
FM(1)
(@EXTERNAL
SPEAKER JACK
[EXT
SP]
MAOE
IN
JAPAN
@
The
AC POWER
SOCKET
connects
the
IC-R7000
to
AC
outlets
via
the
supplied
AC cable.
This
holder
contains
the
fuses
for
AC
power
supply.
Use
the
spare
fuses
provided
to
replace an
old
or
damaged
fuse.
Connect
an
antenna
with
an
impedance
of
50
ohms
into
this
antenna
terminal.
Connect
with
an Type-N
connector.
A
recommended
option
as a
complement
to
your
receiver
system
is
the
AH-7000
SUPER
WIDEBAND
OMNIDIRECTIONAL
ANTENNA.
This
switch
controls
selection
of
USB
or
LSB
when
operating
in
SSB
mode.
Press
the
switch
alternately
for
USB
or
LSB
operation.
When
operating
in
either
FM
mode
or
FMn
mode,
use
the
selector
switch
to
select
the
passband
widths
that
suit
your
operating
needs.
The
table
below
should
be
referred
to
when
using
the
selector
switch.
REAR PANEL SWITCH
FRONT
PANEL
POSITIONS
MODES
FM(1)
FM(2)
FM
15kHz
150kHz
FMn
6kHz
15kHz
This
jack
provides
connection
for
an
external
speaker.
A
speaker
with
an
impedance
of
4
~
8
ohms
is
recommended
for
optimum
audio
performance.
Use
the
supplied
speaker
plug
to
connect
the
external
speaker
to
the
receiver. When using an
external
speaker,
sound
will
not
be
emitted
from
the
internal
speaker.
-9-
