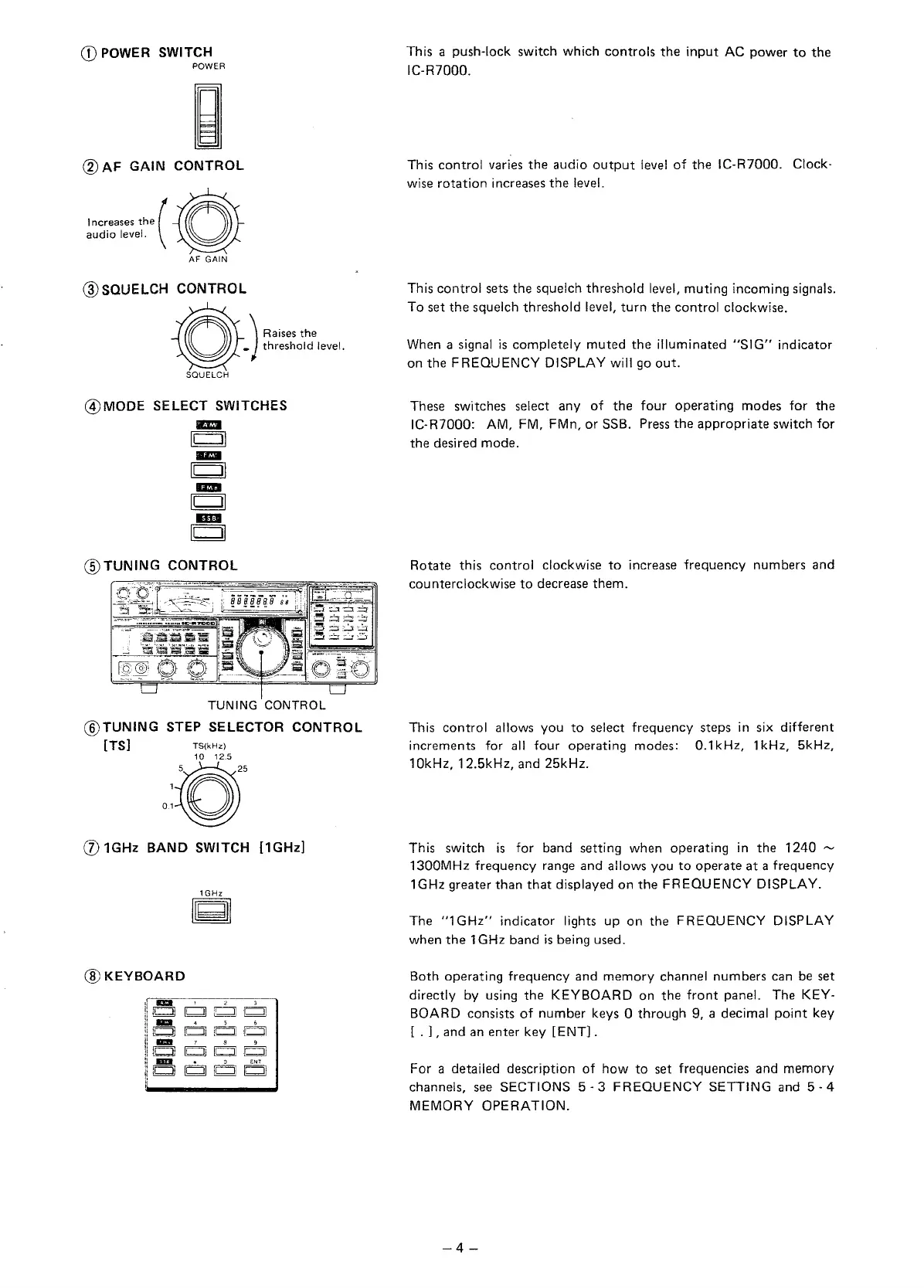

Icom IC-R7000 Instruction Manual

CD POWER SWITCH
POWER
@ AF GAIN CONTROL
Increases the ( 0
audio level. -y-
AF GAIN
@SQUELCH CONTROL
0-) ~~:::~~~~'lwei
SQUELCH
@MODE SELECT SWITCHES
lliD
II II
-
II II
-
II II
l:ml
II II
@TUNING CONTROL
TUNING CONTROL
@TUNING STEP SELECTOR CONTROL
[TS] TS(kHz)
30"
(j) 1GHz BAND SWITCH [1GHz]
1GHz
~
@KEYBOARD
1 2 3
[g] ~ lg]
l6l6t6
' g 9
IQ [Q] [Q]
[Q]r6~
This a push-lock switch which controls the input AC power to the
IC-R7000.
This control varies the audio output level of the IC-R7000. Clock-
wise rotation increases the level.
This control sets the squelch threshold level, muting incoming signals.
To set the squelch threshold level, turn the control clockwise.
When a signal is completely muted the illuminated "SIG" indicator
on the FREQUENCY DISPLAY will go out.
These switches select any of the four operating modes for the
IC-R7000: AM, FM, FMn, or SSB. Press the appropriate switch for
the desired mode.
Rotate this control clockwise to increase frequency numbers and
counterclockwise to decrease them.
This control allows you to select frequency steps in six different
increments for all four operating modes: 0.1 kHz, 1kHz, 5kHz,
1OkHz, 12.5kHz, and 25kHz.
This switch is for band setting when operating in the 1240 ~
1300MHz frequency range and allows you to operate at a frequency
1GHz greater than that displayed on the FREQUENCY DISPLAY.
The "1GHz" indicator lights up on the FREQUENCY DISPLAY
when the 1 GHz band is being used.
Both operating frequency and memory channel numbers can be set
directly by using the KEYBOARD on the front panel. The KEY-
BOARD
consists of number keys 0 through 9, a decimal point key
[ . ]
, and an enter key [ENT].
For a detailed description of how to set frequencies and memory
channels, see SECTIONS 5-3 FREQUENCY SETTING and 5-4
MEMORY OPERATION.
-4-
