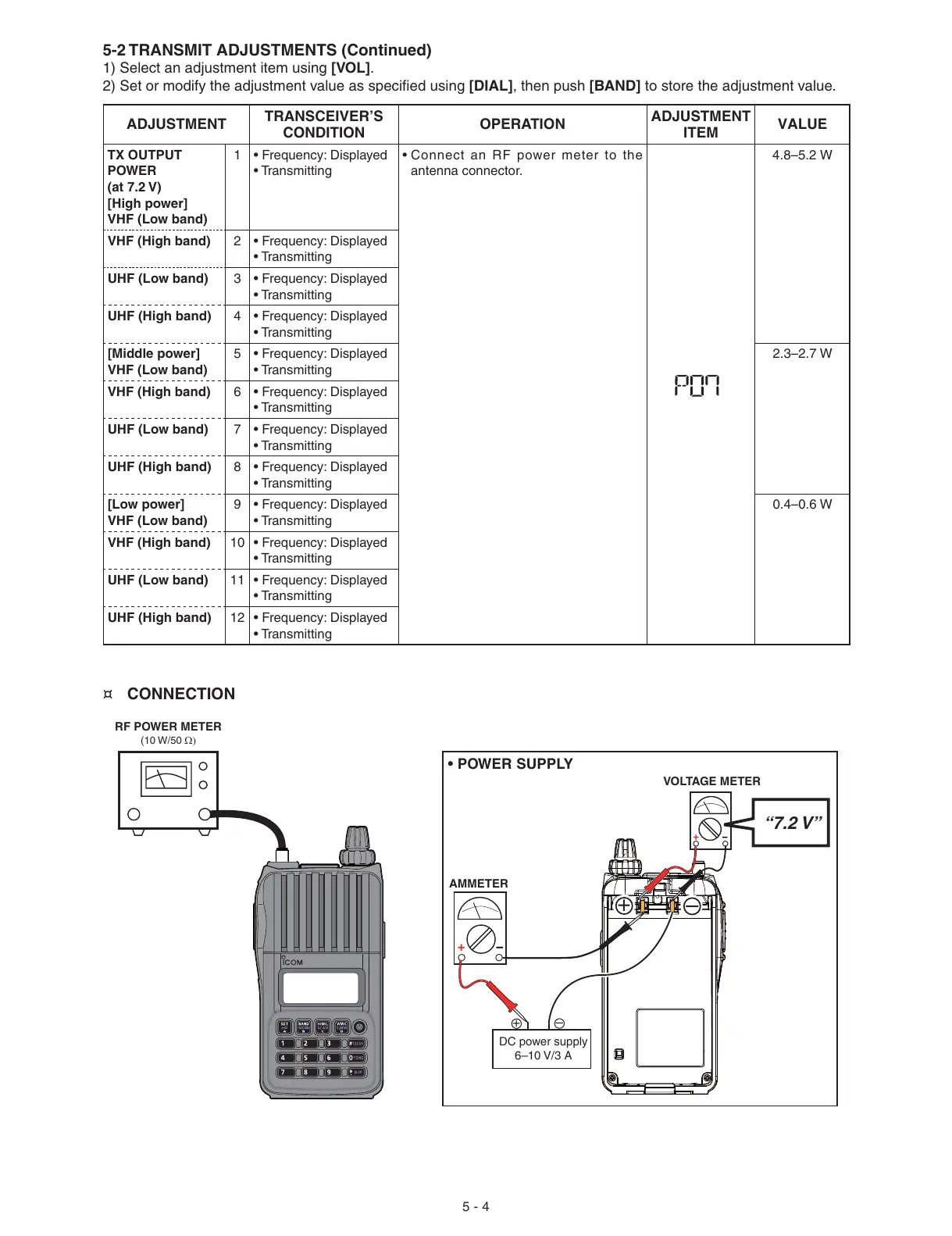

Icom IC-T70A Service Manual

5 - 4
• POWER SUPPLY
¤ CONNECTION
AMMETER
+
−
DC power supply
6–10 V/3 A
+
–
“7.2 V”
VOLTAGE METER
+
−
+
–
RF POWER METER
(10 W/50 Ω)
ADJUSTMENT
TRANSCEIVER’S
CONDITION
OPERATION
ADJUSTMENT
ITEM
VALUE
TX OUTPUT
POWER
(at 7.2 V)
[High power]
VHF (Low band)
1 • Frequency: Displayed
• Transmitting
• Connect an RF power meter to the
antenna connector.
4.8–5.2 W
VHF (High band) 2 • Frequency: Displayed
• Transmitting
UHF (Low band) 3 • Frequency: Displayed
• Transmitting
UHF (High band) 4 • Frequency: Displayed
• Transmitting
[Middle power]
VHF (Low band)
5 • Frequency: Displayed
• Transmitting
2.3–2.7 W
VHF (High band) 6 • Frequency: Displayed
• Transmitting
UHF (Low band) 7 • Frequency: Displayed
• Transmitting
UHF (High band) 8 • Frequency: Displayed
• Transmitting
[Low power]
VHF (Low band)
9 • Frequency: Displayed
• Transmitting
0.4–0.6 W
VHF (High band) 10 • Frequency: Displayed
• Transmitting
UHF (Low band) 11 • Frequency: Displayed
• Transmitting
UHF (High band) 12 • Frequency: Displayed
• Transmitting
5-2 TRANSMIT ADJUSTMENTS (Continued)
1) Select an adjustment item using [VOL].
2) Set or modify the adjustment value as specifi ed using [DIAL], then push [BAND] to store the adjustment value.
