Icom IC-T70A Service Manual

5 - 12
STANDARD SIGNAL GENERATOR
(0.1 – 600 MHz)
SETTING;
Modulation : 1 kHz
Deviation : ±3.5 kHz

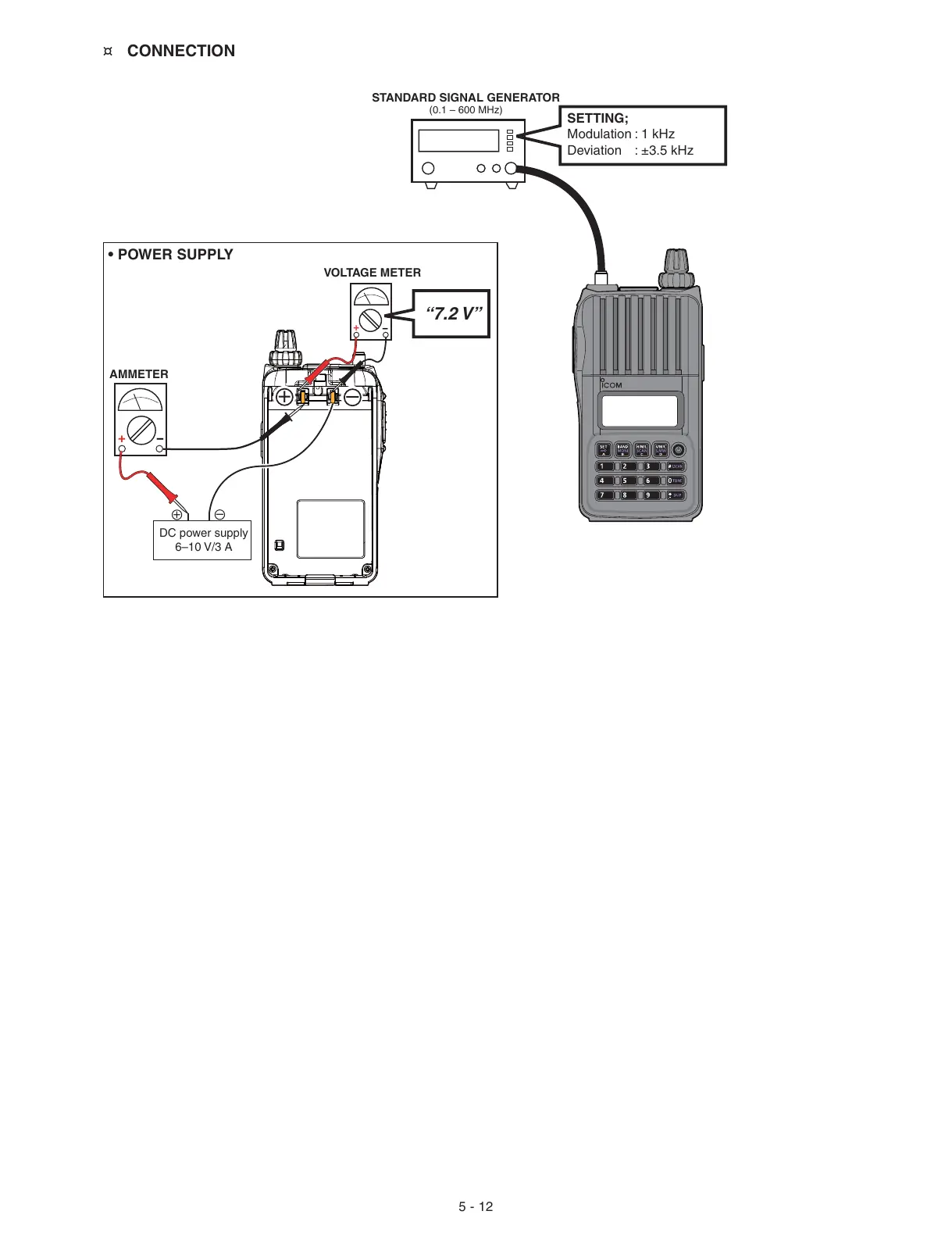

¤ CONNECTION
• POWER SUPPLY
AMMETER
+
−
DC power supply
6–10 V/3 A
+
–
“7.2 V”
VOLTAGE METER
+
−
+
–
All manuals and user guides at all-guides.com

Icom IC-T70A Specifications

General

Operating frequency	144 – 148, 440 – 450 MHz
Display type	LCD
Backlight display	Yes
Antenna connector type	FA-S270C
Number of antenna connectors	1
Battery type	BP-265
Product color	Black
Operating temperature (T-T)	-20 - 60 °C
Number of batteries included	1 pc(s)

Weight and Dimensions

Depth	30 mm
Width	58 mm
Height	111 mm
Weight	380 g
