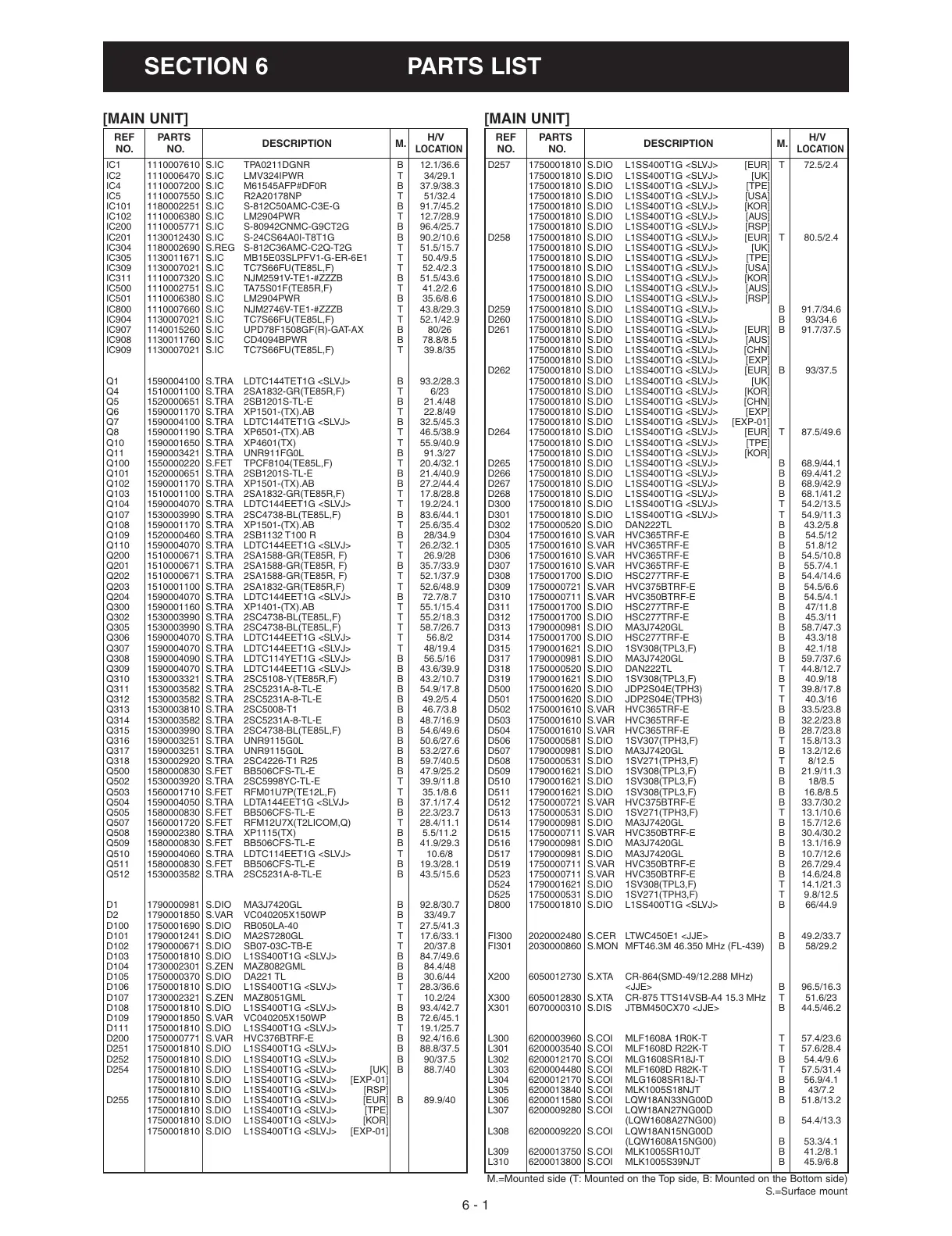

PARTS LIST
IC1 1110007610 S.IC TPA0211DGNR B 12.1/36.6
IC2 1110006470 S.IC LMV324IPWR T 34/29.1
IC4 1110007200 S.IC M61545AFP#DF0R B 37.9/38.3
IC5 1110007550 S.IC R2A20178NP T 51/32.4
IC101 1180002251 S.IC S-812C50AMC-C3E-G B 91.7/45.2
IC102 1110006380 S.IC LM2904PWR T 12.7/28.9
IC200 1110005771 S.IC S-80942CNMC-G9CT2G B 96.4/25.7
IC201 1130012430 S.IC S-24CS64A0I-T8T1G B 90.2/10.6
IC304 1180002690 S.REG S-812C36AMC-C2Q-T2G T 51.5/15.7
IC305 1130011671 S.IC MB15E03SLPFV1-G-ER-6E1 T 50.4/9.5
IC309 1130007021 S.IC TC7S66FU(TE85L,F) T 52.4/2.3
IC311 1110007320 S.IC NJM2591V-TE1-#ZZZB B 51.5/43.6
IC500 1110002751 S.IC TA75S01F(TE85R,F) T 41.2/2.6
IC501 1110006380 S.IC LM2904PWR B 35.6/8.6
IC800 1110007660 S.IC NJM2746V-TE1-#ZZZB T 43.8/29.3
IC904 1130007021 S.IC TC7S66FU(TE85L,F) T 52.1/42.9
IC907 1140015260 S.IC UPD78F1508GF(R)-GAT-AX B 80/26
IC908 1130011760 S.IC CD4094BPWR B 78.8/8.5
IC909 1130007021 S.IC TC7S66FU(TE85L,F) T 39.8/35
Q1 1590004100 S.TRA LDTC144TET1G <SLVJ> B 93.2/28.3
Q4 1510001100 S.TRA 2SA1832-GR(TE85R,F) T 6/23
Q5 1520000651 S.TRA 2SB1201S-TL-E B 21.4/48
Q6 1590001170 S.TRA XP1501-(TX).AB T 22.8/49
Q7 1590004100 S.TRA LDTC144TET1G <SLVJ> B 32.5/45.3
Q8 1590001190 S.TRA XP6501-(TX).AB T 46.5/38.9
Q10 1590001650 S.TRA XP4601(TX) T 55.9/40.9
Q11 1590003421 S.TRA UNR911FG0L B 91.3/27
Q100 1550000220 S.FET TPCF8104(TE85L,F) T 20.4/32.1
Q101 1520000651 S.TRA 2SB1201S-TL-E B 21.4/40.9
Q102 1590001170 S.TRA XP1501-(TX).AB B 27.2/44.4
Q103 1510001100 S.TRA 2SA1832-GR(TE85R,F) T 17.8/28.8
Q104 1590004070 S.TRA LDTC144EET1G <SLVJ> T 19.2/24.1
Q107 1530003990 S.TRA 2SC4738-BL(TE85L,F) B 83.6/44.1
Q108 1590001170 S.TRA XP1501-(TX).AB T 25.6/35.4
Q109 1520000460 S.TRA 2SB1132 T100 R B 28/34.9
Q110 1590004070 S.TRA LDTC144EET1G <SLVJ> T 26.2/32.1
Q200 1510000671 S.TRA 2SA1588-GR(TE85R, F) T 26.9/28
Q201 1510000671 S.TRA 2SA1588-GR(TE85R, F) B 35.7/33.9
Q202 1510000671 S.TRA 2SA1588-GR(TE85R, F) T 52.1/37.9
Q203 1510001100 S.TRA 2SA1832-GR(TE85R,F) T 52.6/48.9
Q204 1590004070 S.TRA LDTC144EET1G <SLVJ> B 72.7/8.7
Q300 1590001160 S.TRA XP1401-(TX).AB T 55.1/15.4
Q302 1530003990 S.TRA 2SC4738-BL(TE85L,F) T 55.2/18.3
Q305 1530003990 S.TRA 2SC4738-BL(TE85L,F) T 58.7/26.7
Q306 1590004070 S.TRA LDTC144EET1G <SLVJ> T 56.8/2
Q307 1590004070 S.TRA LDTC144EET1G <SLVJ> T 48/19.4
Q308 1590004090 S.TRA LDTC114YET1G <SLVJ> B 56.5/16
Q309 1590004070 S.TRA LDTC144EET1G <SLVJ> B 43.6/39.9
Q310 1530003321 S.TRA 2SC5108-Y(TE85R,F) B 43.2/10.7
Q311 1530003582 S.TRA 2SC5231A-8-TL-E B 54.9/17.8
Q312 1530003582 S.TRA 2SC5231A-8-TL-E B 49.2/5.4
Q313 1530003810 S.TRA 2SC5008-T1 B 46.7/3.8
Q314 1530003582 S.TRA 2SC5231A-8-TL-E B 48.7/16.9
Q315 1530003990 S.TRA 2SC4738-BL(TE85L,F) B 54.6/49.6
Q316 1590003251 S.TRA UNR9115G0L B 50.6/27.6
Q317 1590003251 S.TRA UNR9115G0L B 53.2/27.6
Q318 1530002920 S.TRA 2SC4226-T1 R25 B 59.7/40.5
Q500 1580000830 S.FET BB506CFS-TL-E B 47.9/25.2
Q502 1530003920 S.TRA 2SC5998YC-TL-E T 39.9/11.8
Q503 1560001710 S.FET RFM01U7P(TE12L,F) T 35.1/8.6
Q504 1590004050 S.TRA LDTA144EET1G <SLVJ> B 37.1/17.4
Q505 1580000830 S.FET BB506CFS-TL-E B 22.3/23.7
Q507 1560001720 S.FET RFM12U7X(T2LICOM,Q) T 28.4/11.1
Q508 1590002380 S.TRA XP1115(TX) B 5.5/11.2
Q509 1580000830 S.FET BB506CFS-TL-E B 41.9/29.3
Q510 1590004060 S.TRA LDTC114EET1G <SLVJ> T 10.6/8
Q511 1580000830 S.FET BB506CFS-TL-E B 19.3/28.1
Q512 1530003582 S.TRA 2SC5231A-8-TL-E B 43.5/15.6
D1 1790000981 S.DIO MA3J7420GL B 92.8/30.7
D2 1790001850 S.VAR VC040205X150WP B 33/49.7
D100 1750001690 S.DIO RB050LA-40 T 27.5/41.3
D101 1790001241 S.DIO MA2S7280GL T 17.6/33.1
D102 1790000671 S.DIO SB07-03C-TB-E T 20/37.8
D103 1750001810 S.DIO L1SS400T1G <SLVJ> B 84.7/49.6
D104 1730002301 S.ZEN MAZ8082GML B 84.4/48
D105 1750000370 S.DIO DA221 TL B 30.6/44
D106 1750001810 S.DIO L1SS400T1G <SLVJ> T 28.3/36.6
D107 1730002321 S.ZEN MAZ8051GML T 10.2/24
D108 1750001810 S.DIO L1SS400T1G <SLVJ> B 93.4/42.7
D109 1790001850 S.VAR VC040205X150WP B 72.6/45.1
D111 1750001810 S.DIO L1SS400T1G <SLVJ> T 19.1/25.7
D200 1750000771 S.VAR HVC376BTRF-E B 92.4/16.6
D251 1750001810 S.DIO L1SS400T1G <SLVJ> B 88.8/37.5
D252 1750001810 S.DIO L1SS400T1G <SLVJ> B 90/37.5
D254 1750001810 S.DIO L1SS400T1G <SLVJ> [UK] B 88.7/40
1750001810 S.DIO L1SS400T1G <SLVJ> [EXP-01]
1750001810 S.DIO L1SS400T1G <SLVJ> [RSP]
D255 1750001810 S.DIO L1SS400T1G <SLVJ> [EUR] B 89.9/40
1750001810 S.DIO L1SS400T1G <SLVJ> [TPE]
1750001810 S.DIO L1SS400T1G <SLVJ> [KOR]
1750001810 S.DIO L1SS400T1G <SLVJ> [EXP-01]
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
D257 1750001810 S.DIO L1SS400T1G <SLVJ> [EUR] T 72.5/2.4
1750001810 S.DIO L1SS400T1G <SLVJ> [UK]
1750001810 S.DIO L1SS400T1G <SLVJ> [TPE]
1750001810 S.DIO L1SS400T1G <SLVJ> [USA]
1750001810 S.DIO L1SS400T1G <SLVJ> [KOR]
1750001810 S.DIO L1SS400T1G <SLVJ> [AUS]
1750001810 S.DIO L1SS400T1G <SLVJ> [RSP]
D258 1750001810 S.DIO L1SS400T1G <SLVJ> [EUR] T 80.5/2.4
1750001810 S.DIO L1SS400T1G <SLVJ> [UK]
1750001810 S.DIO L1SS400T1G <SLVJ> [TPE]
1750001810 S.DIO L1SS400T1G <SLVJ> [USA]
1750001810 S.DIO L1SS400T1G <SLVJ> [KOR]
1750001810 S.DIO L1SS400T1G <SLVJ> [AUS]
1750001810 S.DIO L1SS400T1G <SLVJ> [RSP]
D259 1750001810 S.DIO L1SS400T1G <SLVJ> B 91.7/34.6
D260 1750001810 S.DIO L1SS400T1G <SLVJ> B 93/34.6
D261 1750001810 S.DIO L1SS400T1G <SLVJ> [EUR] B 91.7/37.5
1750001810 S.DIO L1SS400T1G <SLVJ> [AUS]
1750001810 S.DIO L1SS400T1G <SLVJ> [CHN]
1750001810 S.DIO L1SS400T1G <SLVJ> [EXP]
D262 1750001810 S.DIO L1SS400T1G <SLVJ> [EUR] B 93/37.5
1750001810 S.DIO L1SS400T1G <SLVJ> [UK]
1750001810 S.DIO L1SS400T1G <SLVJ> [KOR]
1750001810 S.DIO L1SS400T1G <SLVJ> [CHN]
1750001810 S.DIO L1SS400T1G <SLVJ> [EXP]
1750001810 S.DIO L1SS400T1G <SLVJ> [EXP-01]
D264 1750001810 S.DIO L1SS400T1G <SLVJ> [EUR] T 87.5/49.6
1750001810 S.DIO L1SS400T1G <SLVJ> [TPE]
1750001810 S.DIO L1SS400T1G <SLVJ> [KOR]
D265 1750001810 S.DIO L1SS400T1G <SLVJ> B 68.9/44.1
D266 1750001810 S.DIO L1SS400T1G <SLVJ> B 69.4/41.2
D267 1750001810 S.DIO L1SS400T1G <SLVJ> B 68.9/42.9
D268 1750001810 S.DIO L1SS400T1G <SLVJ> B 68.1/41.2
D300 1750001810 S.DIO L1SS400T1G <SLVJ> T 54.2/13.5
D301 1750001810 S.DIO L1SS400T1G <SLVJ> T 54.9/11.3
D302 1750000520 S.DIO DAN222TL B 43.2/5.8
D304 1750001610 S.VAR HVC365TRF-E B 54.5/12
D305 1750001610 S.VAR HVC365TRF-E B 51.8/12
D306 1750001610 S.VAR HVC365TRF-E B 54.5/10.8
D307 1750001610 S.VAR HVC365TRF-E B 55.7/4.1
D308 1750001700 S.DIO HSC277TRF-E B 54.4/14.6
D309 1750000721 S.VAR HVC375BTRF-E B 54.5/6.6
D310 1750000711 S.VAR HVC350BTRF-E B 54.5/4.1
D311 1750001700 S.DIO HSC277TRF-E B 47/11.8
D312 1750001700 S.DIO HSC277TRF-E B 45.3/11
D313 1790000981 S.DIO MA3J7420GL B 58.7/47.3
D314 1750001700 S.DIO HSC277TRF-E B 43.3/18
D315 1790001621 S.DIO 1SV308(TPL3,F) B 42.1/18
D317 1790000981 S.DIO MA3J7420GL B 59.7/37.6
D318 1750000520 S.DIO DAN222TL T 44.8/12.7
D319 1790001621 S.DIO 1SV308(TPL3,F) B 40.9/18
D500 1750001620 S.DIO JDP2S04E(TPH3) T 39.8/17.8
D501 1750001620 S.DIO JDP2S04E(TPH3) T 40.3/16
D502 1750001610 S.VAR HVC365TRF-E B 33.5/23.8
D503 1750001610 S.VAR HVC365TRF-E B 32.2/23.8
D504 1750001610 S.VAR HVC365TRF-E B 28.7/23.8
D506 1750000581 S.DIO 1SV307(TPH3,F) T 15.8/13.3
D507 1790000981 S.DIO MA3J7420GL B 13.2/12.6
D508 1750000531 S.DIO 1SV271(TPH3,F) T 8/12.5
D509 1790001621 S.DIO 1SV308(TPL3,F) B 21.9/11.3
D510 1790001621 S.DIO 1SV308(TPL3,F) B 18/8.5
D511 1790001621 S.DIO 1SV308(TPL3,F) B 16.8/8.5
D512 1750000721 S.VAR HVC375BTRF-E B 33.7/30.2
D513 1750000531 S.DIO 1SV271(TPH3,F) T 13.1/10.6
D514 1790000981 S.DIO MA3J7420GL B 15.7/12.6
D515 1750000711 S.VAR HVC350BTRF-E B 30.4/30.2
D516 1790000981 S.DIO MA3J7420GL B 13.1/16.9
D517 1790000981 S.DIO MA3J7420GL B 10.7/12.6
D519 1750000711 S.VAR HVC350BTRF-E B 26.7/29.4
D523 1750000711 S.VAR HVC350BTRF-E B 14.6/24.8
D524 1790001621 S.DIO 1SV308(TPL3,F) T 14.1/21.3
D525 1750000531 S.DIO 1SV271(TPH3,F) T 9.8/12.5
D800 1750001810 S.DIO L1SS400T1G <SLVJ> B 66/44.9
FI300 2020002480 S.CER LTWC450E1 <JJE> B 49.2/33.7
FI301 2030000860 S.MON MFT46.3M 46.350 MHz (FL-439) B 58/29.2
X200 6050012730 S.XTA CR-864(SMD-49/12.288 MHz)
<JJE> B 96.5/16.3
X300 6050012830 S.XTA CR-875 TTS14VSB-A4 15.3 MHz T 51.6/23
X301 6070000310 S.DIS JTBM450CX70 <JJE> B 44.5/46.2
L300 6200003960 S.COI MLF1608A 1R0K-T T 57.4/23.6
L301 6200003540 S.COI MLF1608D R22K-T T 57.6/28.4
L302 6200012170 S.COI MLG1608SR18J-T B 54.4/9.6
L303 6200004480 S.COI MLF1608D R82K-T T 57.5/31.4
L304 6200012170 S.COI MLG1608SR18J-T B 56.9/4.1
L305 6200013840 S.COI MLK1005S18NJT B 43/7.2
L306 6200011580 S.COI LQW18AN33NG00D B 51.8/13.2
L307 6200009280 S.COI LQW18AN27NG00D
(LQW1608A27NG00) B 54.4/13.3
L308 6200009220 S.COI LQW18AN15NG00D
(LQW1608A15NG00) B 53.3/4.1
L309 6200013750 S.COI MLK1005SR10JT B 41.2/8.1
L310 6200013800 S.COI MLK1005S39NJT B 45.9/6.8
To Next Page
