Icom IC-V200 Instruction Manual

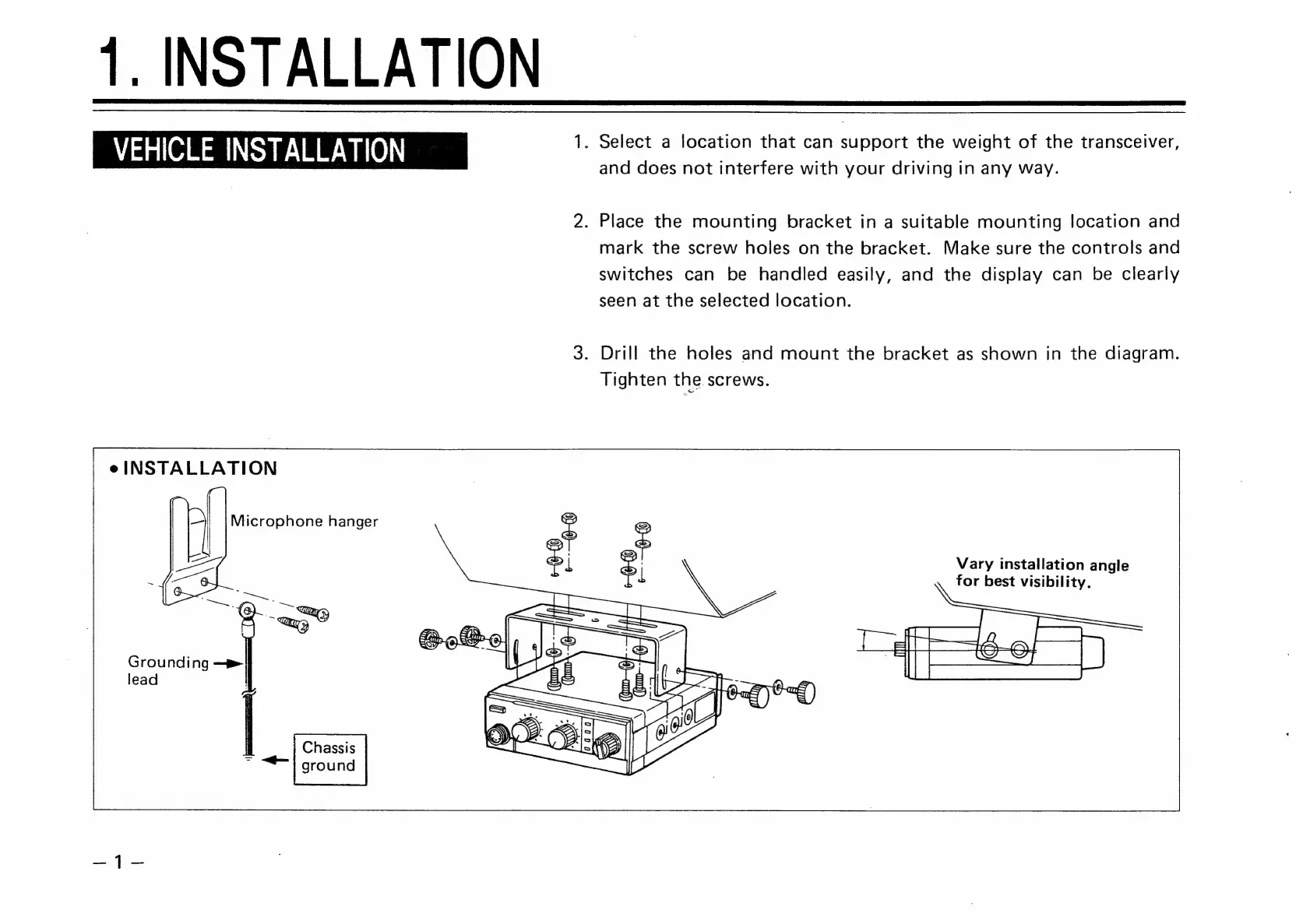

1. INSTALLATION
VEHICLE
INSTALLATION
1.
Select
a
location
that
can
Suppo
the
weight
of
the
transceiver,
and does not interfere with your driving in any way.
. Place the mounting bracket in a suitable mounting location and
mark the screw holes on the bracket. Make sure the controls and
switches can be handled easily, and the display can be clearly
seen at the selected location.
. Drill the holes and mount the bracket as shown in the diagram.
Tighten the screws.
e INSTALLATION
Vary installation angle
for best visibility.
——
Grounding =>
lead
