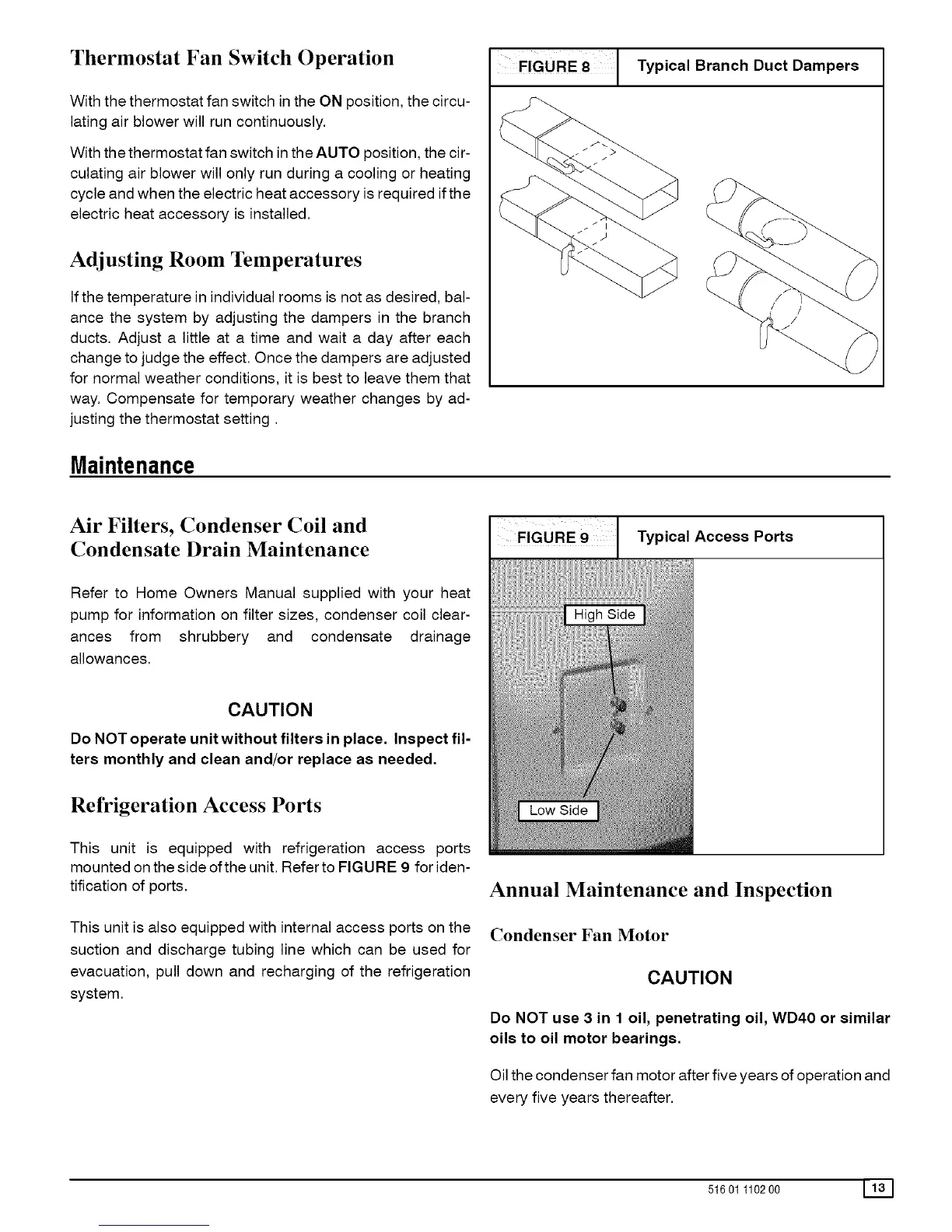

Thermostat Fan Switch Operation
With the thermostat fan switch in the ON position, the circu-
lating air blower will run continuously.
With the thermostat fan switch in the AUTO position, the cir-
culating air blower will only run during a cooling or heating
cycle and when the electric heat accessory is required ifthe
electric heat accessory is installed,
Adjusting Room Temperatures
Ifthe temperature in individual rooms is not as desired, bal-
ance the system by adjusting the dampers in the branch
ducts. Adjust a little at a time and wait a day after each
change to judge the effect. Once the dampers are adjusted
for normal weather conditions, it is best to leave them that
way. Compensate for temporary weather changes by ad-
justing the thermostat setting.
Maintenance
FIGURE 8 1 Typical Branch Duct Dampers
Air Filters, Condenser Coil and
Condensate Drain Maintenance
Refer to Home Owners Manual supplied with your heat
pump for information on filter sizes, condenser coil clear-
ances from shrubbery and condensate drainage
allowances.
Typical Access Ports
CAUTION
Do NOToperate unit without filters in place. Inspect fil-
ters monthly and clean and/or replace as needed.
Refrigeration Access Ports
This unit is equipped with refrigeration access ports
mounted on the side ofthe unit. Refer to FIGURE 9 for iden-
tification of ports.
This unit is also equipped with internal access ports on the
suction and discharge tubing line which can be used for
evacuation, pull down and recharging of the refrigeration
system.
Annual Maintenance and Inspection
Condenser Fan Motor
CAUTION
Do NOT use 3 in 1 oil, penetrating oil, WD40 or similar
oils to oil motor bearings.
Oil the condenser fan motor after five years of operation and
every five years thereafter.
51601 110200
