[I] _11II m]hV_l=l_[=][e]_[-!

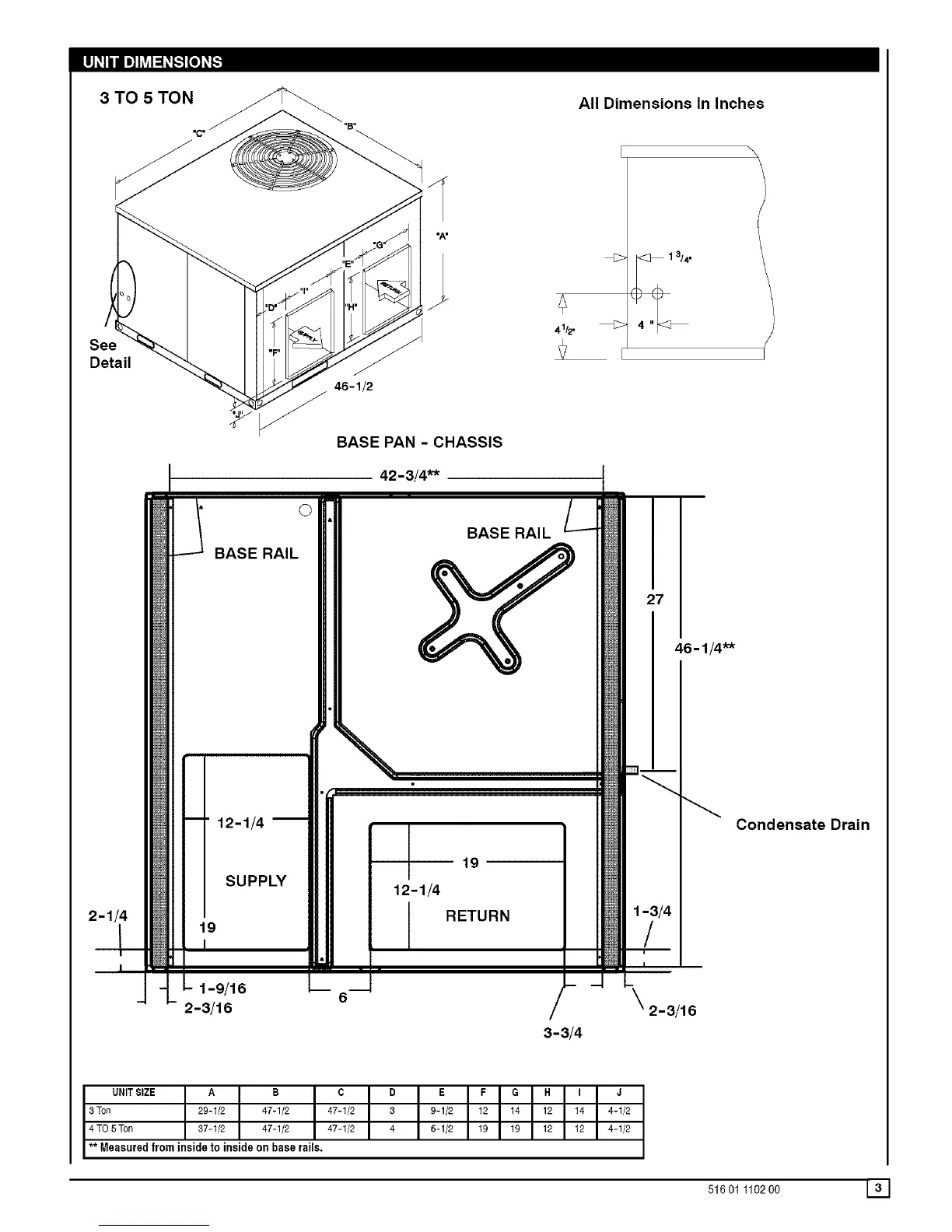

3 TO 5 TON All Dimensions in inches
Detail
46-1/2
41/2 .
I
i
BASE PAN - CHASSIS
42-3/4"*
©
BASE RAIL
SUPPLY
19
I
1-9/16
2-3/16
12-1/4
BASE RAIL
19
RETURN
3-3/4
46-1/4"*
Condensate Drain
2- 3/16
UNITSIZE A B C
3 Ton 29-1/2 47-1/2 47-1/2
4 TO5 Ton 37-1/2 47-1/2 47-1/2
** Measured from inside to inside on base rails.
D
3
4
E F G H I J
9-1/2 12 14 12 14 4-112
6-1/2 19 19 12 12 4-112
51601 110200 [_J
