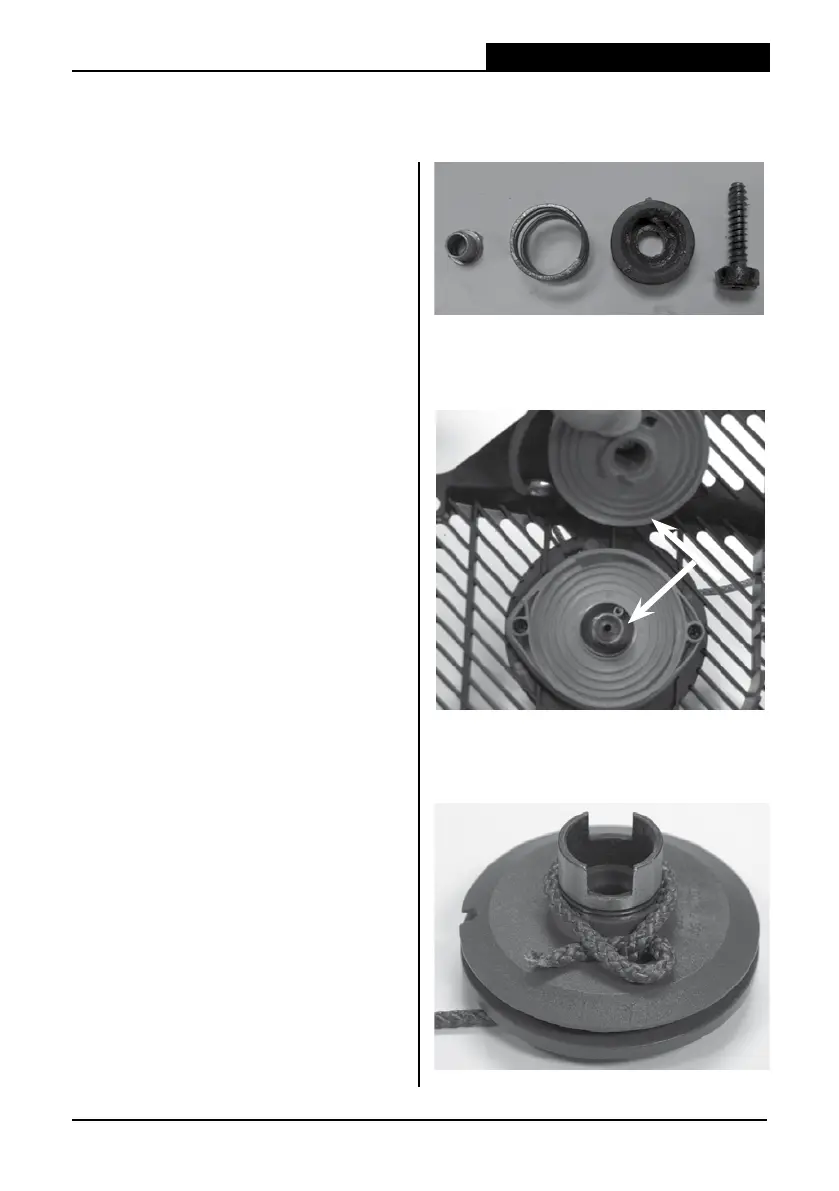

695XL SERVICE MANUAL

9.9

Inspect rope (P/N 544023) and pulley (P/N

544127). Replace if necessary. Note the

orientation of the knot.

9.7

Note the orientation of the parts for

re-installation.

9.8

A. Lift pulley from spring housing. NOTE:

the spring catch and spring hook must

be aligned during installation

(arrows).

B. Remove the two screws holding the

spring housing.

C. Use CAUTION when removing the

spring to prevent the spring from

unwinding.

D. Inspect spring and lubricate with light

oil.

E. Align notch in spring housing with end

of spring.

9. STARTER
