ICS 695XL Service Manual

©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
78

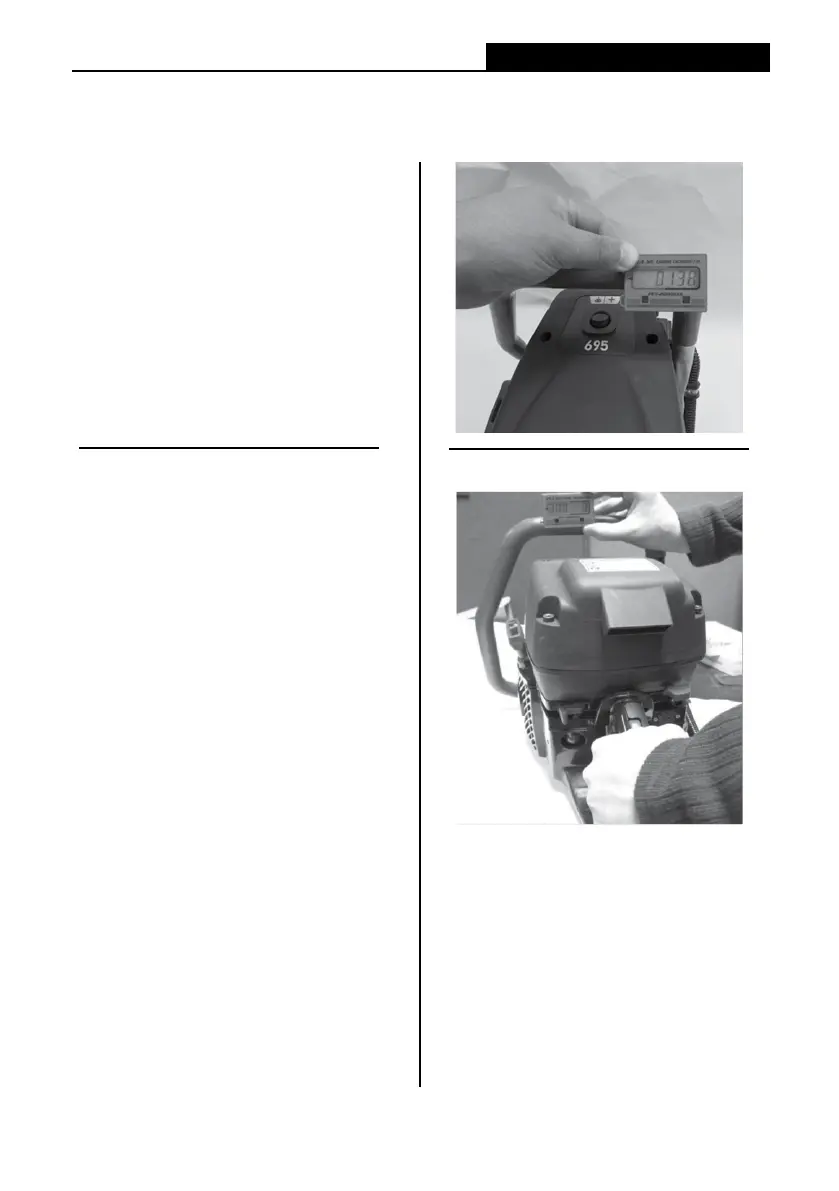

695XL SERVICE MANUAL
22.2
Using the tachometer, check the power
cutter RPM’s at idle.
• Idle speed = 2700 RPM’s +/- 150.
• Make minor adjustments using the
throttle screw.
Using the tachometer, check the power
cutter RPM’s at full throttle.
• Full throttle target = 9300 RPM’s +/-
150.
• Make minor adjustments using the
throttle screw.
Do not hold the power cutter at maximum
RPM for more than 5 seconds.
If the full throttle RPM falls below this
range, turn the H needle clockwise 1/16
of a turn at a time, checking the RPM’s at
each interval.
NOTE: pulse the throttle to stablize the
system.
Once the carburetor is adjusted, install
the chain to the proper tension and
continue normal operations.
22.1
Verify the RPM’s using the tachometer.
Start and warm up the power cutter
NOTE: This is a “no load” tuning
procedure. The side cover must be
securely fastened with a bar and chain.
Water MUST be used, failure to
follow this procedure may result
in personal injury and or damage
to the power cutter.
22. IDLE SPEED ADJUSTMENT
