©2017 ICS - Blount Inc, Specications subject to change without notice. REV19JUNE2017 P/N 598901
77
695XL SERVICE MANUAL

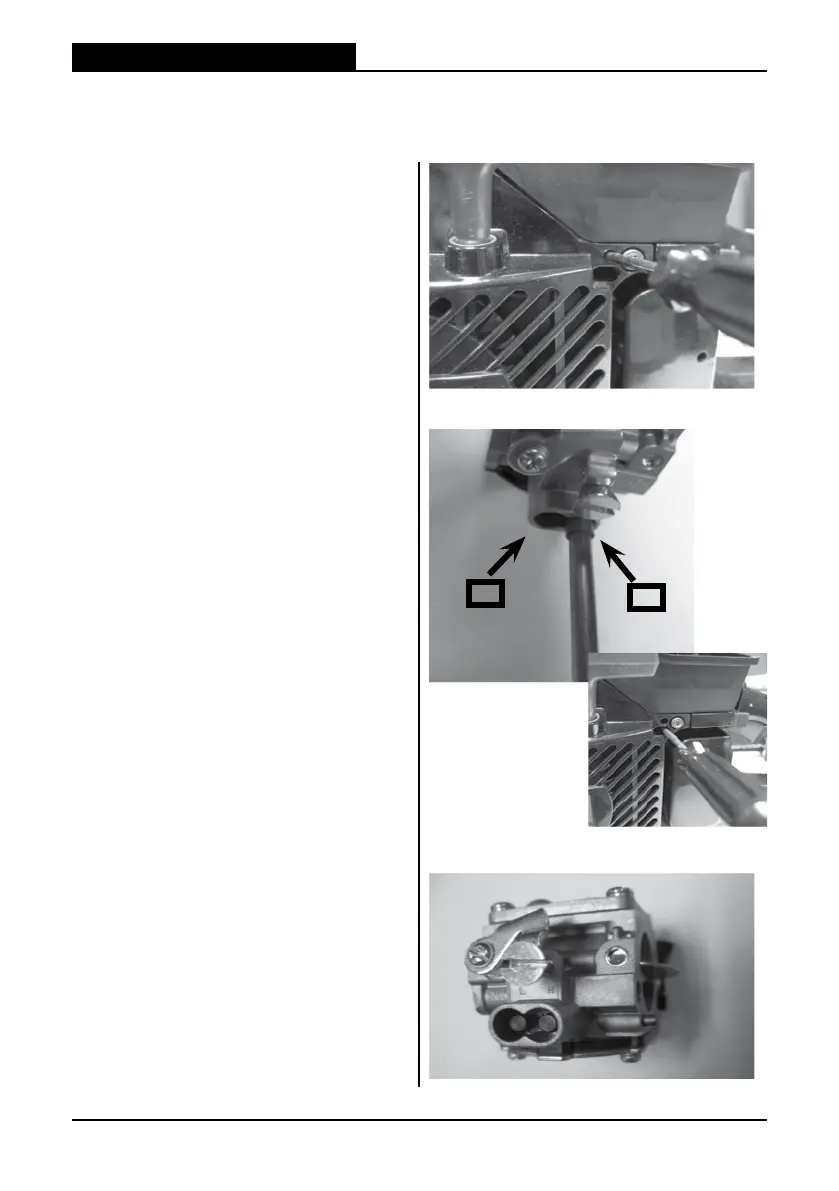

21.4
Throttle screw.
Basic setting:
T = 3 turns from closed.
Used to adjust chain speed at idle.
21.5
Carburetor basic setting:
H= 1 1/2 turns from closed.
L= 1 5/8 turns from closed.
Insert the tuning screw driver into the
crankcase slot. Note the H screw is on
the right as seen in the picture.
21.7
Turn the screws counter clockwise to the
carburetor basic settings.
Carburetor basic setting:
H= 1 1/2 turns from closed.
L= 1 5/8 turns from closed.
21.5a
Turn both the H and the L needle screws
clockwise until they stop.
H
L
21. CARBURETOR TUNING
