695XL SERVICE MANUAL

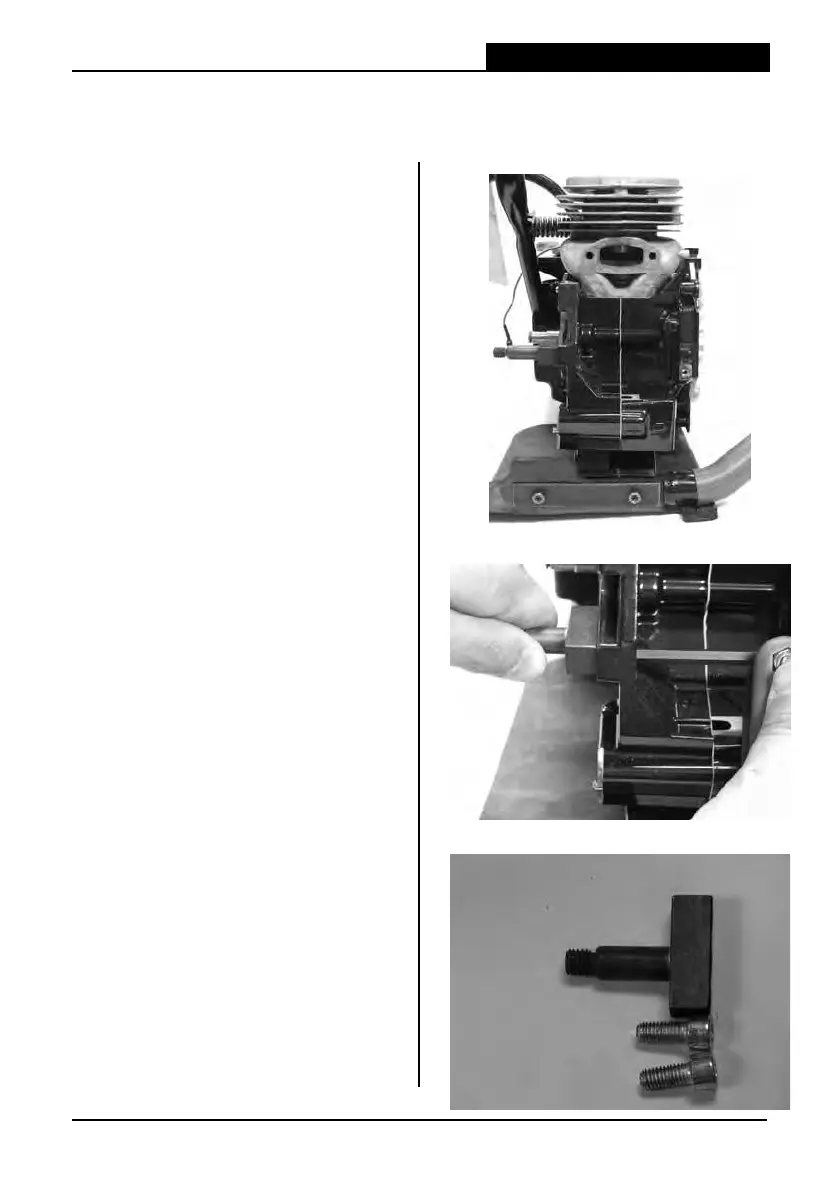

12. GUIDE BAR STUD
12.1
Bar stud removal (P/N 544129).
12.3
Inspect bar stud (P/N 544129).
• Replace if damaged.
• Install in reverse order using
Loctite
®
242.
12.2
Using a 6 mm allen or hex head, remove
(2) bolts holding bar stud.
12. This section covers the removal, inspection and installation of the guide bar stud.
Removal of WallWalker
®
and muer is required. Refer to section 10 if necessary.
